Product Information

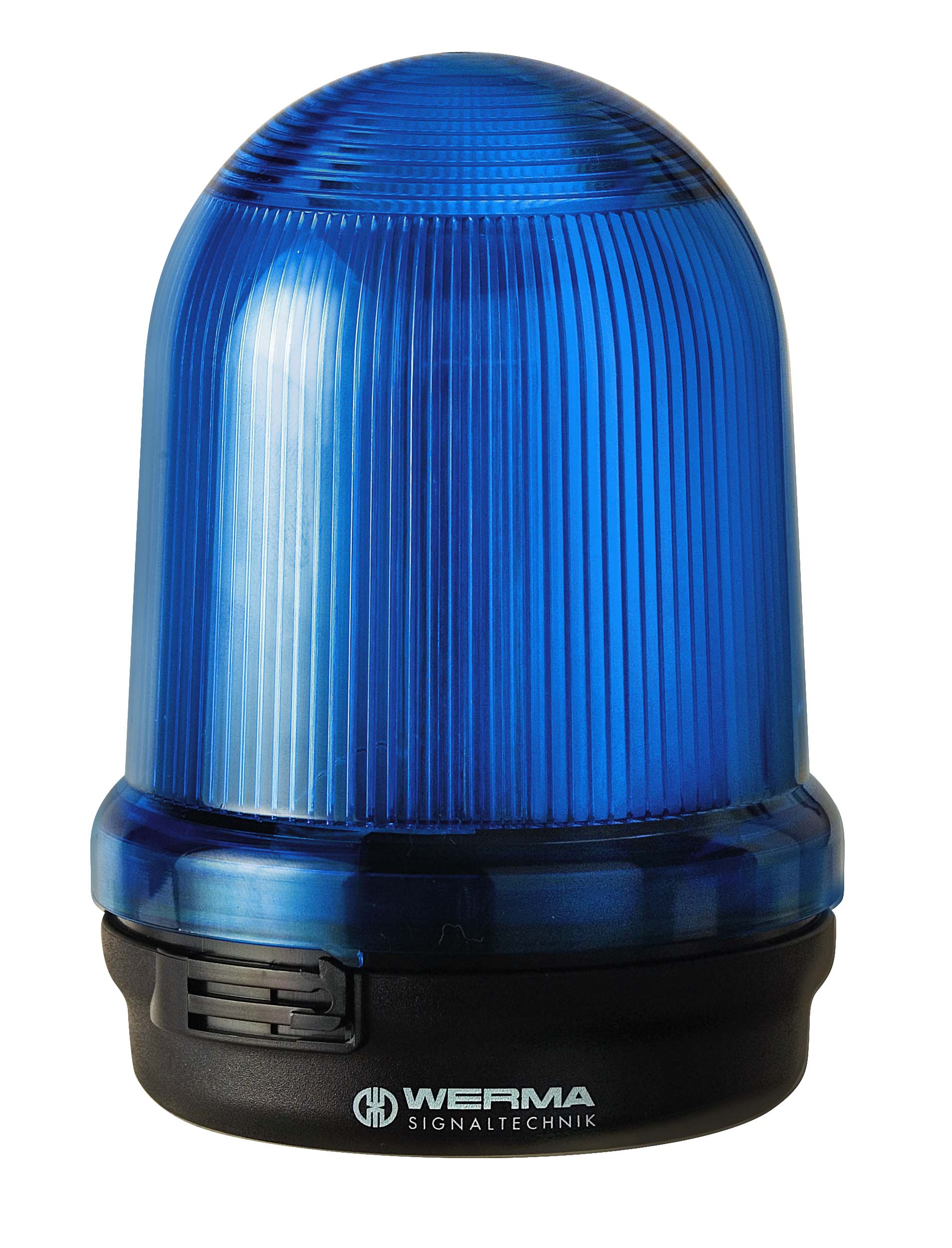

Permanent Beacon BM 12-230VAC/DC BU

Article Number

826.500.00

Type of Fixing

Base mounting

Voltage

12-230V AC/DC

Technical Data

Mechanical Data

• Height: 137.00 mm
• Diameter: 98.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Black
• Dome Colour: Blue
• Protection Category: IP65
• Connection: Insulation-displacement contact
• Cable Entry: Rubber pinch
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cable Entry Minimum: d = 5 mm
• Type of Fixing: Base mounting
• Cable Entry Maximum: d = 7 mm
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 231.00 g
• Product Weight: 187.00 g

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Power Illuminant: max. 15W
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Lamp Fitting/Socket: BA15d
• Service Life Optical: Depends on bulb

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet
• Operating Instructions

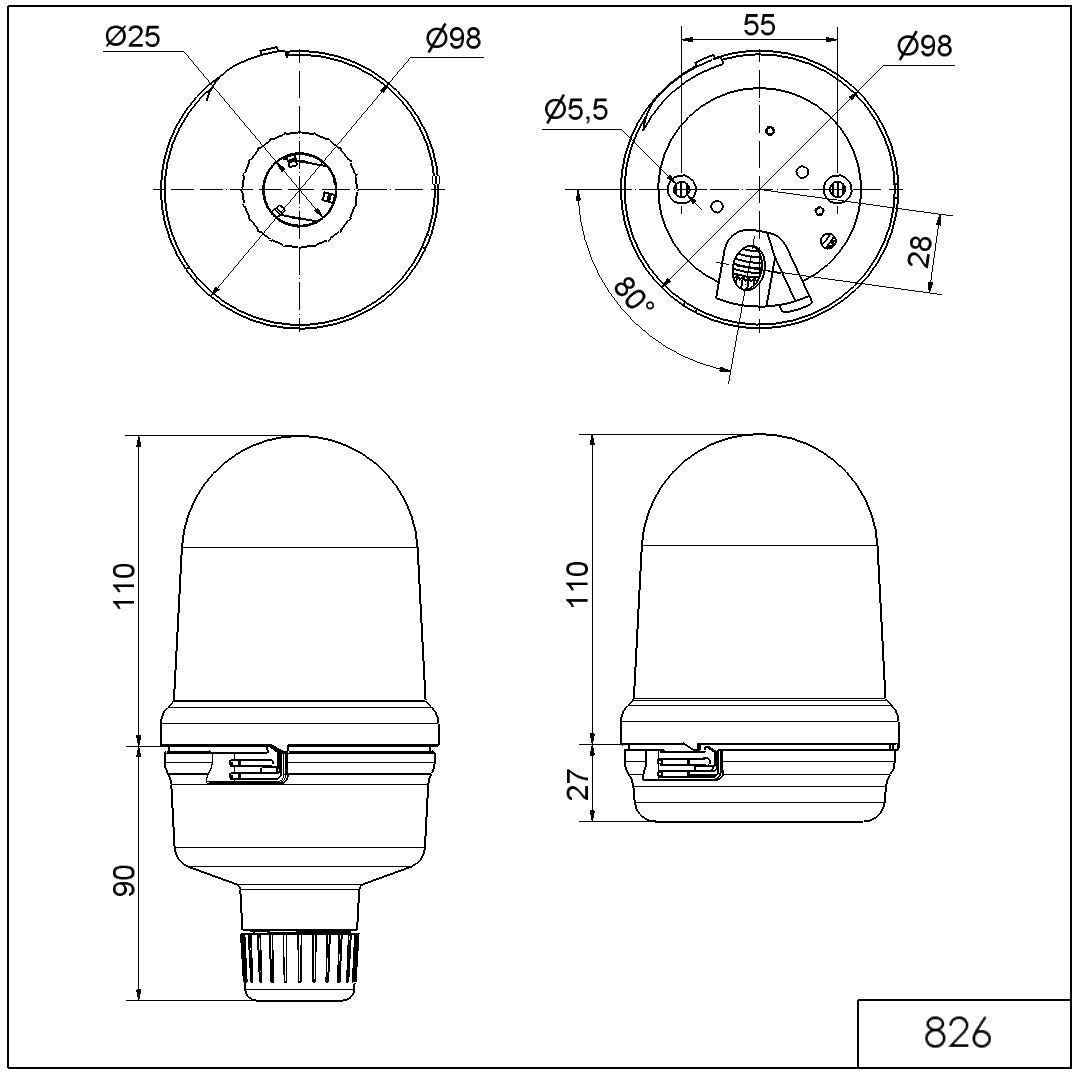

• Dimensional Drawing
