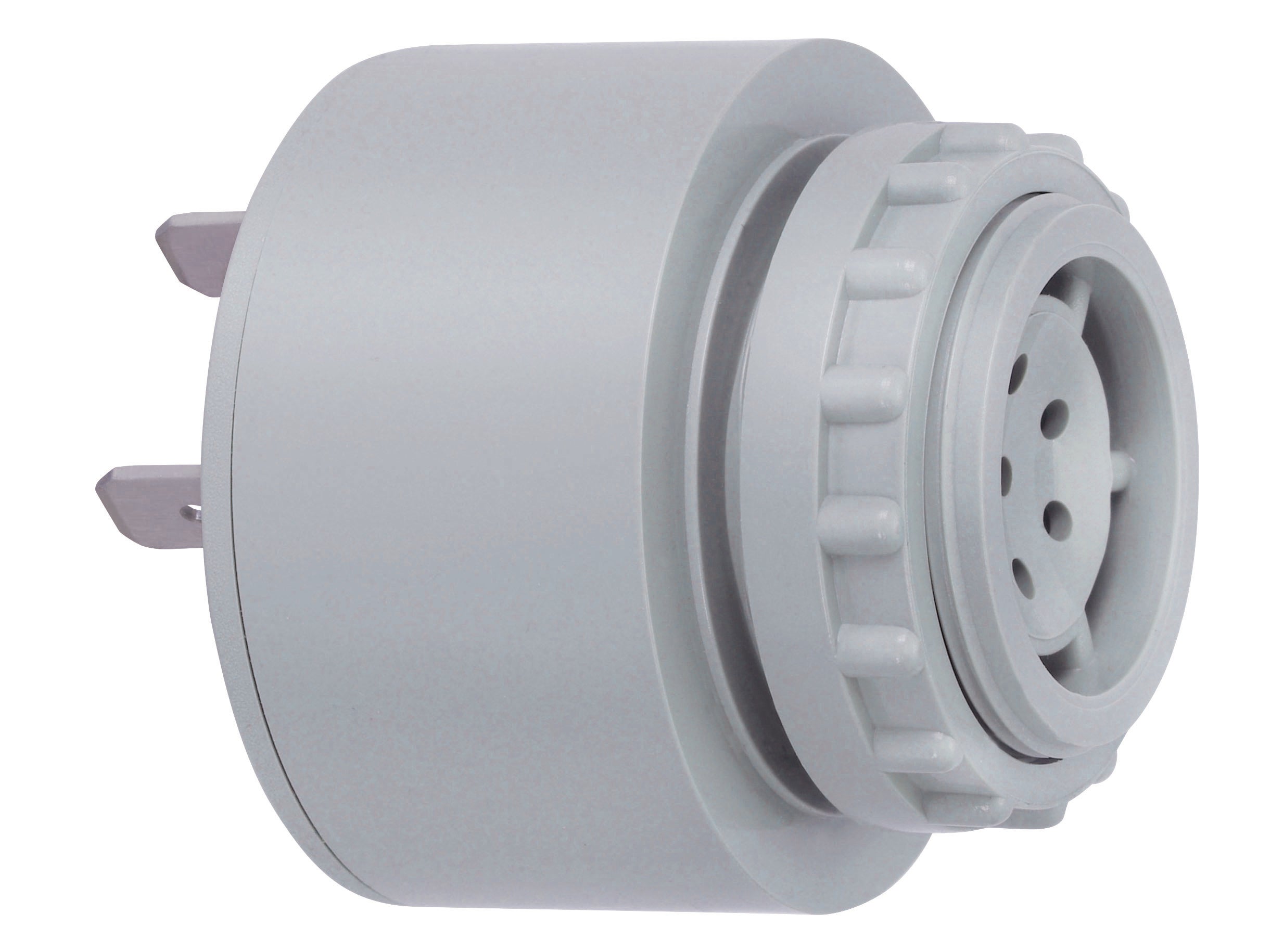

Name: Werma Electronic buzzer, continuous tone, 90dB, 24VAC/DC
Brand: Werma
SKU: 118.068.15

Minimal current consumption reduces operating costs IP 43 with cap With continuous tone

Vendor: Werma

Rubicon Industrial Technology is the exclusive South African distributor for Werma.

Availability: In stock

Product type: Control Panel

Please hurry! Only 14 left in stock

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

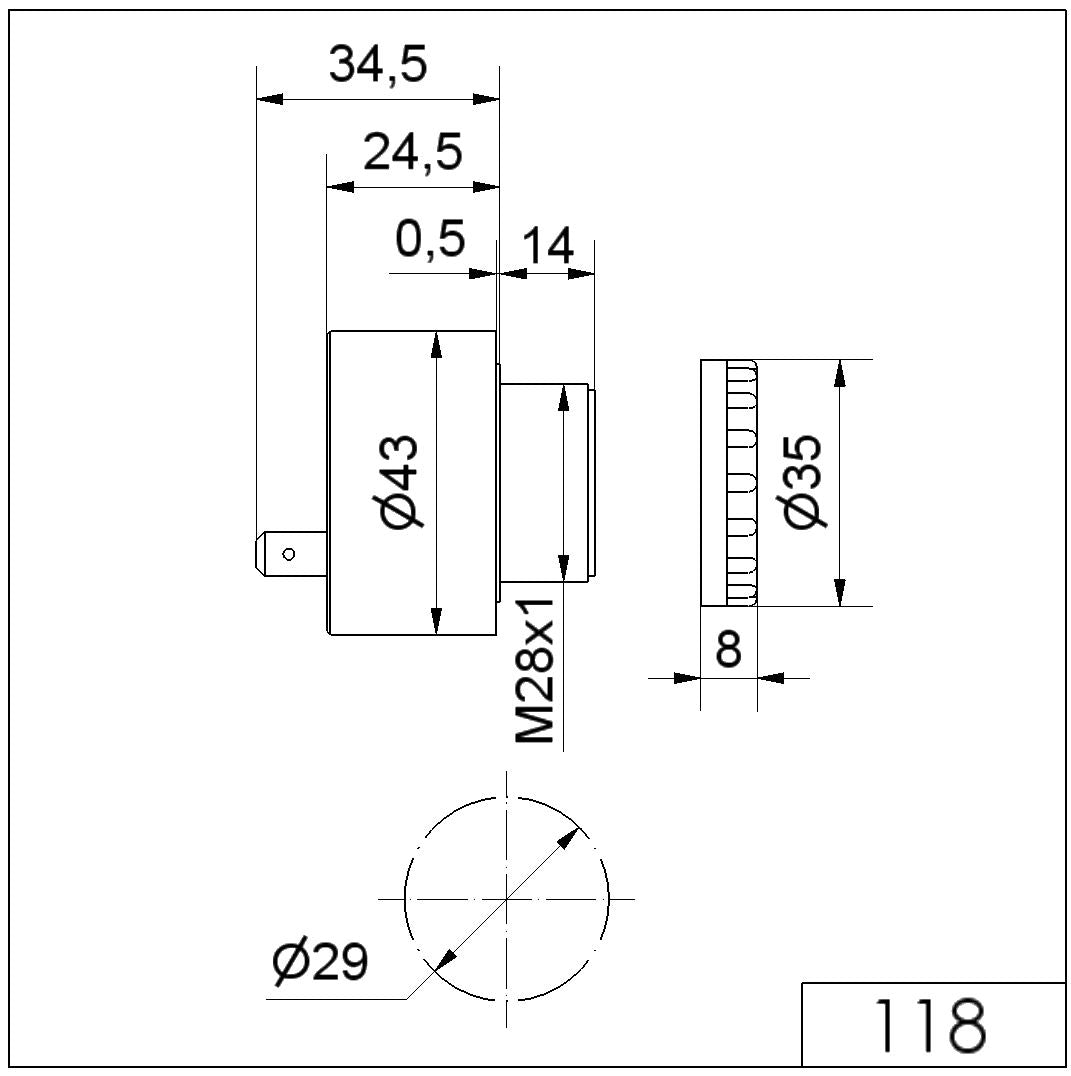

Height	49
Diameter	43
Connection	Flat plug
Materials	PC/ABS
Housing colour	Grey
Protection category	IP30
Type of fixing	Built-in mounting
Weight with packaging	43
Working temperature minimum	0°C
Working temperature maximum	+60°C
Product weight	30
Operating voltage	24V
Operating voltage type	AC/DC
Operating voltage frequency	50Hz
Operating voltage tolerance	+/- 10%
Rated operational voltage	24 VDC
Rated operational current	20
Rated inrush current	50 mA
Protection class	Protection class 2
Pollution degree	2
Conforms with CE	Yes
Conforms with RoHS directive	Yes
WEEE	Yes
Conforms with ATEX-directive	No
Conforms with CCC	No
Conforms with FCC	No
Conforms with ISED	No
Conforms with UL	No
EAC certificate available	No
Conforms with UKCA (Importer)	Yes
Conforms with AS-I	No
Conforms with RoHS CN	No
ICAO Certification	No
Conforms with DNV	No
Conforms with VdS	No
Conforms with TÜV	No
Volume (max) at 1m distance	90 dB(A)
Acoustic signal image	Continuous tone
Audio frequency	2400
Number of tones	1 tone
Acoustic service life	5,000 h maximum

Werma Electronic buzzer, continuous tone, 90dB, 24VAC/DC Part number 118.068.15
