Product Information

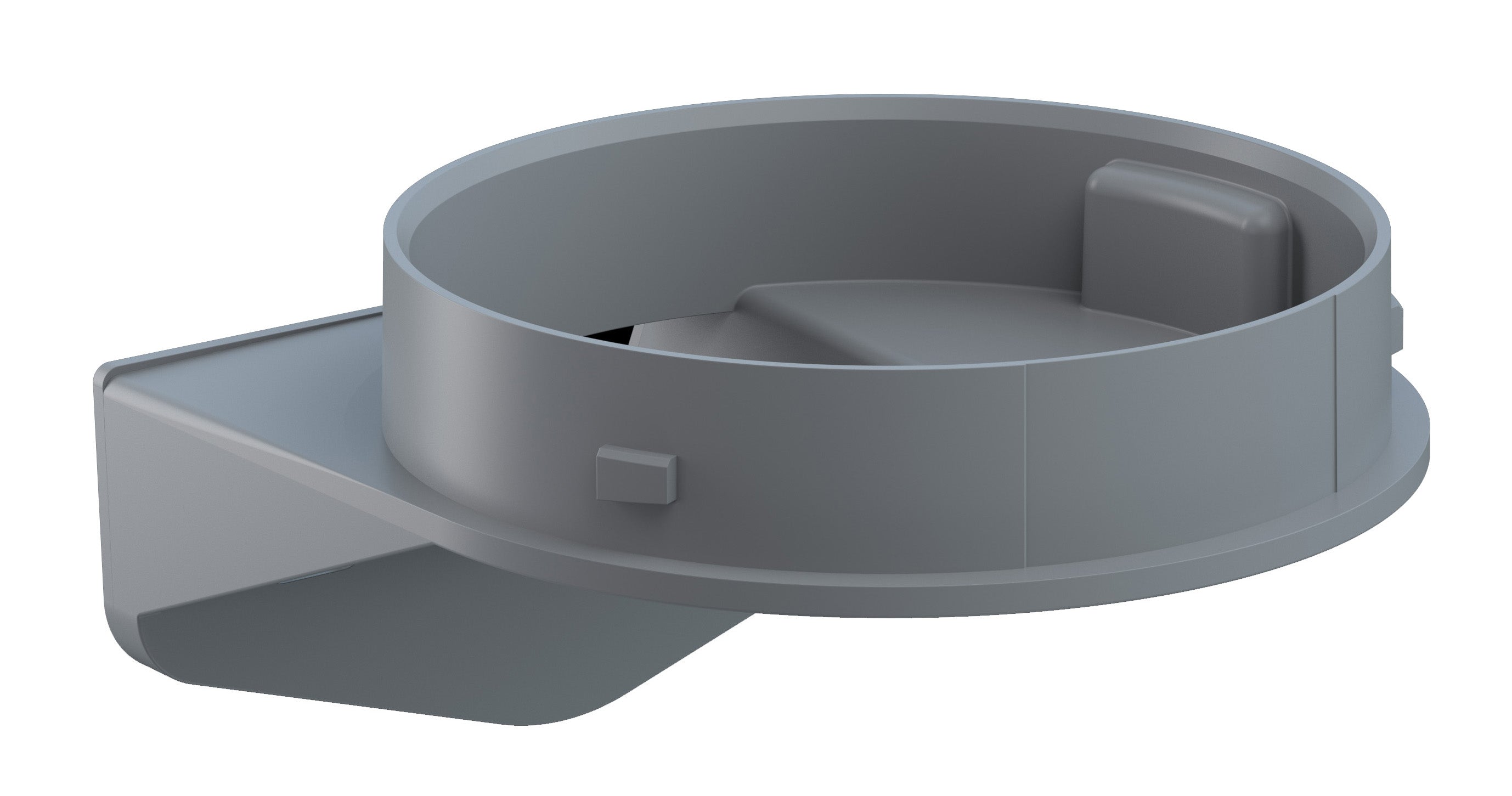

Product Name: Midi Bracket GY

Article Number

261.700.07

Type of Fixing

Wall mounting

Product Info

Bracket for wall-mounting (concealed cable). Accessories for the EvoSIGNAL series (MIDI).

Technical Data

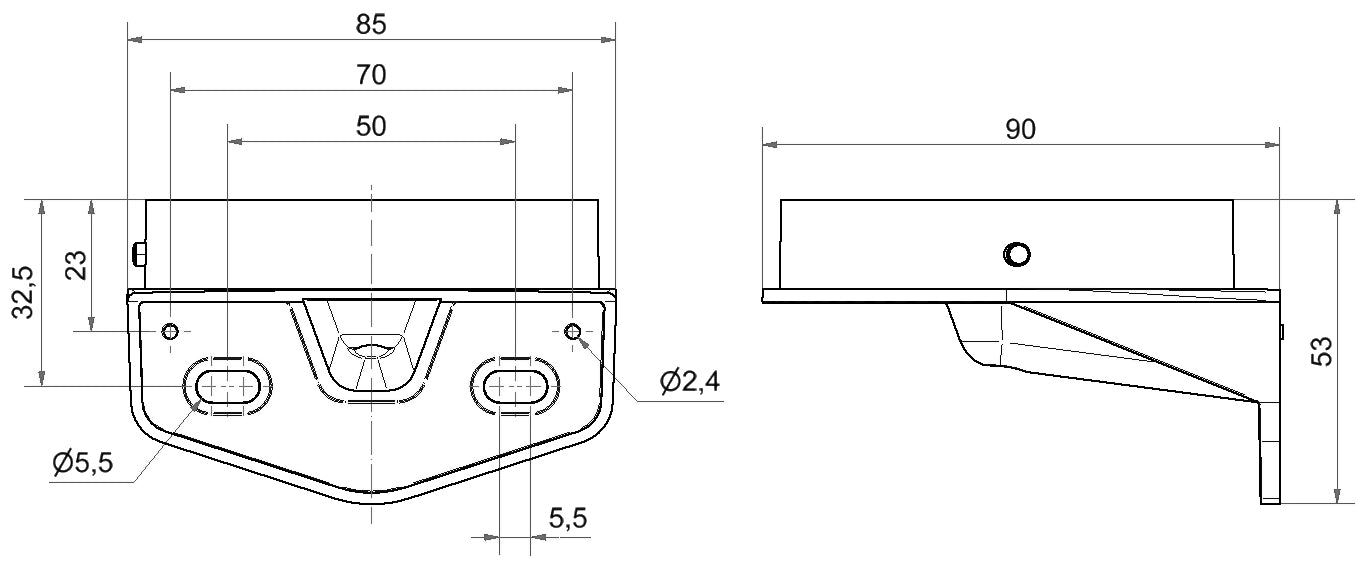

Mechanical Data

• Length: 90.00 mm
• Width: 85.00 mm
• Height: 53.00 mm
• Materials: PC/ABS
• Housing Colour: Grey
• Protection Category: IP66
• Cable Entry: Through hole
• Type of Fixing: Wall mounting
• Working Temperature Minimum: -30°C
• Cable Entry Maximum: d = 9 mm
• Working Temperature Maximum: +60°C
• Weight with Packaging: 54.00 g
• Product Weight: 54.00 g

Electrical Data

• Pollution Degree: 3

Authorisation Data

• Conforms with CE: No
• Conforms with RoHS Directive: No
• WEEE: No
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): No
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
