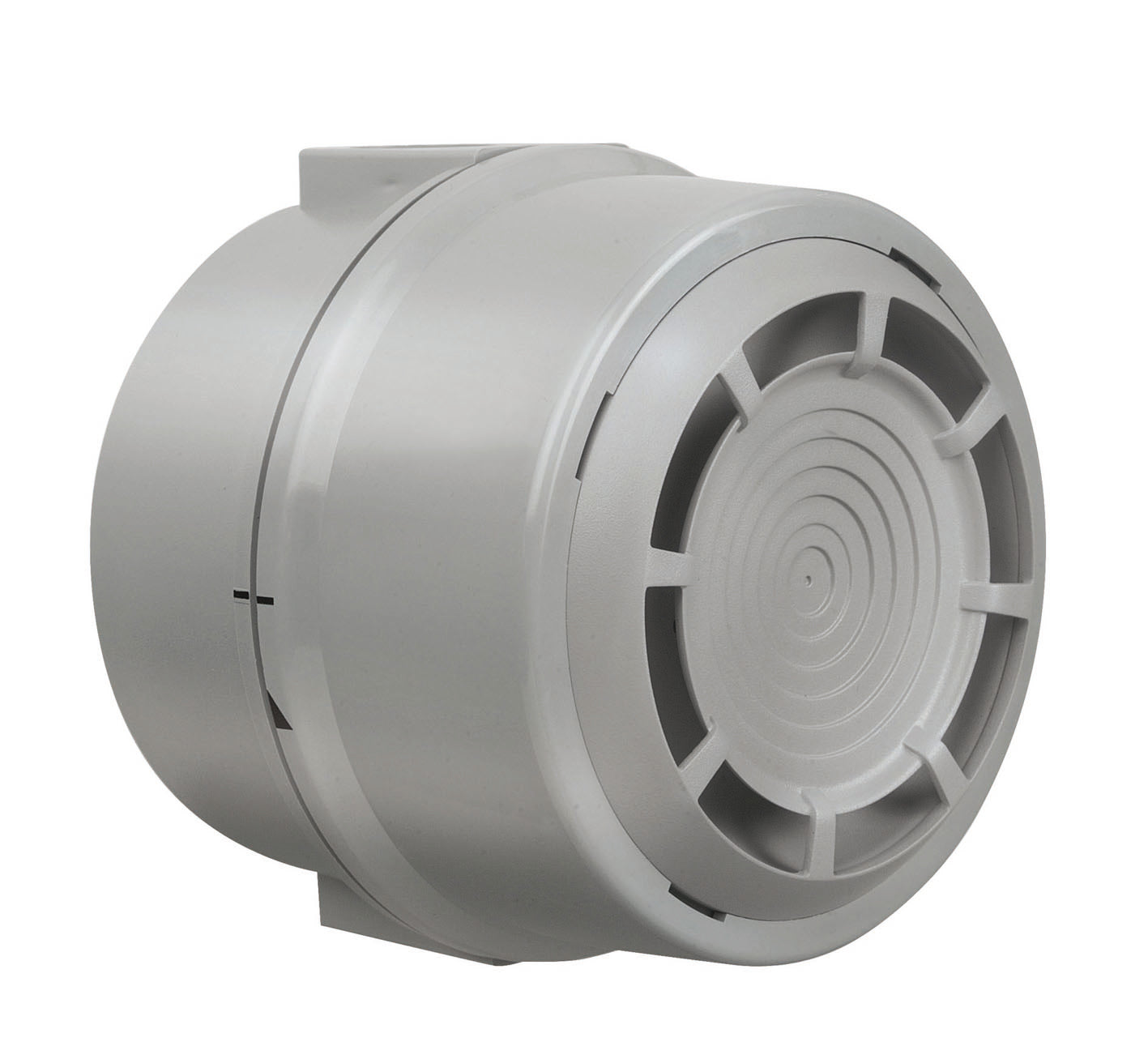

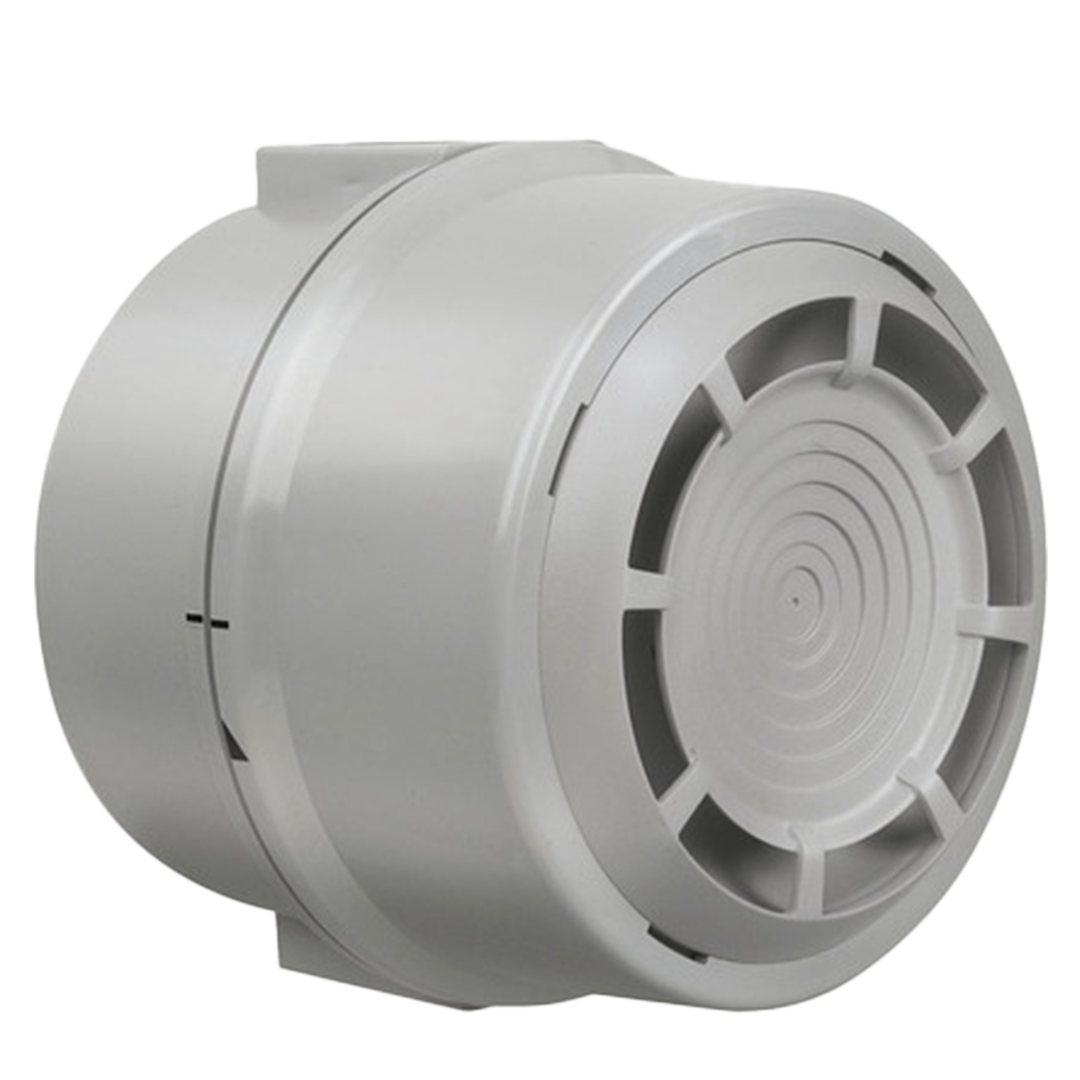

Werma Multi-t.sounder WM 32 tne 24VDC GY, Wall mounting Part number 190.000.55

Werma's Multi-t.sounder 24V DC is equipped with 32 tones for a diverse range of applications. Adjustable sound output to 110 dB. Application-specific external triggering of 3 tones. As well as a fixing bracket for easy combination with (LED) permanent beacon/traffic light 890 (Accessories)
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
Werma's Multi-t.sounder 24V DC is equipped with 32 tones for a diverse range of applications. Adjustable sound output to 110 dB. Application-specific external triggering of 3 tones. As well as a fixing bracket for easy combination with (LED) permanent beacon/traffic light 890 (Accessories)
Specifications
Specifications
x

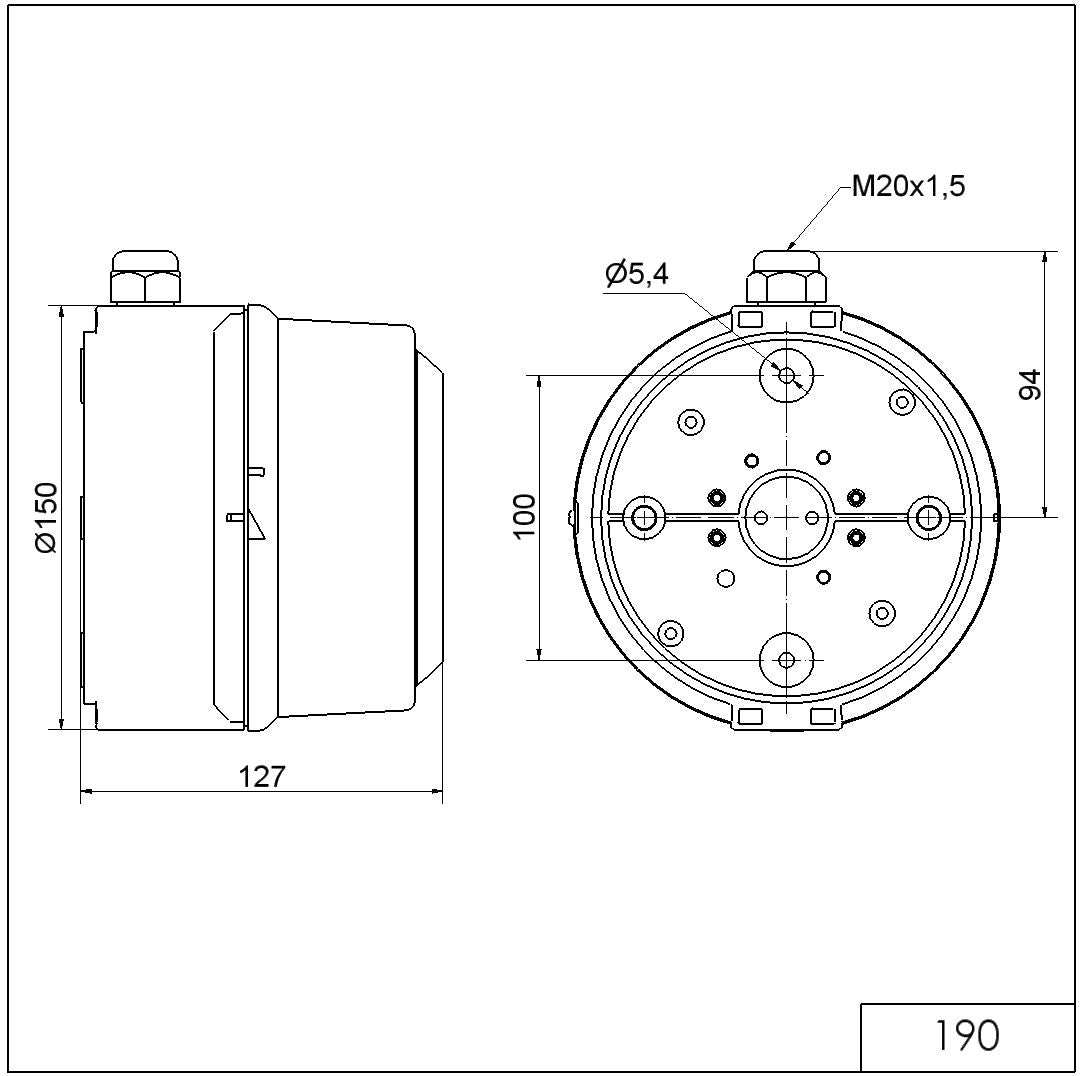

Height169
Diameter150
Width127
ConnectionScrew terminals
MaterialsPC/ABS
cross-sectional area maximum1,50mm² / 16AWG
Housing colourGrey
Protection categoryIP65
cross-sectional area minimum0,50mm² / 20AWG
Tension reliefPresent (conforms to VDE)
Cable entryRubber pinch; Screwed cable gland
Cable entry minimumd = 6 mm
Cable entry maximumd = 12 mm
Type of fixingWall mounting
Weight with packaging575
Working temperature minimum-30°C
Working temperature maximum+50°C
Product weight506
Operating voltage24V
Operating voltage typeDC
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current180
Rated inrush current500 mA
Protection classProtection class 2
Pollution degree3
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with CCCNo
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULNo
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with CMIMNo
Conforms with RoHS CNNo
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
Volume (max) at 1m distance110 dB(A)
Acoustic signal imageMulti-tone
Number of tones32 tone
Acoustic service life5,000 h maximum
Documents
Documents
x
Download Datasheet
