Product Information

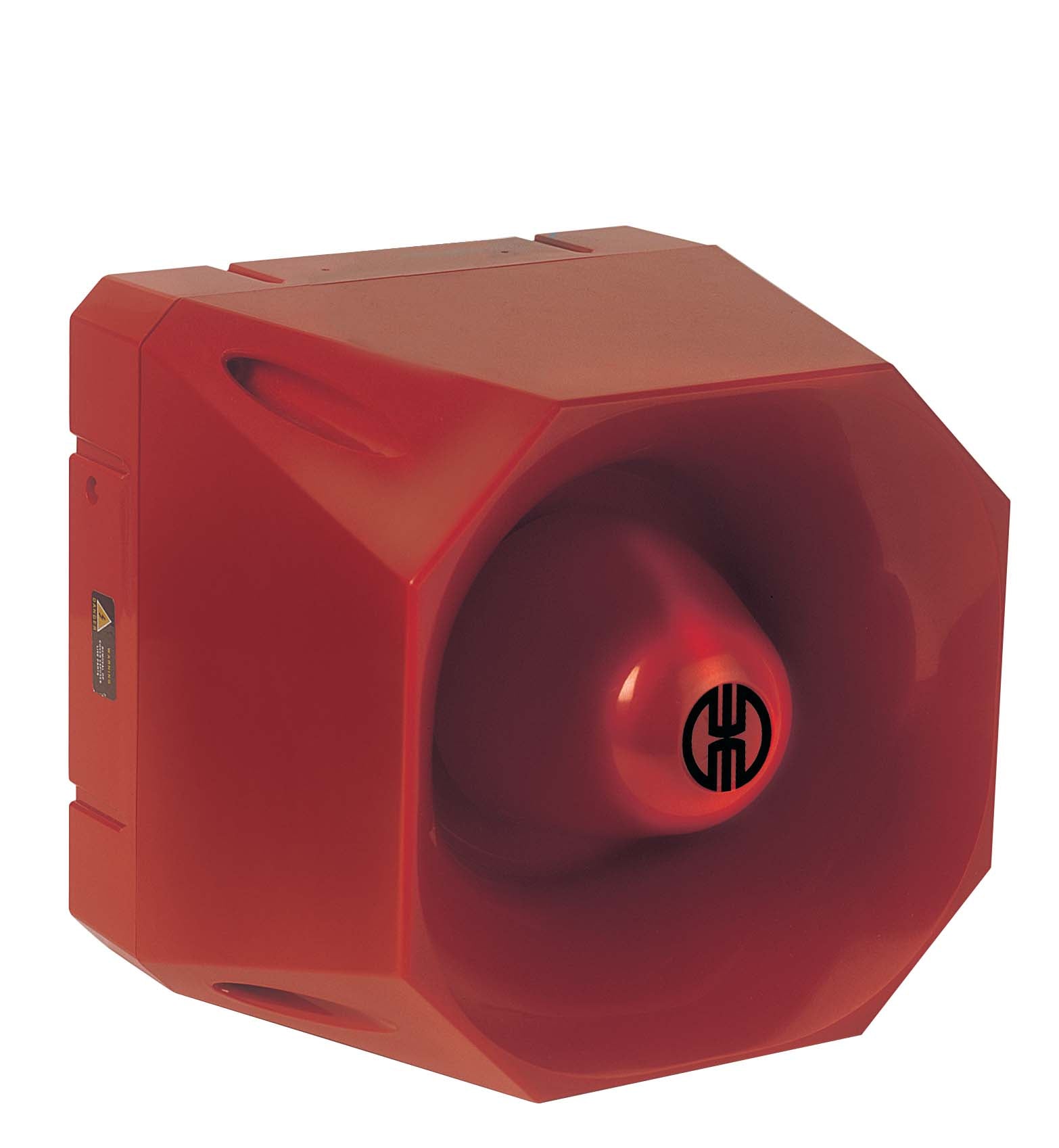

Multi-t.sounder WM 42 tne 115-230VAC RD

Article Number

142.000.68

Type of Fixing

Wall mounting

Choose a Voltage

• 18-30V DC
• 115-230V AC

Product Info

Multi-tone siren with adjustable volume and tones

• Loudness adjustable for specific applications up to 120 dB
• 42 tones for different applications
• 3 tones externally controllable
• High protection class IP 66

Technical Data

Mechanical Data

• Length: 155.000 mm
• Width: 168.000 mm
• Height: 168.000 mm
• Materials: PC/ABS
• Housing Colour: Red
• Protection Category: IP66
• Connection: Screw terminals
• Cross-sectional Area Maximum: 2.50 mm² / 14 AWG
• Cable Entry: Screwed cable gland
• Type of Fixing: Wall mounting
• Cable Entry Minimum: d = 8 mm
• Working Temperature Minimum: -25°C
• Cable Entry Maximum: d = 12 mm
• Working Temperature Maximum: +75°C
• Weight with Packaging: 2176.00 g
• Product Weight: 2013.00 g
• Tension Relief: Present (conforms to VDE)

Electrical Data

• Operating Voltage: 115-230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz at 230V; 60Hz at 115V
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 65.000000
• Isolation Voltage: Ui = 250V; Uimp = 2.500V
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Audible Data

• Volume (max) at 1m distance: 120.0 dB (A)
• Acoustic Signal Image: Multi-tone
• Number of Tones: 42 tones
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.20 MB)
• Operating Instructions (0.59 MB)

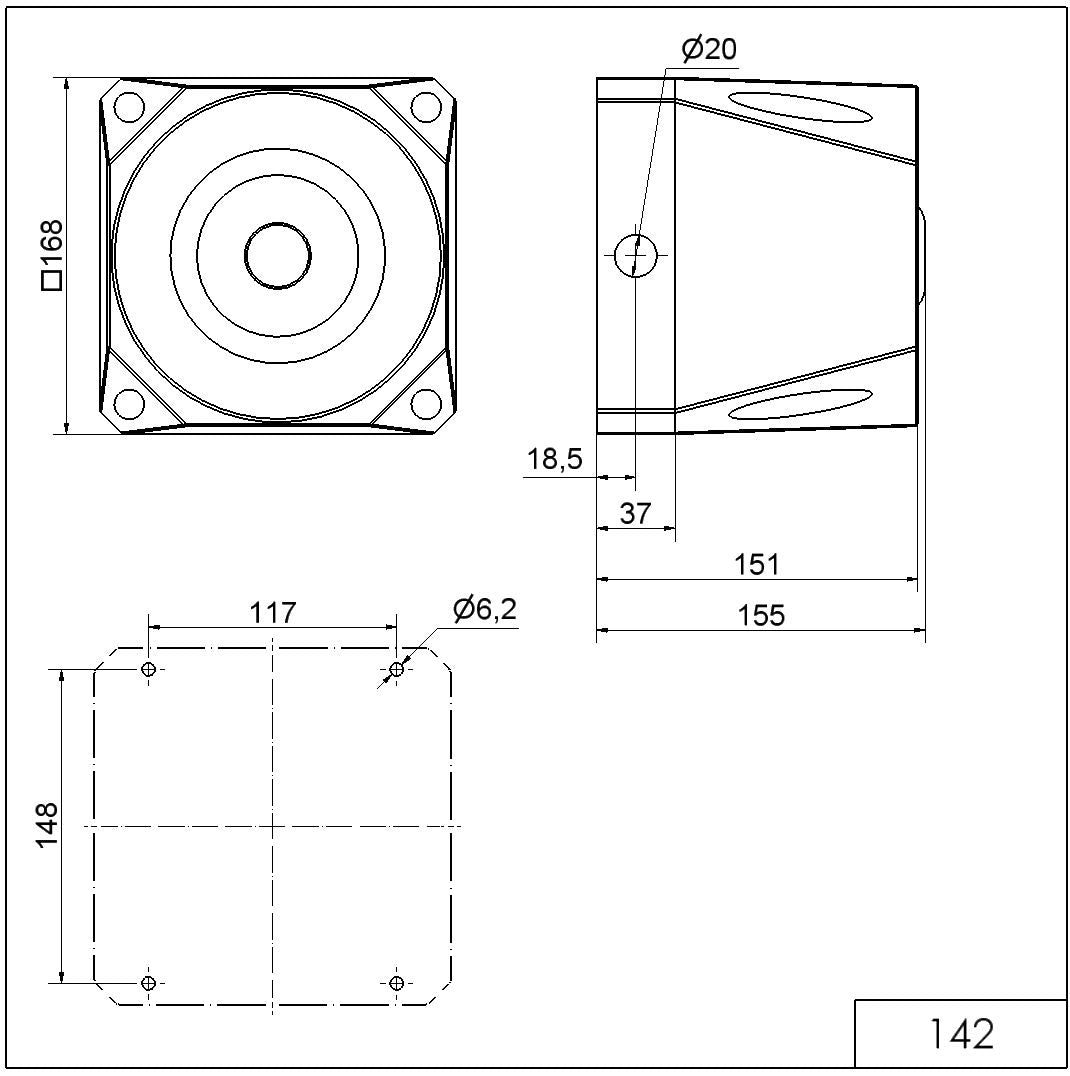

• Dimensional Drawing (0.10 MB)
• CAD Model STP (16.88 MB)
