Product Information

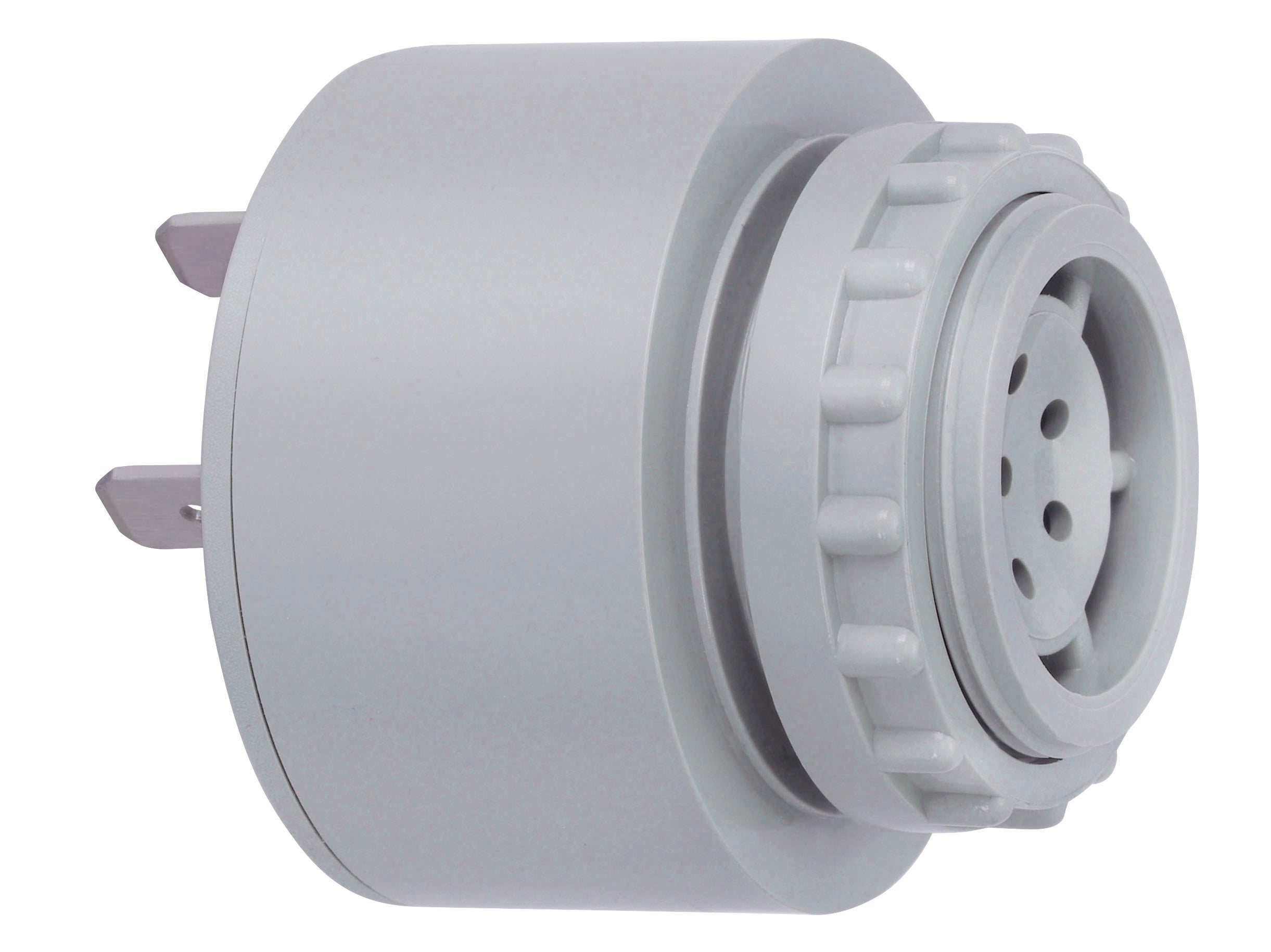

Electr. Buzzer EM Contin. tone 12VDC GY

Article Number

118.068.14

Type of Fixing

Built-in mounting

Choose a Voltage

• 12V DC
• 24V AC/DC
• 48V AC/DC
• 115V AC/DC
• 230V AC

Product Info

Minimal current consumption reduces operating costs

• IP 43 with cap
• With continuous tone

Technical Data

Mechanical Data

• Height: 49.00 mm
• Diameter: 43.00 mm
• Materials: PC/ABS
• Housing Colour: Grey
• Weight with Packaging: 44.00 g
• Product Weight: 32.00 g
• Protection Category: IP30
• Connection: Flat plug
• Type of Fixing: Built-in mounting
• Working Temperature Minimum: 0°C
• Working Temperature Maximum: +60°C

Electrical Data

• Operating Voltage: 12V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 12 VDC
• Rated Operational Current: 20.00 mA
• Rated Inrush Current: < 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 2

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with AS-I: No
• Conforms with UKCA (Importer): Yes
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with TÜV: No
• Conforms with VdS: No

Audible Data

• Volume (max) at 1m distance: 90.0 dB (A)
• Acoustic Signal Image: Continuous tone
• Audio Frequency: 2400.00 Hz
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.18 MB)

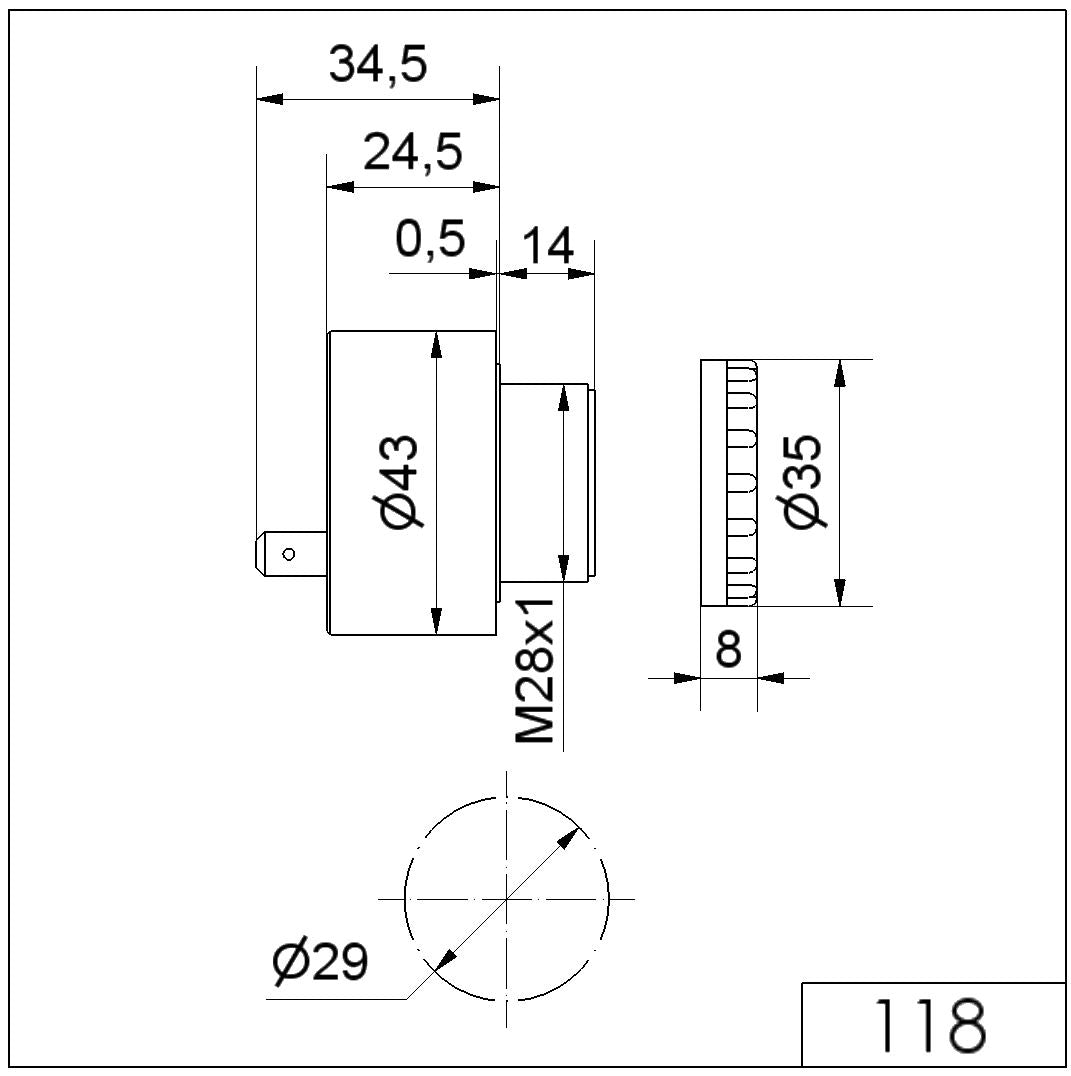

• Dimensional Drawing (0.07 MB)
• CAD Model STP (2.02 MB)
