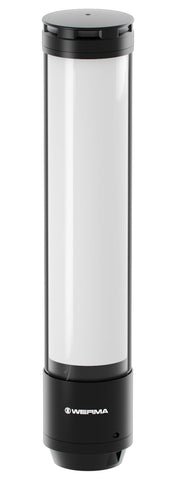

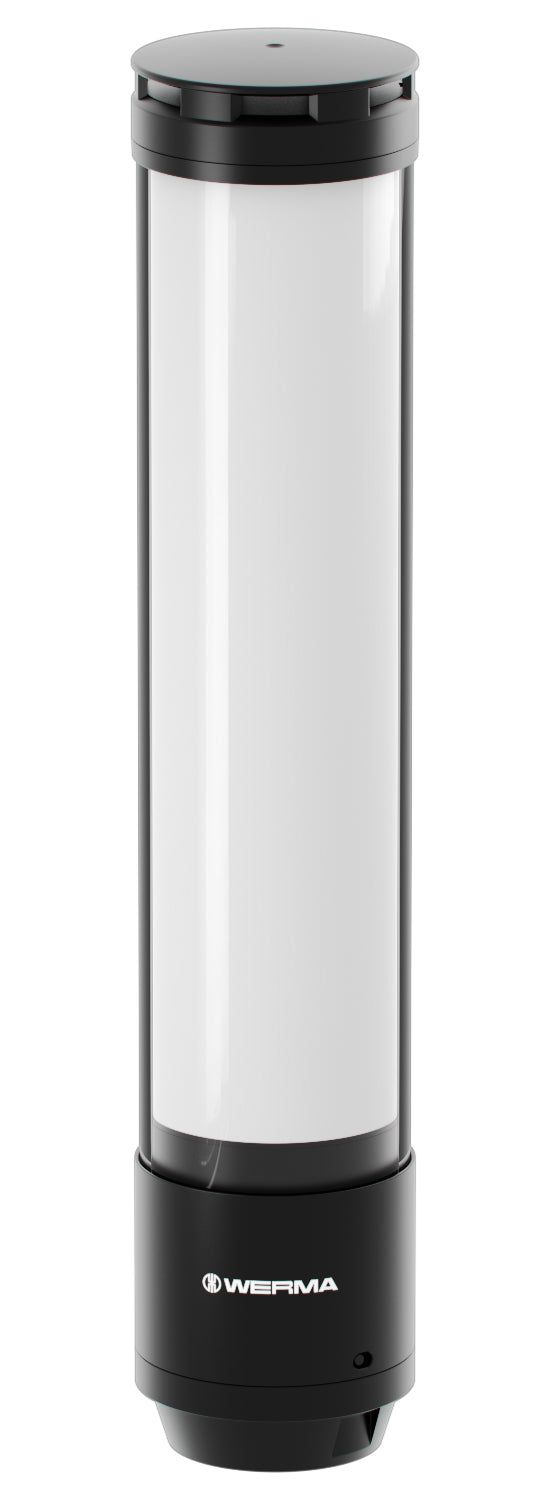

Werma eSIGN Modular signal tower with siren, 15 segments, 24V Part number 657.600.55

Product Information

Article Number: 657.600.55

Type of fixing: Base mounting; Tube mounting

Product Info

An electronically modular signal tower that sets new standards in terms of visibility, individuality and efficiency.

• Fulfills Air Cleanliness Class 2 for Cleanroom applications
• Full-surface signalling with clear and unmistakable light effects
• Versatile customisation options with different modes and light
• UL Type 4X ensures resistance to UV radiation and environmental conditions
• Classic signal tower indication in individual tiers
• Autoscale mode for full-surface signalling and optimum visibility
• Variable filling level indication from 0 to 100%
• Individual triggering to suit your requirements

Technical Data

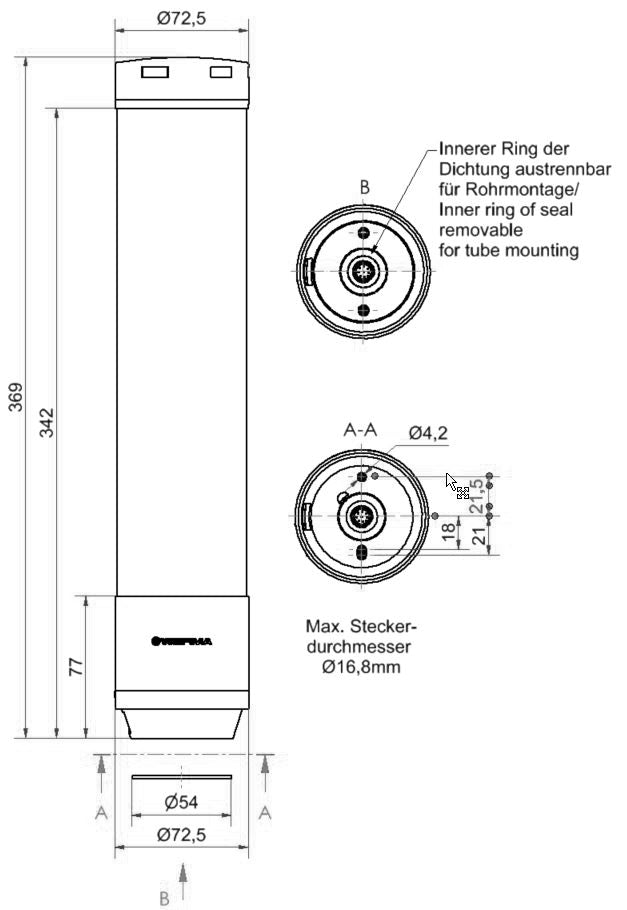

Mechanical Data

• Height: 372 mm
• Diameter: 72 mm
• Materials: PC
• Housing colour: Black
• Dome colour: Translucent
• Protection category: IP66; IP69K
• Connection: M12 plug 8-pole
• Type of fixing: Base mounting; Tube mounting
• Working temperature minimum: -30°C
• Working temperature maximum: +60°C
• Weight with packaging: 849 g
• IK-Code (IEC 62262): IK08
• Product weight: 792 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: DC
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 620 mA
• Rated inrush current: 800 mA
• Protection class: Protection class 3
• Pollution degree: 3
• Overvoltage category: I
• Connectivity: Digital entrance; USB
• Isolation voltage: Ui = 50V / Uimp = 330V
• Request to external PSU: SELV/PELV

Optical Data

• Light source: LED
• Optical signal image: Blink; Double flash; Flash; Permanent; Revolving; Triple flash
• Blink frequency: Configurable
• Service life optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 4/4X/12/13
• Conforms with UKCA (Importer): Yes
• MTTF-value [years]: 31

Audible Data

• Volume (max) at 1m distance: 105 dB
• Acoustic signal image: Multi-tone
• Number of tones: 10 tones
• Acoustic service life: 5,000 h minimum
