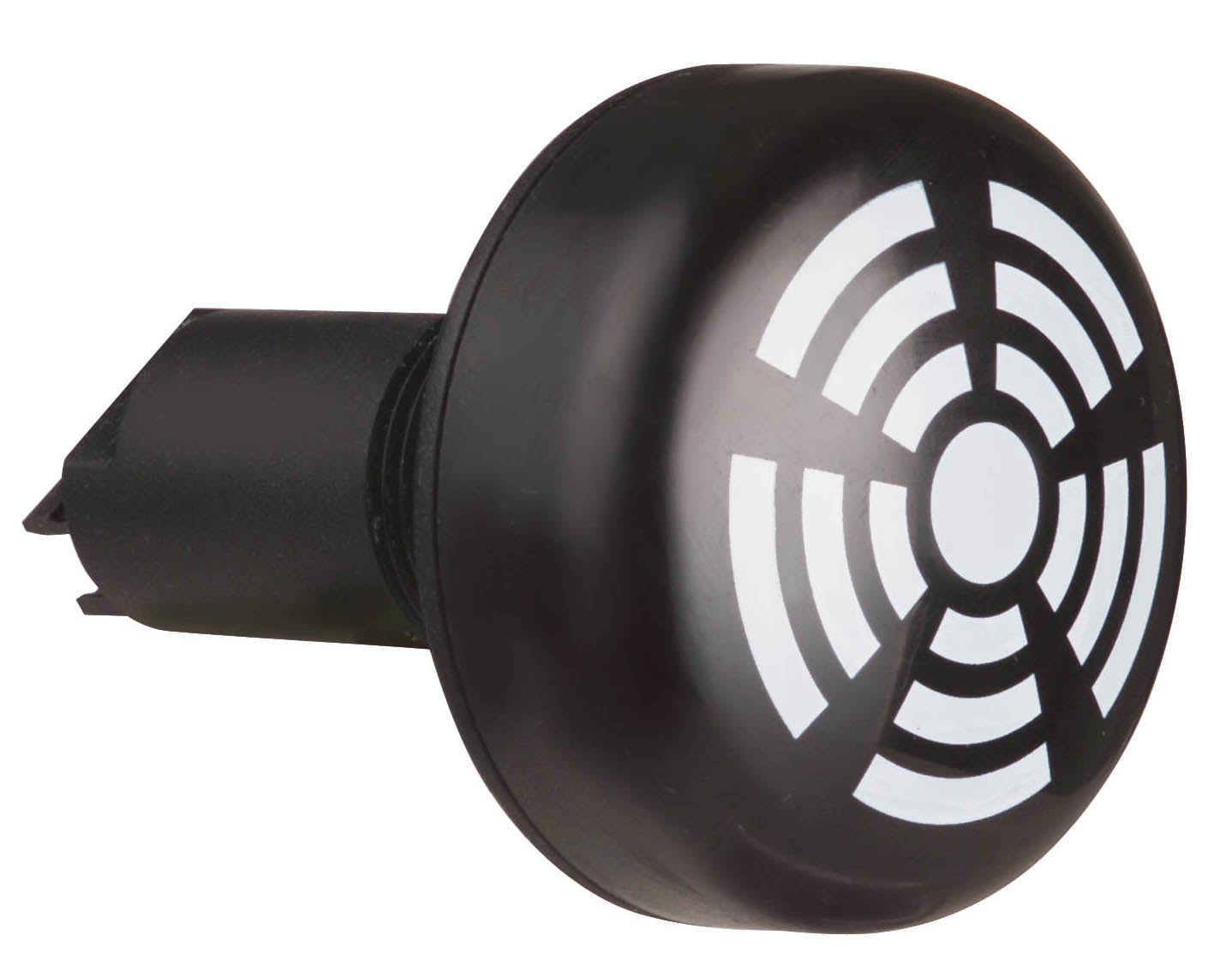

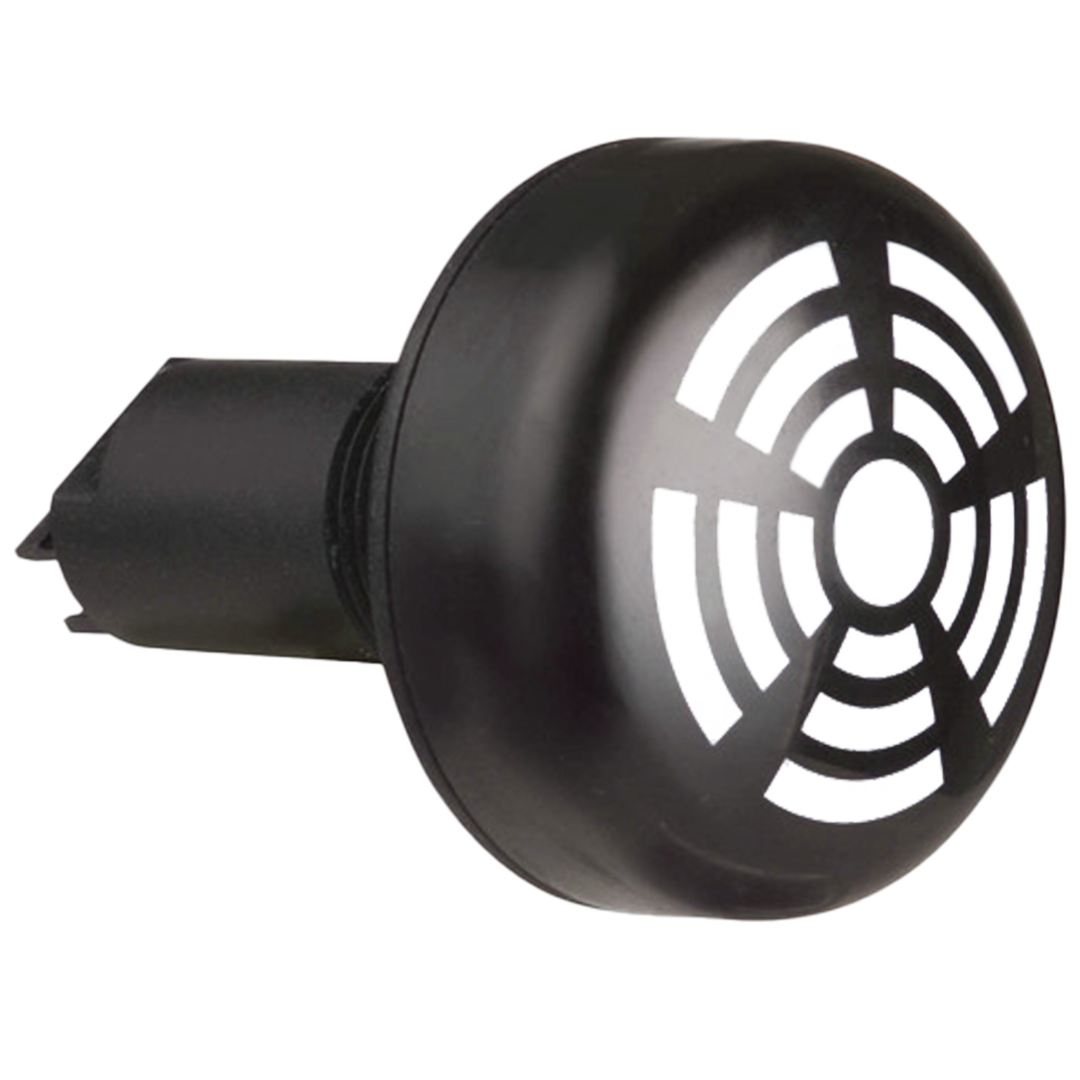

Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC
Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC Werma
Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC
Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC Werma
Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC
Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC

Werma Electronic buzzer, continuous/pulse tone, 80dB, 24VDC Part number 111.000.55

Werma's Electronic buzzer EM Contin/pulse 24V DC is designed for the 22.5 mm panel and switchgear programme. For further installation ease, the connection is achieved via a plug. Positive and negative control logic. As well as a continuous or pulse tone can be triggered externally.
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: In stock
Product type: Control Panel
Please hurry! Only 3 left in stock
Description
Description
x
Werma's Electronic buzzer EM Contin/pulse 24V DC is designed for the 22.5 mm panel and switchgear programme. For further installation ease, the connection is achieved via a plug. Positive and negative control logic. As well as a continuous or pulse tone can be triggered externally.
Specifications
Specifications
x

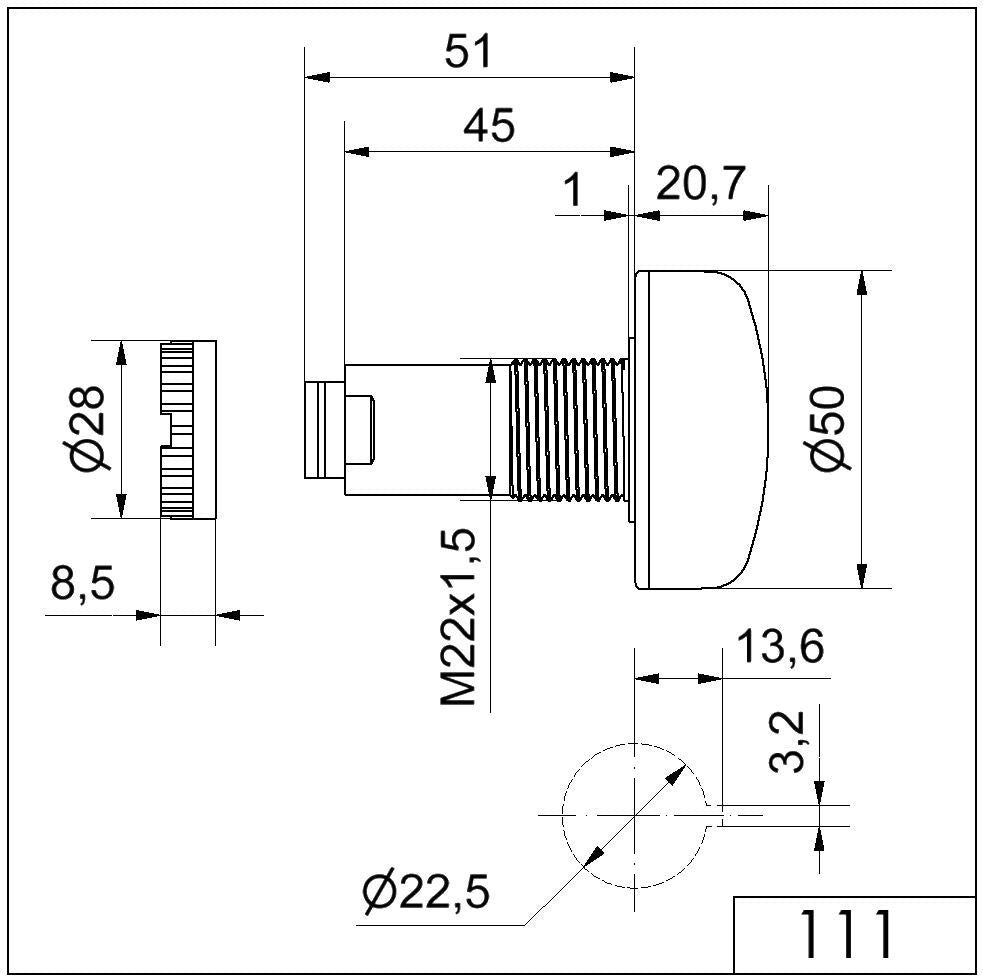

Height72
Diameter50
ConnectionScrew terminals
MaterialsPC; PC/ABS
cross-sectional area maximum1,50mm² / 16AWG
Housing colourBlack
Protection categoryIP65
Type of fixingBuilt-in mounting
Weight with packaging50
Working temperature minimum-20°C
Working temperature maximum+50°C
Product weight40
Operating voltage24V
Operating voltage typeDC
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current25
Rated inrush current350 mA
Protection classProtection class 2
Pollution degree3; In the connection area: 2
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with CCCNo
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULNo
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with RoHS CNNo
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
Volume (max) at 1m distance80,0 dB (A)
Acoustic signal imageContinuous tone; Pulse tone
Audio frequency2800
Acoustic service life5,000 h maximum
Documents
Documents
x
Download Datasheet
