Product Information

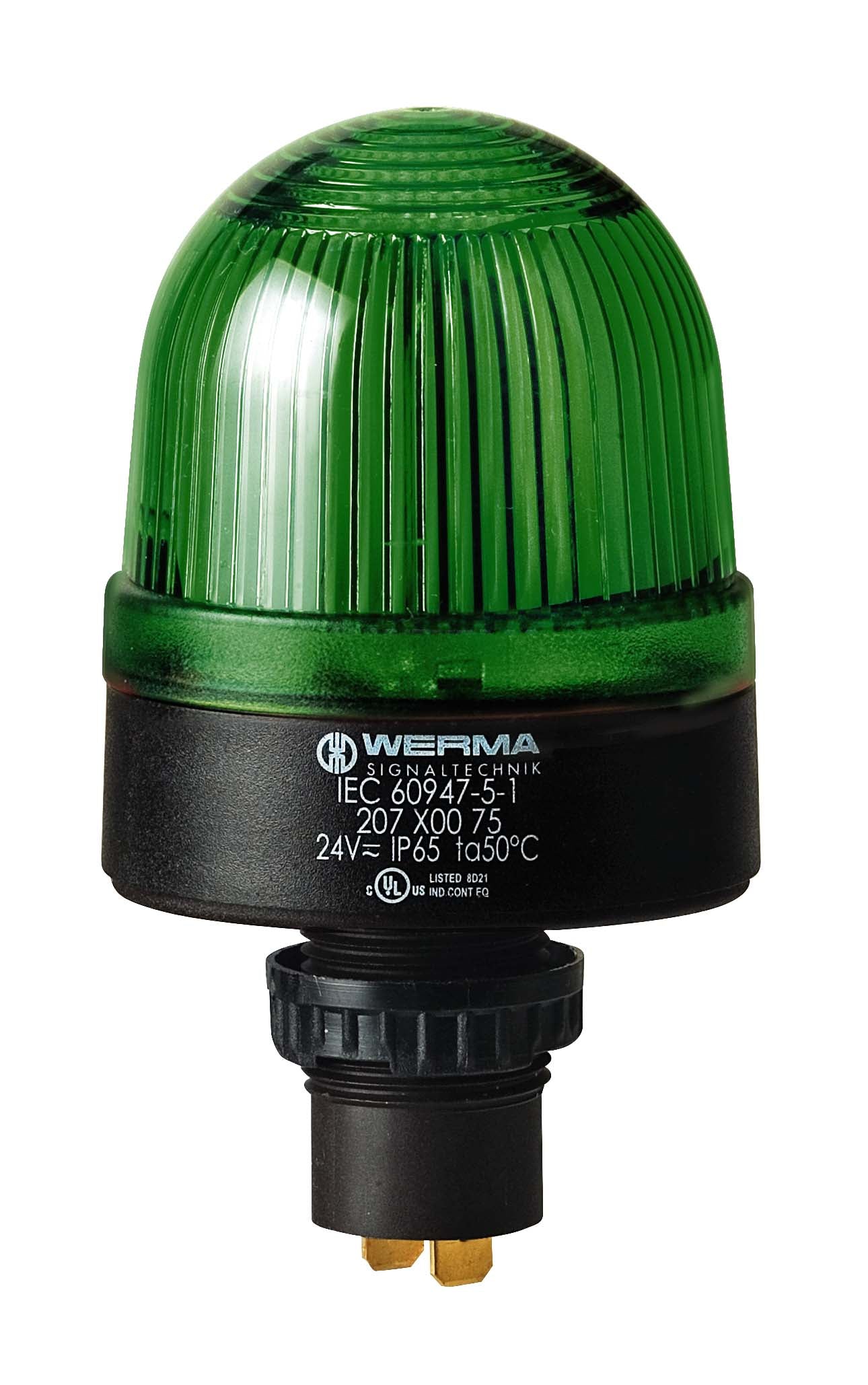

LED Perm. Beacon EM 24VAC/DC GN

Article Number

207.200.75

Type of Fixing

Built-in mounting

Light Color Options

Choose a Light colour

Voltage Options

24V AC/DC

115V AC

Product Info

Compact luminaire with long service life

• LED luminaire with long service life of up to 100,000 h
• Suitable for 22 mm standard command and signalling device range

Technical Data

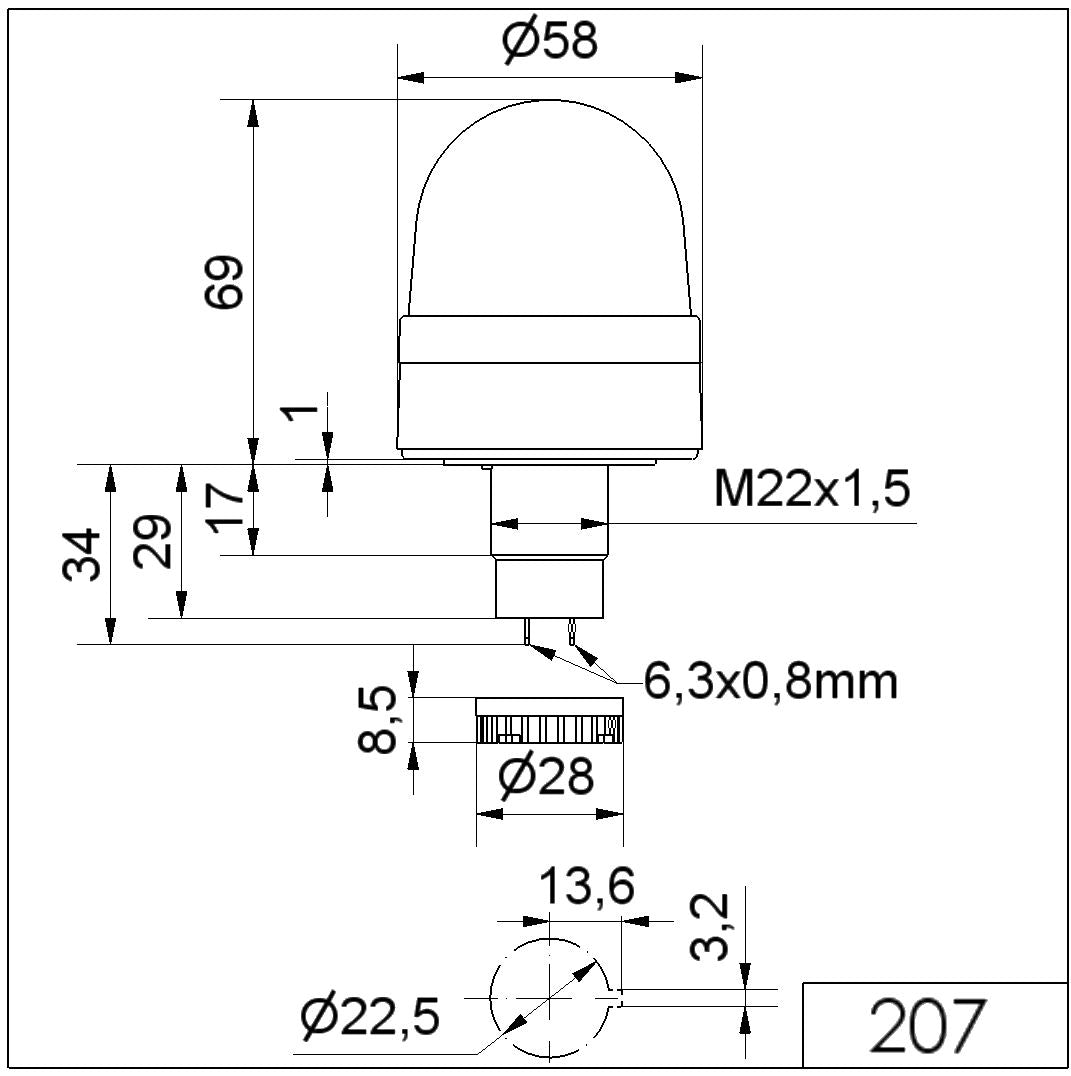

Mechanical Data

• Diameter: 58.00 mm
• Height: 103.00 mm
• Materials: PA-GF; PC
• Dome Colour: Green
• Housing Colour: Black
• Protection Category: IP65
• Connection: Flat plug
• Type of Fixing: Built-in mounting
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 77.00 g
• Product Weight: 55.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 45.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2
• Rated Inrush Current: 500 mA

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 100,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
