Product Information

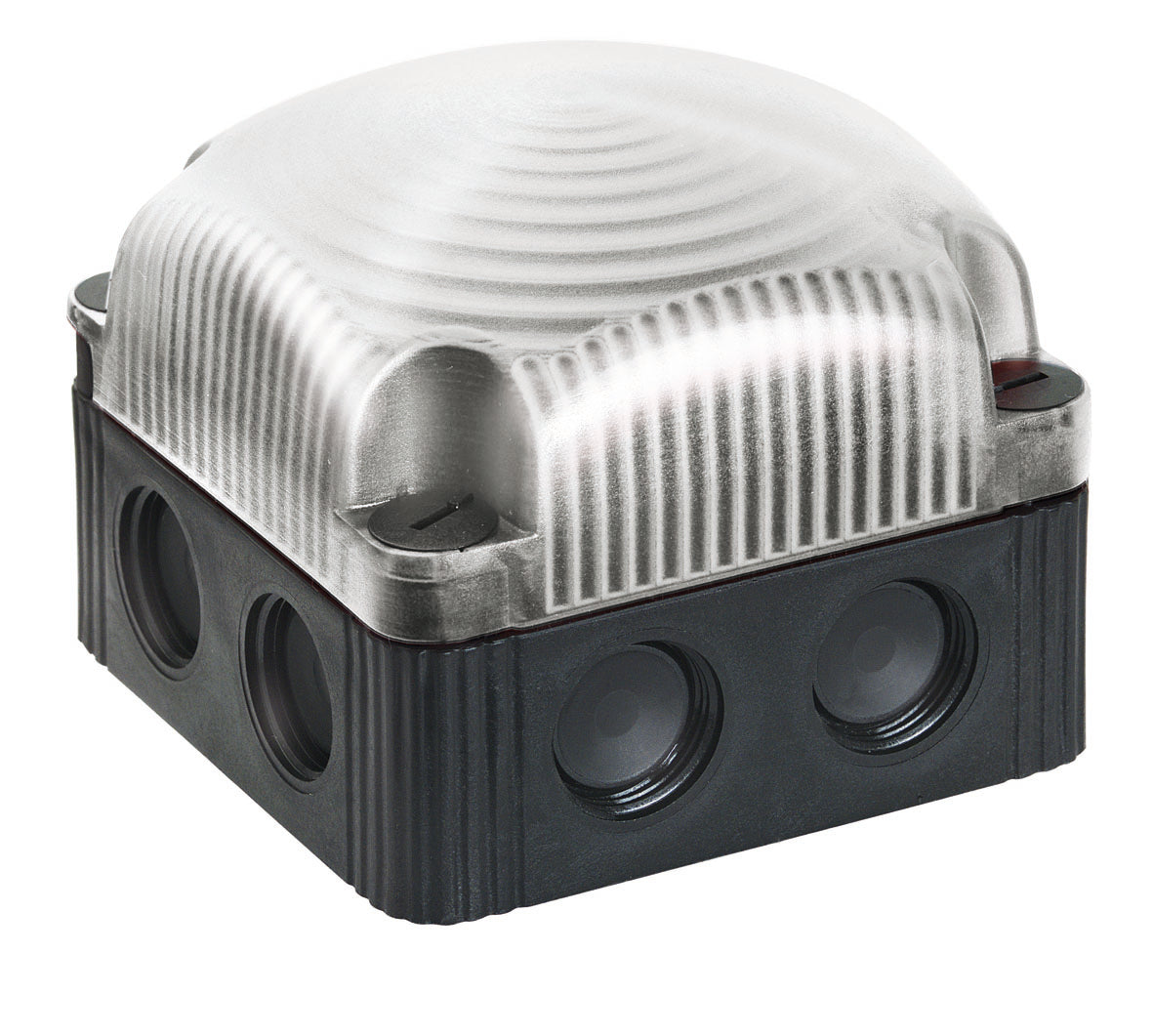

LED Perm. Beacon BWM 115-230VAC CL

Article Number

853.400.60

Type of Fixing

Base mounting; Wall mounting

Available Light Colors

Choose a Light colour

Available Voltages

• 12V DC
• 24V DC
• 48V AC
• 115-230V AC

Product Info

LED Permanent beacon in attractive quadratic form. Innovative connector to create traffic light combinations. Thread/membrane combination keeps cabling requirements to a minimum.

Technical Data

Mechanical Data

• Height: 72.00 mm
• Length: 85.00 mm
• Width: 85.00 mm
• Materials: PC; PP-GF
• Housing Colour: Black
• Dome Colour: Clear
• Protection Category: IP66; IP67
• Connection: Screw terminals
• Cable Entry: Membrane grommet
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cable Entry Minimum: d = 1 mm; d = 6 mm
• Cable Entry Maximum: d = 12 mm; d = 9 mm
• Working Temperature Minimum: -25°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 164.00 g
• Product Weight: 133.00 g

Electrical Data

• Operating Voltage: 115-230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz at 230V; 60Hz at 115V
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 40.00 A
• Rated Inrush Current: 1.000 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.25 MB)

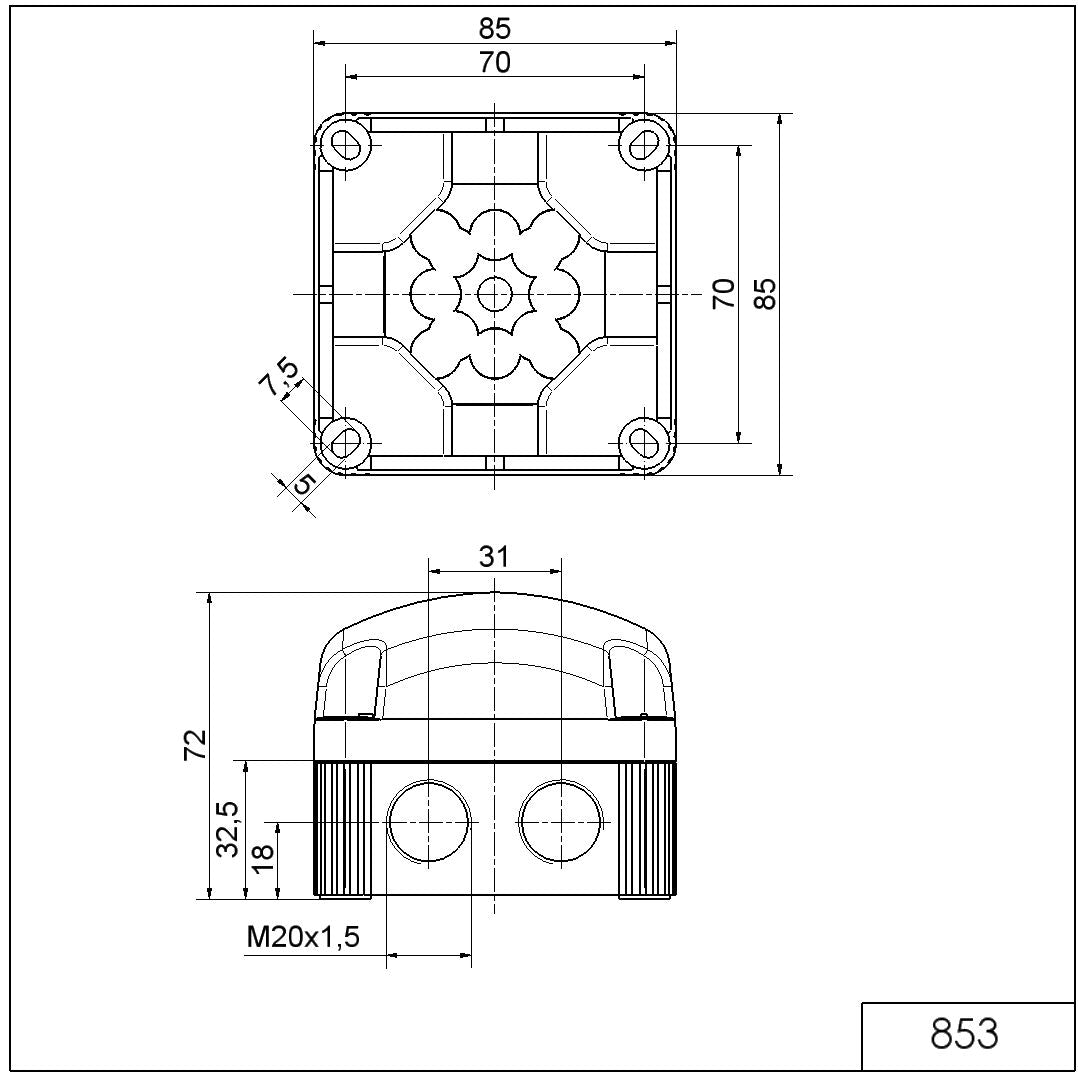

• Dimensional Drawing (0.10 MB)
• CAD Model STP (3.94 MB)
