Product Information

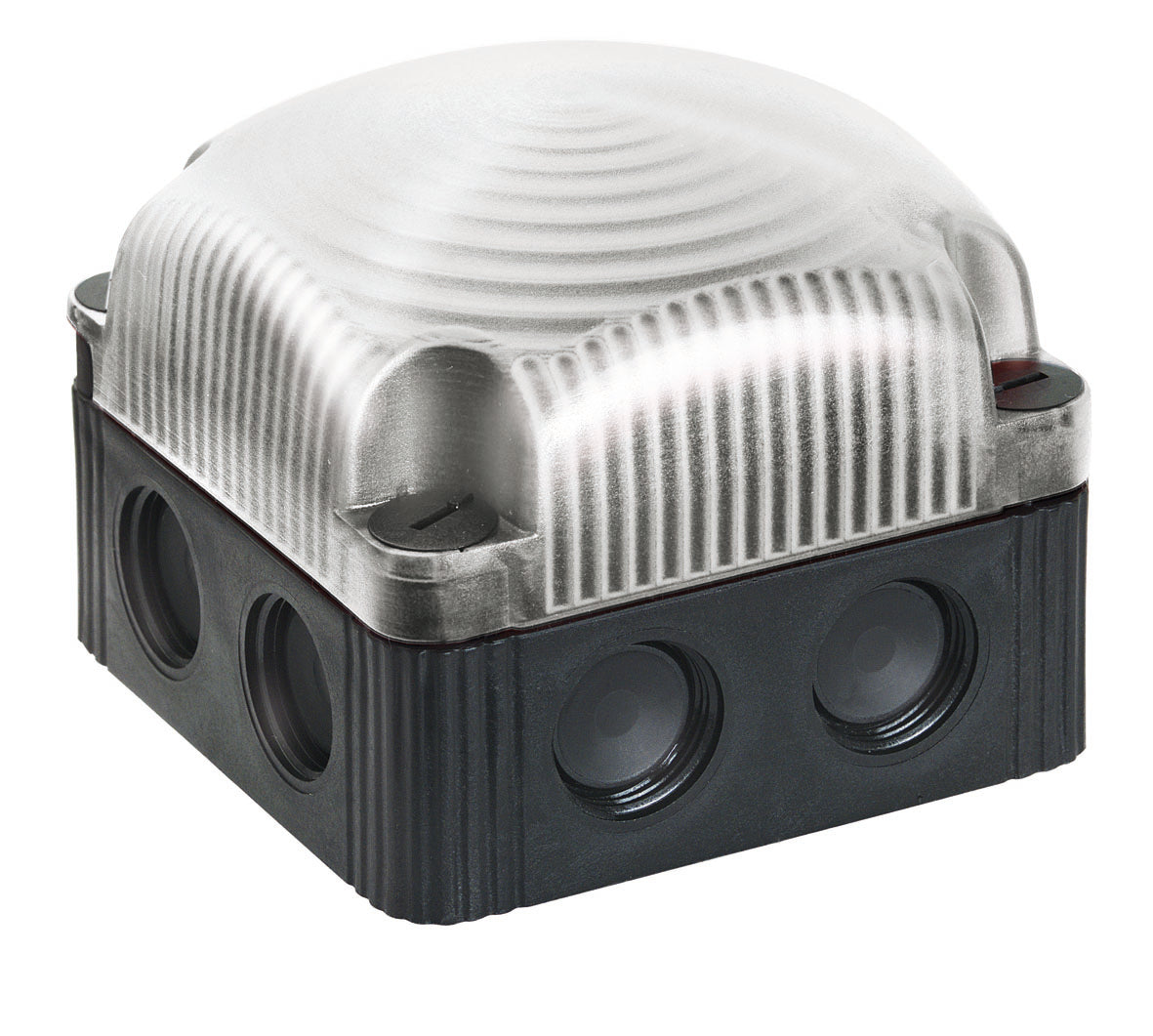

LED Perm. Beacon BWM 24VDC CL

Article Number

853.400.55

Type of Fixing

Base mounting; Wall mounting

Available Voltages

• 12V DC
• 24V DC
• 48V AC
• 115-230V AC

Product Description

LED Permanent beacon in attractive quadratic form. Innovative connector to create traffic light combinations. Thread/membrane combination keeps cabling requirements to a minimum.

Technical Data

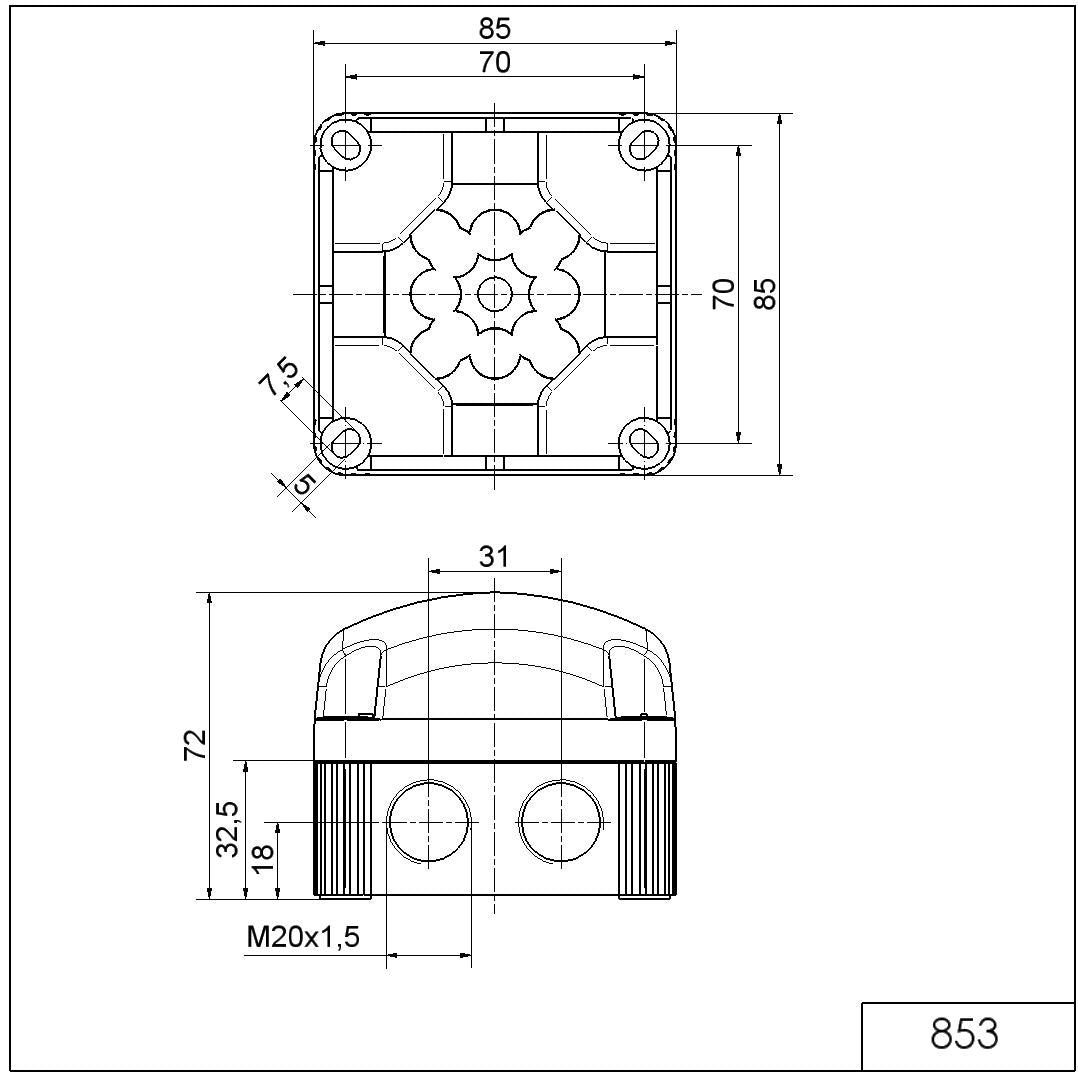

Mechanical Data

• Height: 72.00 mm
• Length: 85.00 mm
• Width: 85.00 mm
• Materials: PC; PP-GF
• Housing Colour: Black
• Dome Colour: Clear
• Protection Category: IP66; IP67
• Connection: Screw terminals
• Cable Entry: Membrane grommet
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cable Entry Minimum: d = 1 mm; d = 6 mm
• Cable Entry Maximum: d = 12 mm; d = 9 mm
• Working Temperature Minimum: -25°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 166.00 g
• Product Weight: 132.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 80.00 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
