Product Information

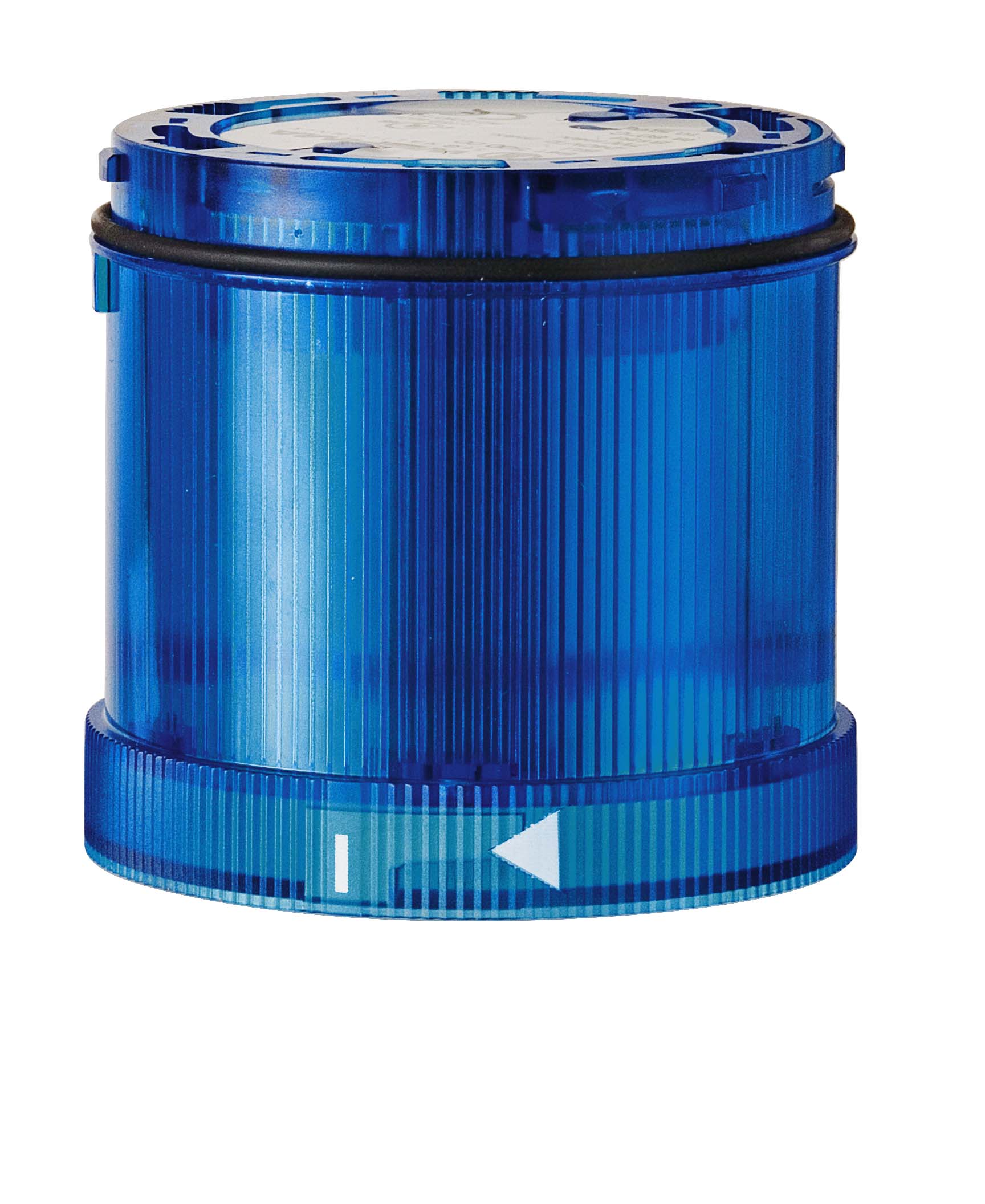

LED Double Flash el.. 24VDC BU

Article Number

644.520.55

Light Colour

Choose a Light colour

Voltage

24V DC

Product Info

LED flashing element from the KombiSIGN 71 series

• LED strobes have a long service life and lower power consumption.
• The very bright flashing of the LEDs is easy to see even in poor conditions.

Technical Data

Mechanical Data

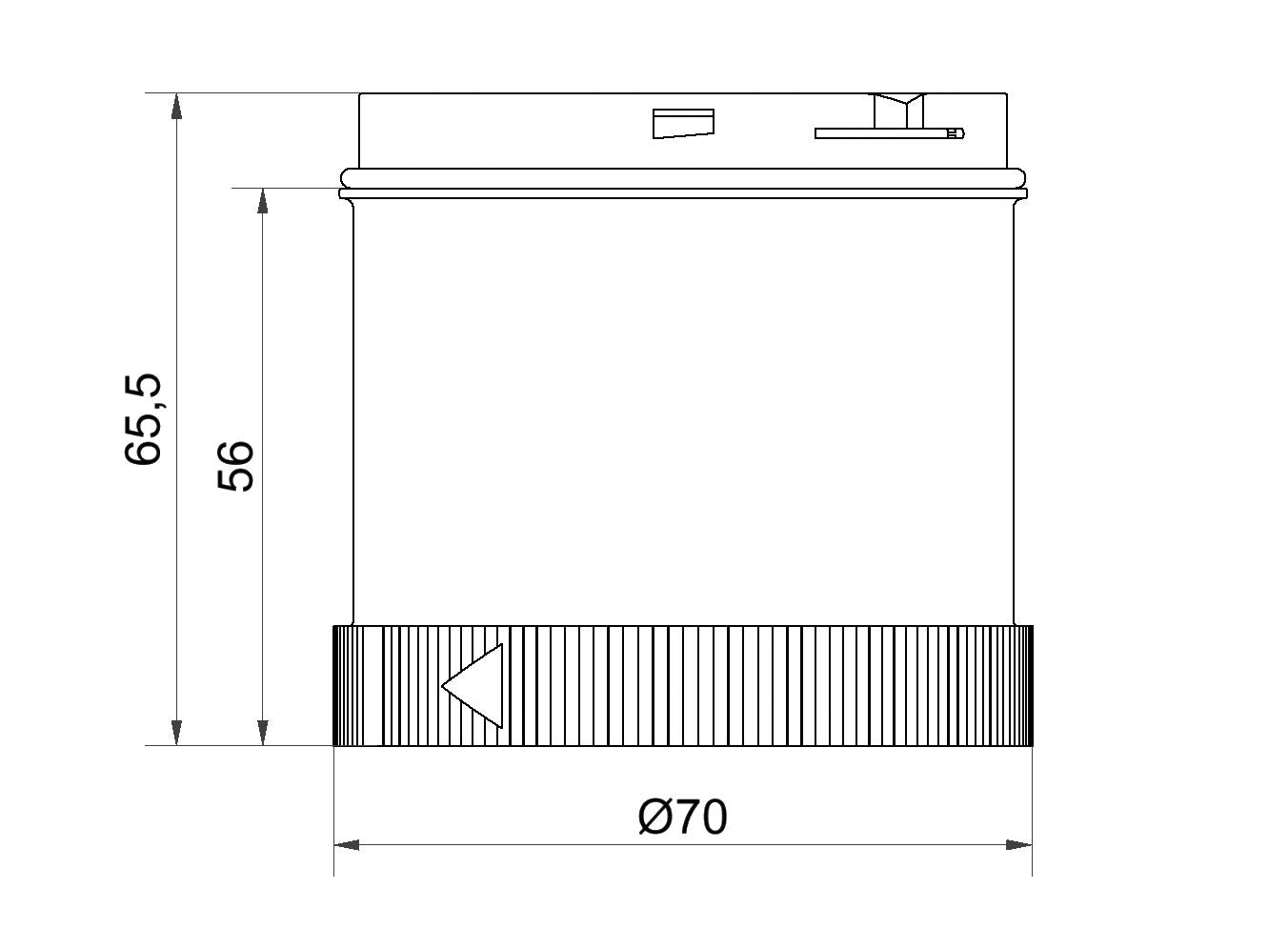

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Blue
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 86.00 g
• Product Weight: 71.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 30.00 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Flash
• Flash Frequency: 1 Hz
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
