Product Information

LED Perm. Beacon BWM 12-24VDC YE

Article Number

890.320.55

Type of Fixing

Base mounting; Wall mounting

Light Colour

Choose a Light colour

Product Info

LED beacon for traffic light combinations

Clear signalling effect even in direct sunlight

Maintenance-free LED technology

Innovative fixing bracket for simple mounting

Technical Data

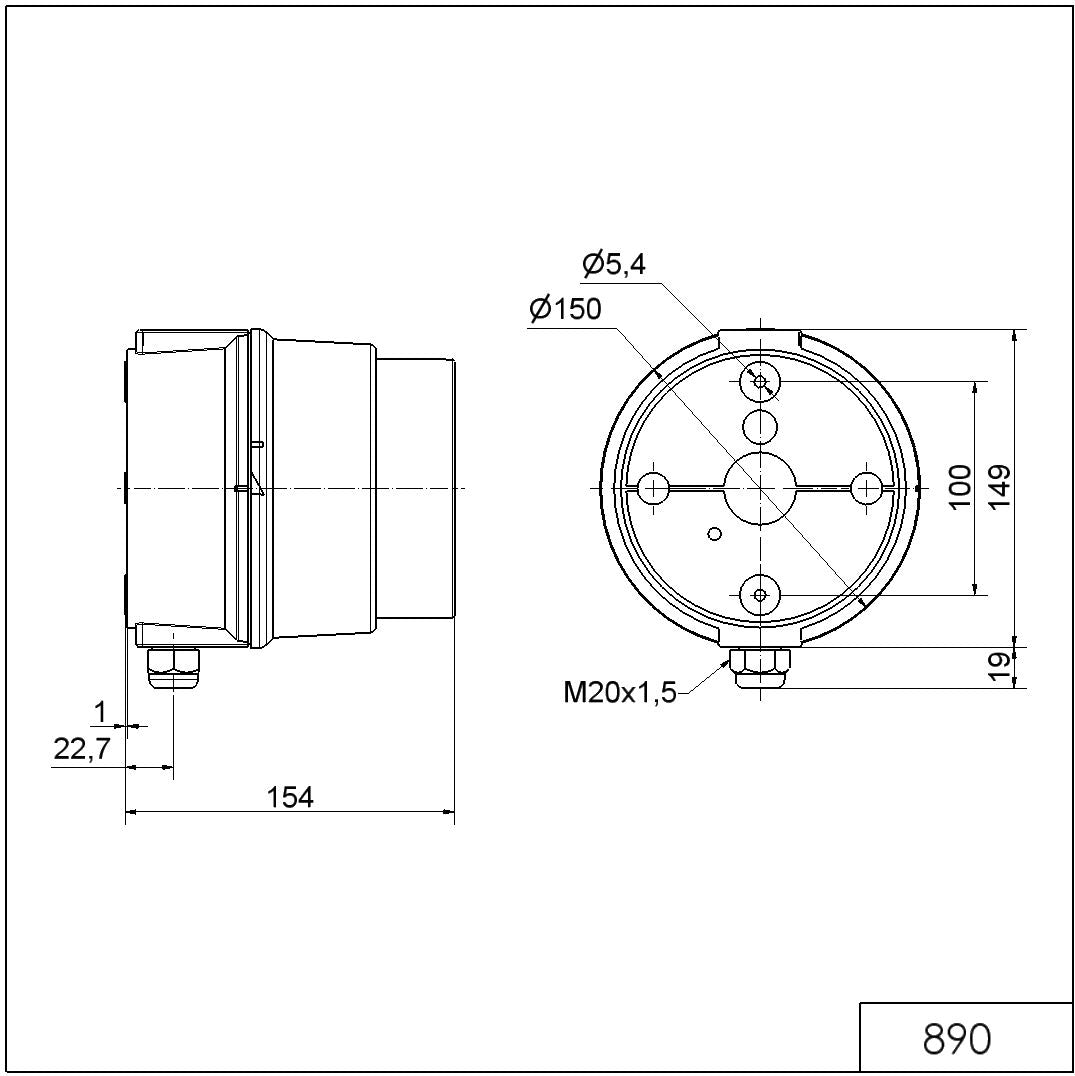

Mechanical Data

• Height: 168.00 mm
• Length: 154.00 mm
• Diameter: 150.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Grey
• Dome Colour: Clear
• Protection Category: IP65
• Connection: Spring-type terminal
• Cross-sectional Area Minimum: 0.50 mm² / 20 AWG
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 545.00 g
• Product Weight: 477.00 g

Electrical Data

• Operating Voltage: 12-24V
• Operating Voltage Type: DC
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 260.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
