Product Information

LED Double Flash el. 24VDC CL

Article Number

644.420.55

Product Info

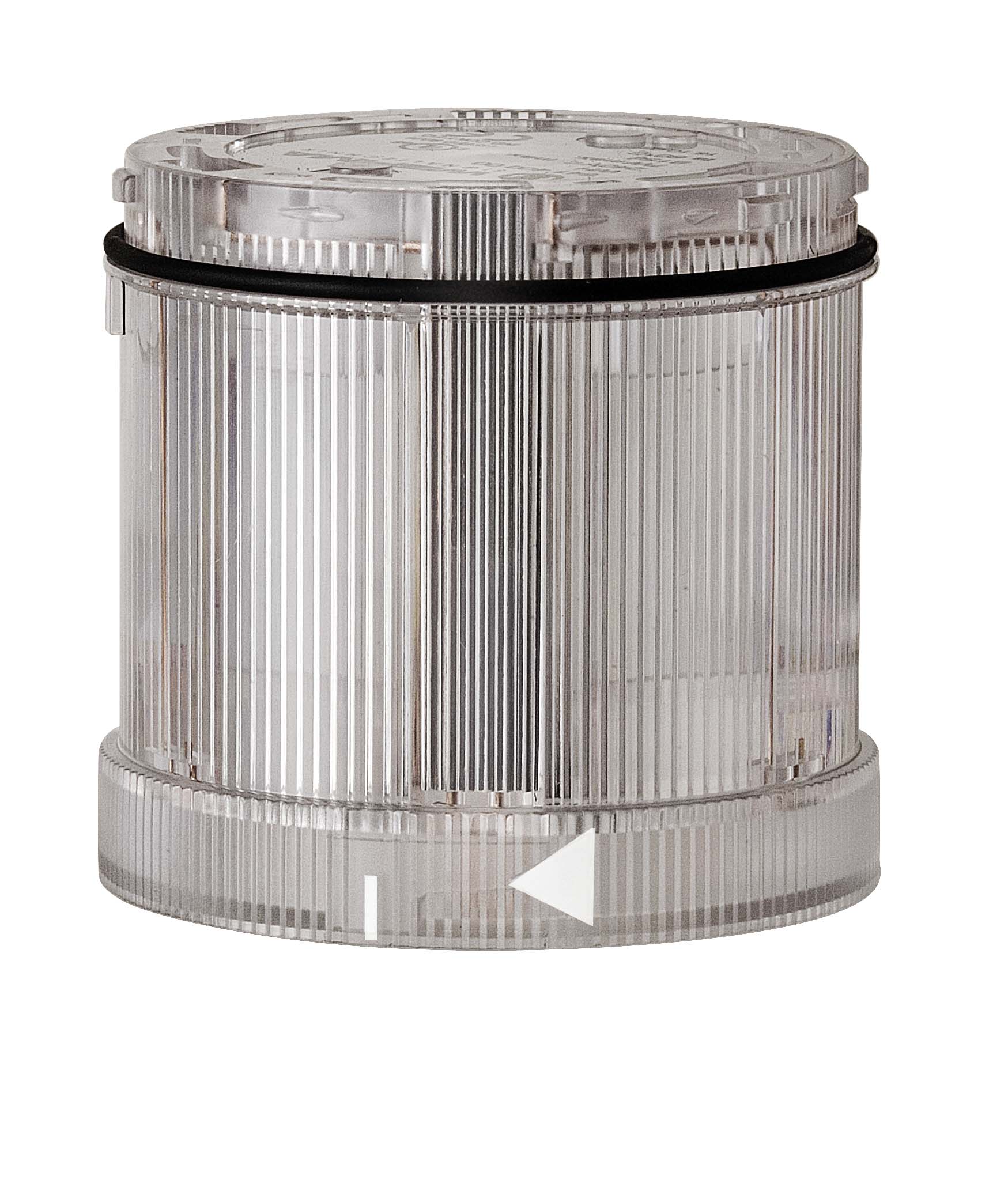

LED flashing element from the KombiSIGN 71 series

• LED strobes have a long service life and lower power consumption.
• The very bright flashing of the LEDs is clearly visible even in poor conditions.

Technical Data

Mechanical Data

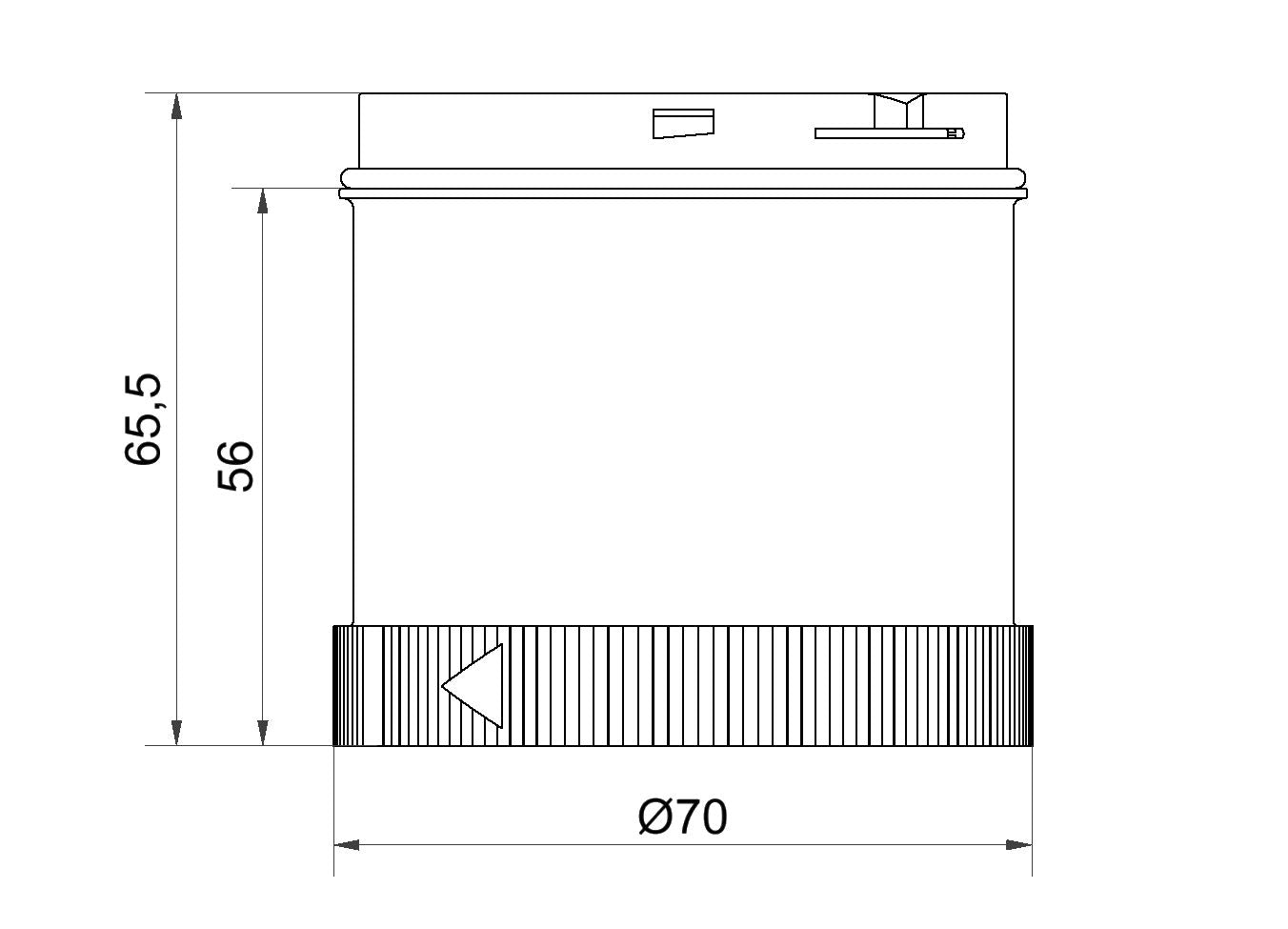

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome colour: Clear
• Protection category: IP65
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Weight with packaging: 86.00 g
• Product weight: 72.00 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: DC
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 30.00 mA
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3

Optical Data

• Light source: LED
• Optical signal image: Flash
• Flash frequency: 1 Hz
• Service life optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
