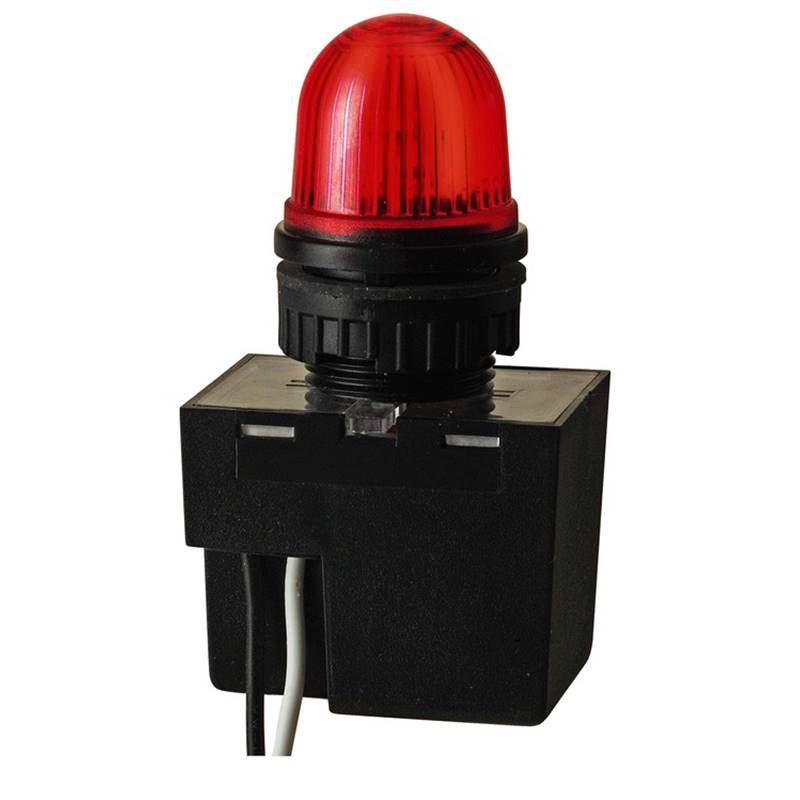

Flashing Beacon EM 24VDC RD

Product Information

Article Number: 232.100.55

Type of Fixing: Built-in mounting

Light Colour Options: 24V DC, 230V AC

Product Description

Bright flash light with small form factor. Small flashing beacon with 22 mm mounting diameter for the control and luminous xenon flash. Wide supply voltage range.

Technical Data

Mechanical Data

• Diameter: 29.00 mm
• Height: 80.00 mm
• Materials: PC; PC/ABS
• Dome Colour: Red
• Housing Colour: Black
• Protection Category: IP65
• Connection: Cable
• Type of Fixing: Built-in mounting
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Cable Length: 600.00 mm
• Weight with Packaging: 75.00 g
• Product Weight: 45.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 140.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2

Optical Data

• Light Source: Xenon
• Optical Signal Image: Flash
• Flash Frequency: 1.5 Hz
• Service Life Optical: 4 million flashes minimum
• Flash Output: 1 J

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): Yes
• Conforms with CMIM: No
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
