Product Information

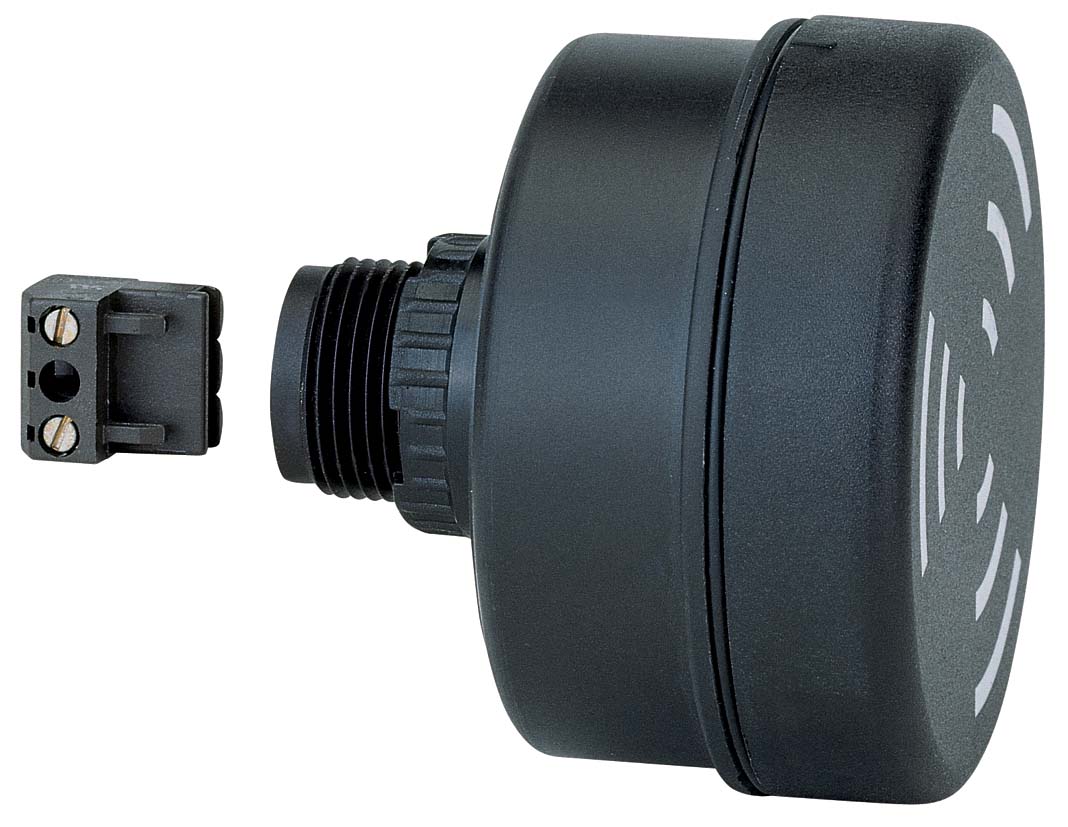

Multi-t.sounder EM 8 tne 24VAC/DC BK

Article Number: 110.000.75

Type of Fixing: Built-in mounting

Choose a Voltage

• 24V AC/DC
• 115V AC
• 230V AC

Price: US$190.33*

Stock: 224 Items in stock

Product Info

High output installation multi-tone sounder for the 22.5 mm control panel/switchgear programme.

• 8 different tones selectable
• Application-specific sound output setting

Technical Data

Mechanical Data

• Height: 64.00 mm
• Diameter: 72.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Black
• Protection Category: IP65
• Connection: Screw terminals
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Type of Fixing: Built-in mounting
• Working Temperature Minimum: -25°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 84.00 g
• Product Weight: 65.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 80.00 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 4X
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
• MTTF-value [years]: No

Audible Data

• Number of Tones: 8 tones
• Volume (max) at 1m distance: 100.0 dB (A)
• Acoustic Service Life: 5,000 h minimum
• Acoustic Signal Image: Multi-tone

Downloads and Tone Type

• Datasheet (0.28 MB)
• Operating Instructions (0.98 MB)

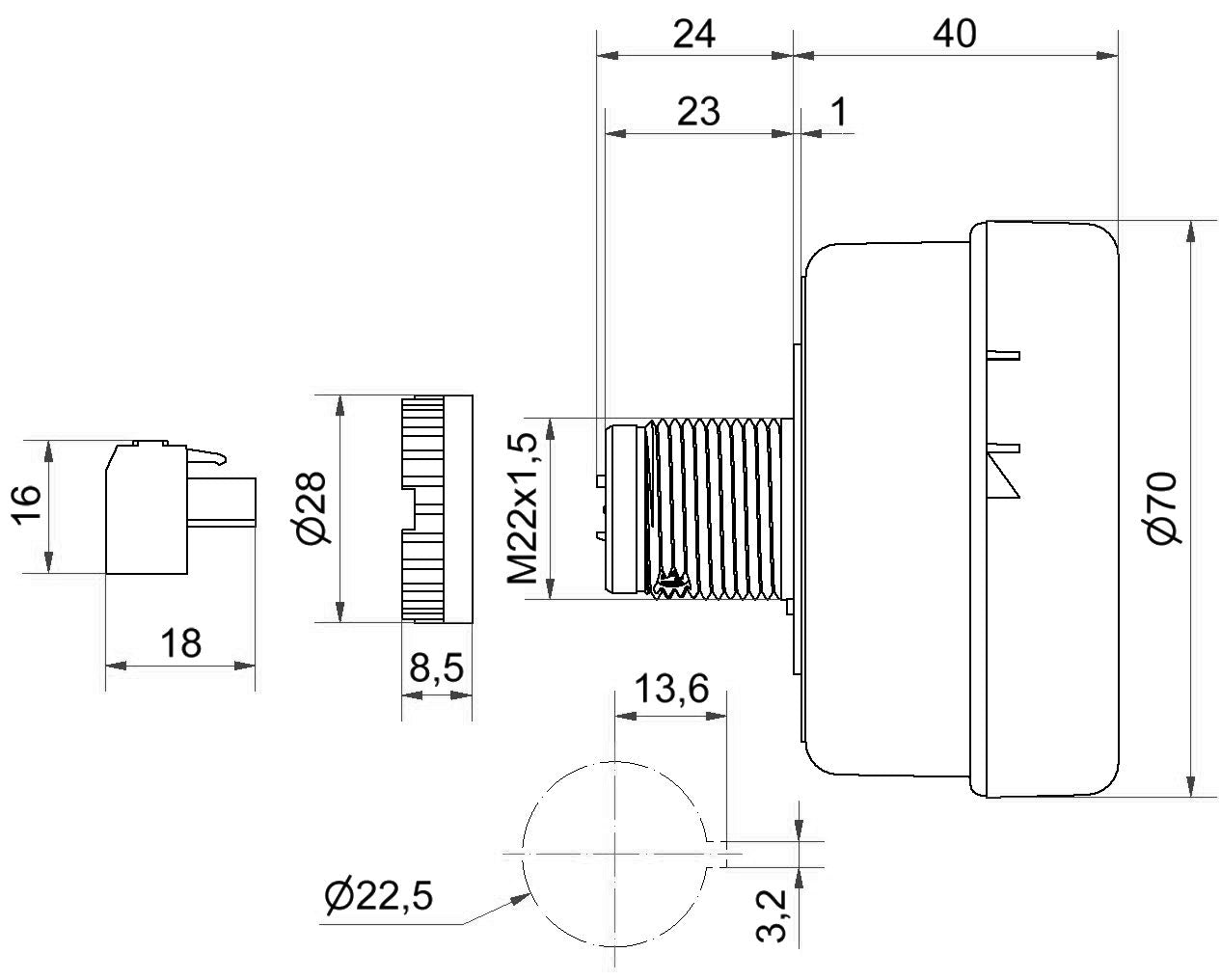

• Dimensional Drawing (0.15 MB)
• CAD Model STP (1.19 MB)
