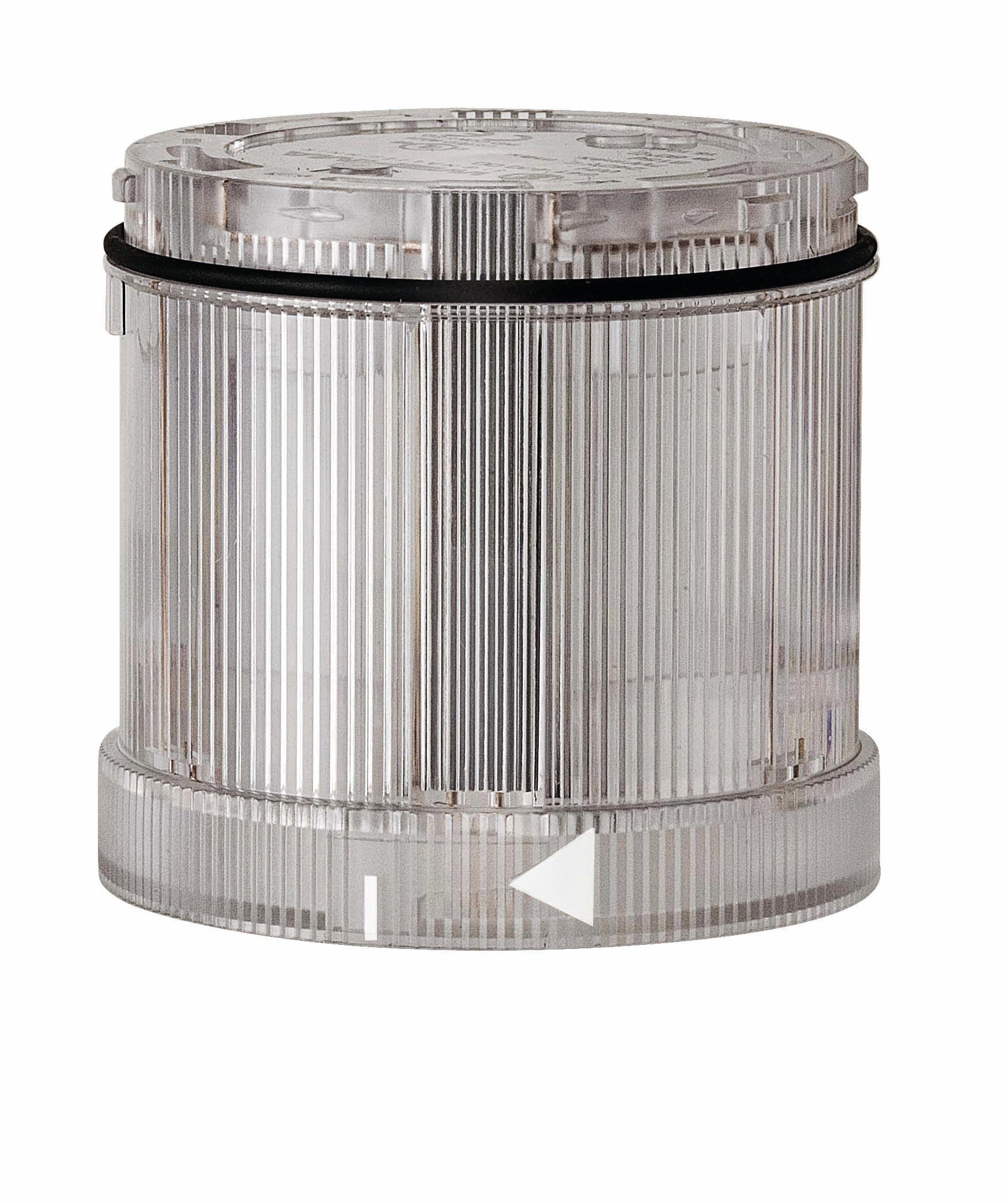

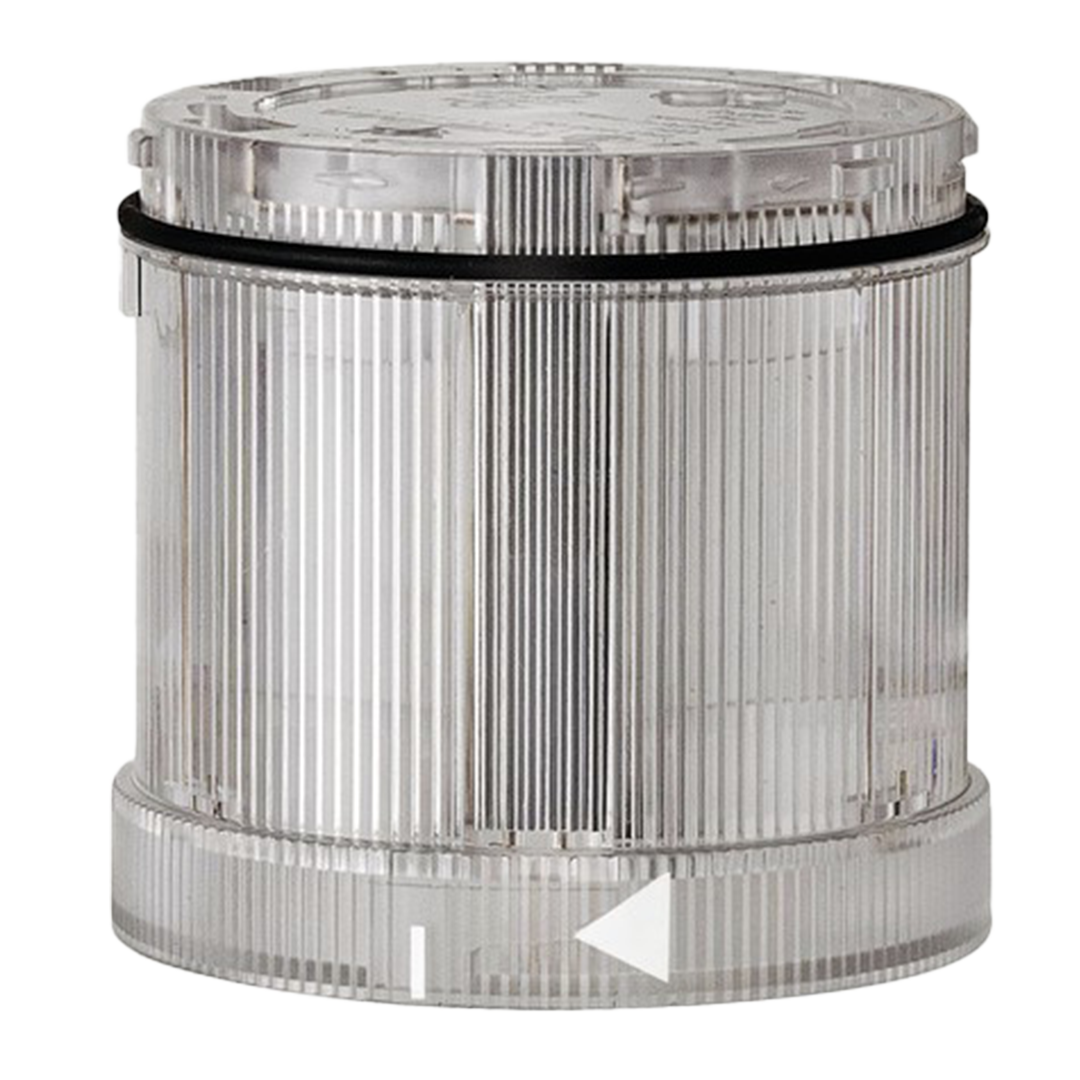

Werma LED Permanent light element, multicolour, 24VDC Part number 644.450.55

Werma's KombiSIGN 71 multicolour LED permanent light has seven colours in one beacon. The different colours can be triggered via the pins in the terminal element. The LED light is equipped with positive and negative control logic. The three basic colours (red/yellow/green) can be triggered using only two PLC outputs....
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
Werma's KombiSIGN 71 multicolour LED permanent light has seven colours in one beacon. The different colours can be triggered via the pins in the terminal element. The LED light is equipped with positive and negative control logic. The three basic colours (red/yellow/green) can be triggered using only two PLC outputs. This range from Werma gives off a high light intensity making it the right choice for any signalling requirement.
Specifications
Specifications
x
Height66
Diameter70
MaterialsPC
Dome colourClear
Protection categoryIP65
Weight with packaging81
Working temperature minimum-20°C
Working temperature maximum+50°C
Product weight67
Operating voltage24V
Operating voltage typeDC
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current120
Rated inrush current500 mA
Protection classProtection class 2
Pollution degree3
Light sourceLED
Light colourMC 7 colours
Optical signal imagePermanent
Service life optical50,000 h maximum
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with CCCNo
UL Type RatingType 12
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULcULus
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with CMIMNo
Conforms with RoHS CNNo
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
