Product Information

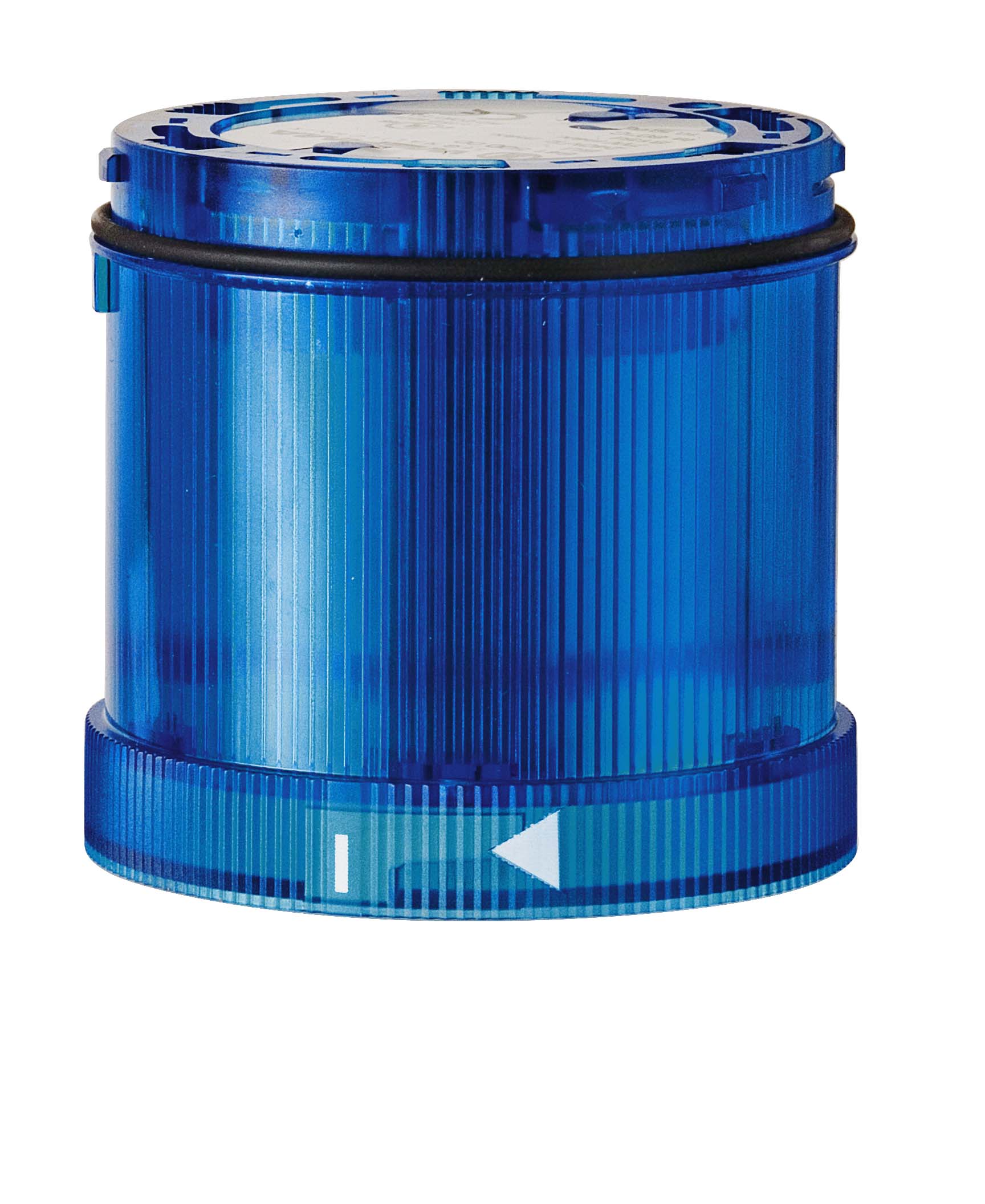

LED Blinking light element 24VAC/DC BU

Article Number: 644.510.75

Choose a Light Colour:

• 24V AC/DC
• 115V AC
• 230V AC

Product Info

LED indicator from the KombiSIGN 71 series. The flashing signal can attract greater attention.

Technical Data

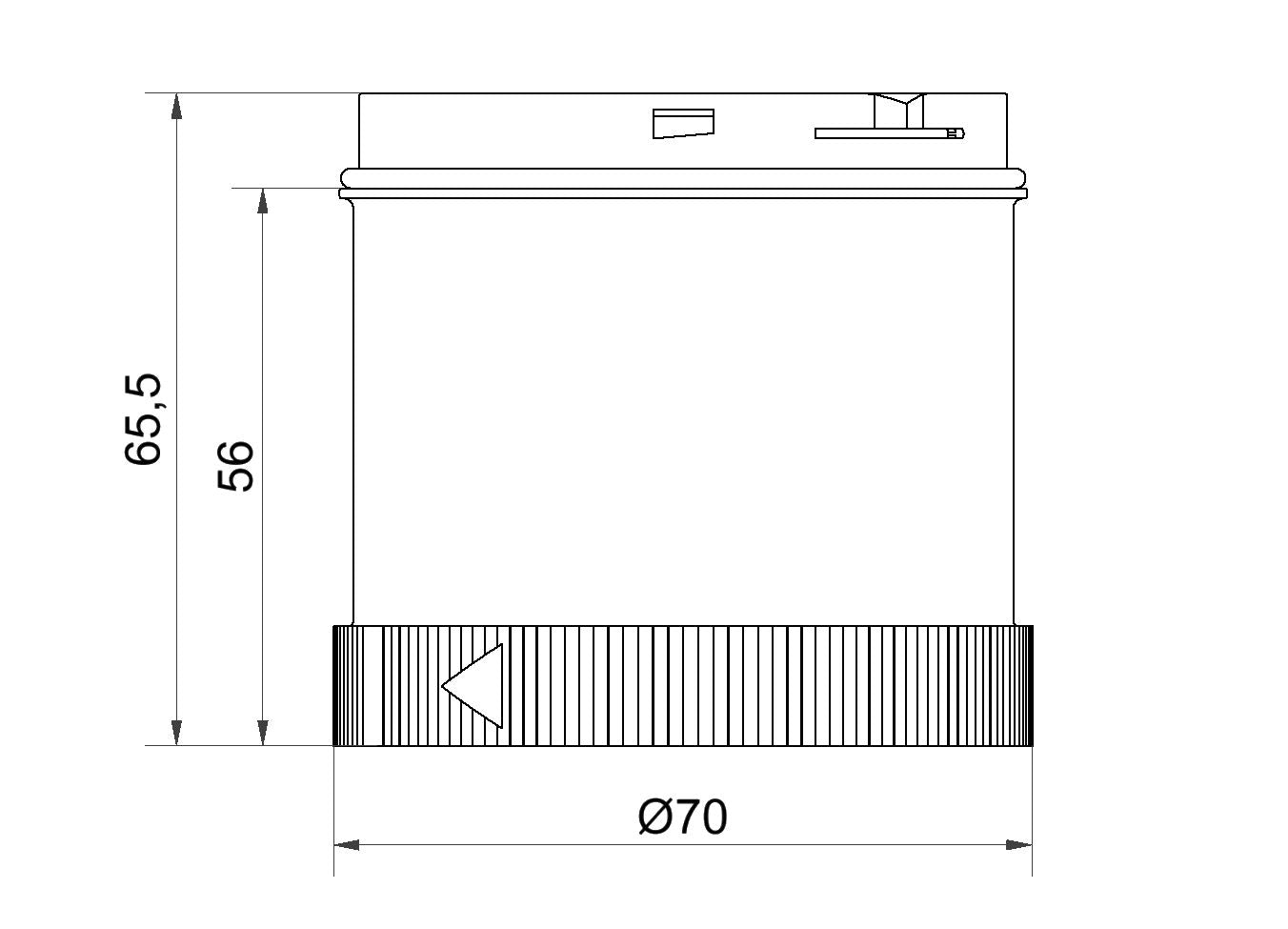

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Blue
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 73.000 g
• Product Weight: 59.000 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 30.000000 mA
• Rated Inrush Current: 150 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Blink
• Blink Frequency: 1 Hz
• Service Life Optical: 50,000 h minimum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
