Product Information

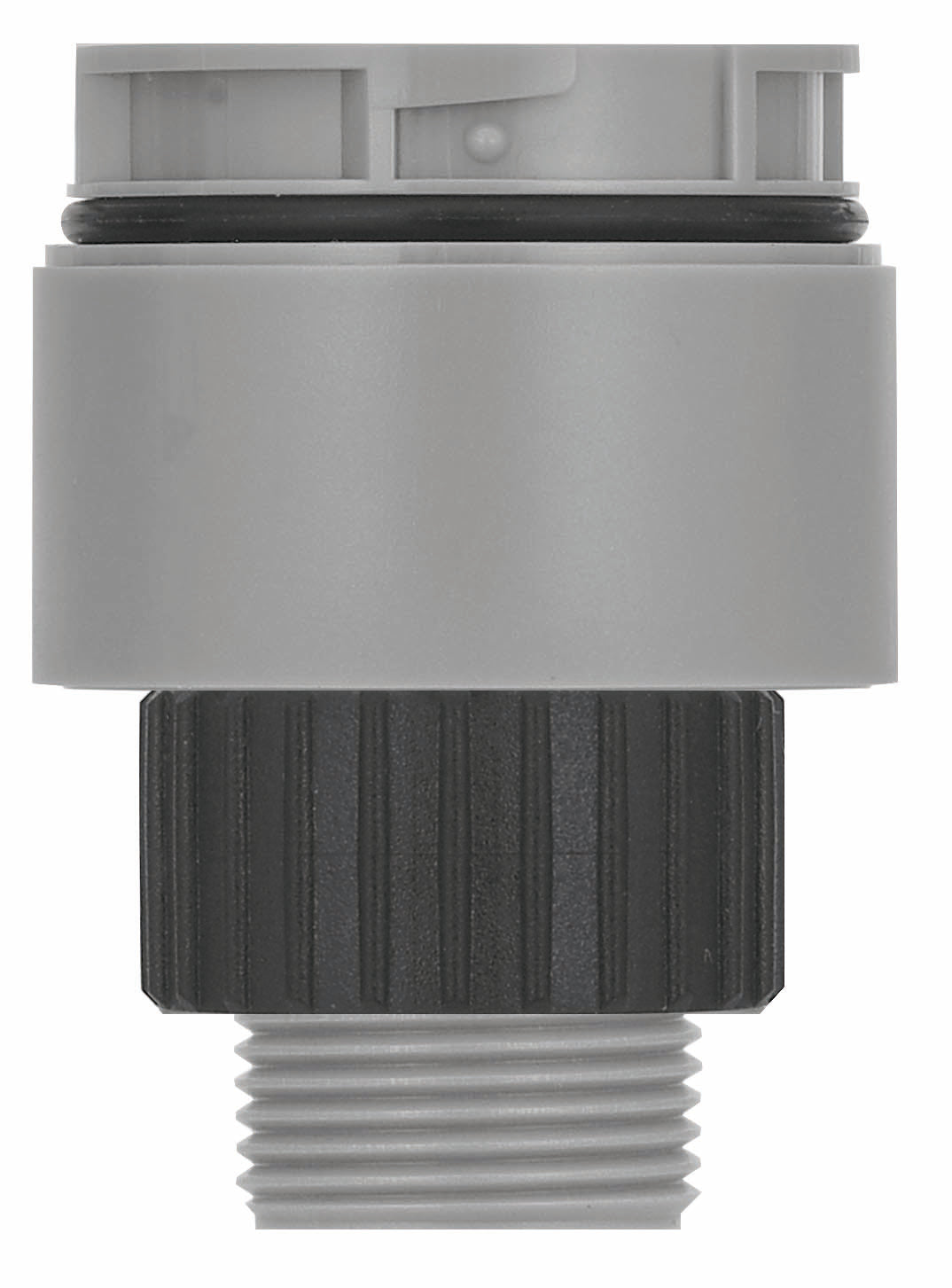

Adapter for single hole mount. EM GY

Article Number: 630.720.00

Type of fixing: Built-in mounting

Product Info

The right solution for every installation

Technical Data

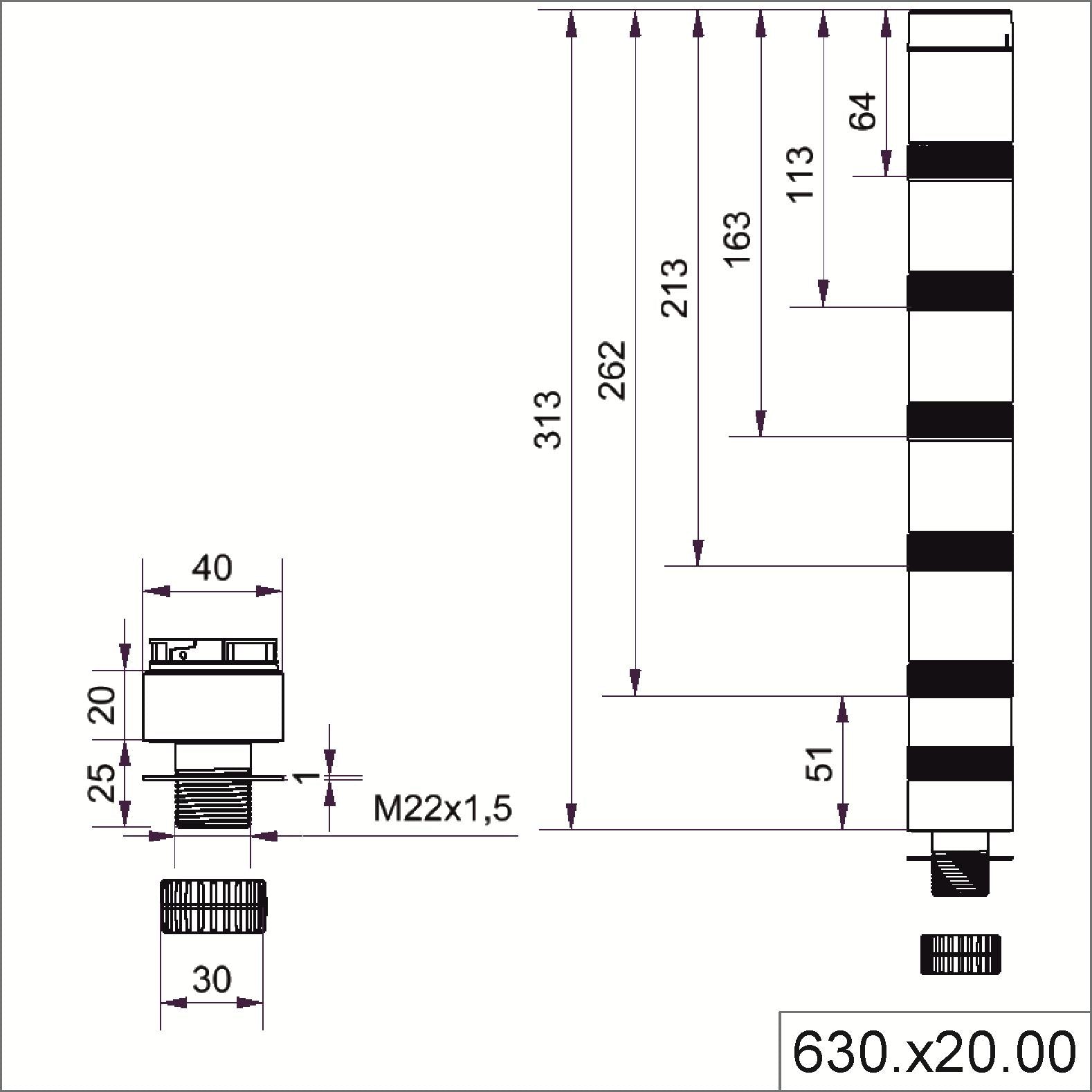

Mechanical Data

• Height: 46.000000 mm
• Diameter: 40.000000 mm
• Materials: PC
• Housing colour: Grey
• Protection category: IP66; IP69K
• Cable entry: Through hole
• Type of fixing: Built-in mounting
• Cable entry maximum: d = 9 mm
• Working temperature minimum: -30°C
• Working temperature maximum: +60°C
• Weight with packaging: 30.000 g
• Product weight: 30.000 g

Electrical Data

• Pollution degree: 3; In the connection area: 2

Authorisation Data

• Conforms with CE: No
• Conforms with RoHS directive: No
• WEEE: No
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): No
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
