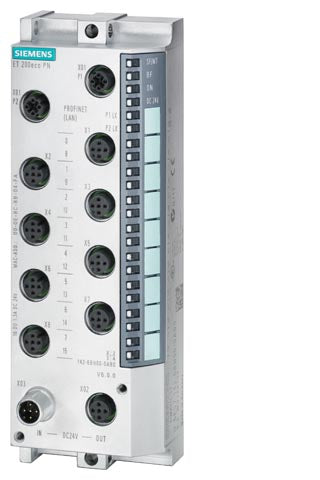

Siemens Simatic DP ET 200ECO PN Sensor box, 8 x M12, 10-port Part number 6ES7148-6JA00-0AB0

Product Overview

The Siemens Simatic DP ET 200ECO PN Sensor Box (8 × M12, 10-port) is a rugged PROFINET-based distributed I/O module engineered for harsh industrial environments. With eight M12 sensor/actuator ports and two integrated PROFINET ports, it provides efficient field-level connectivity, fast installation, and reliable communication for decentralized automation architectures.

Key Features

• Compact PROFINET I/O station with 10 total ports (8 × M12 sensor ports + 2 × PROFINET ports)
• Rugged metal housing designed for harsh, outdoor, and wash-down environments
• M12 A-coded connectors for secure, vibration-resistant field wiring
• Integrated 2-port PROFINET switch enabling line and ring topologies
• High-performance distributed I/O with fast startup and extensive diagnostics
• IP65/67 protection for direct machine-mounted installation
• Wide operating temperature range suitable for demanding plant conditions

Technical Specifications

• Product Name: Simatic DP ET 200ECO PN Sensor Box
• Sensor Ports: 8 × M12 A-coded (digital I/O)
• Total Ports: 10 (8 I/O + 2 PROFINET)
• PROFINET Interface: 2 × M12 D-coded ports, 10/100 Mbps
• Protection Rating: IP65 / IP67
• Housing: Metal, vibration-resistant, machine-mountable
• Supply Voltage: 24 V DC
• Operating Temperature Range: Typically –25 °C to +60 °C
• Installation: Direct machine installation; no enclosure required

Compliance & Certifications

• PROFINET Conformance Class B
• Meets Siemens ET 200ECO industrial standards for outdoor and harsh-environment operation
• CE and RoHS compliance

Applications

The Siemens ET 200ECO PN Sensor Box is ideal for machine-mounted distributed I/O in environments exposed to dust, water, vibration, oils, or cleaning agents. It is commonly used in packaging machinery, material handling systems, factory automation lines, assembly stations, and conveyor-based production cells that require durable, plug-and-play sensor/actuator connectivity.
