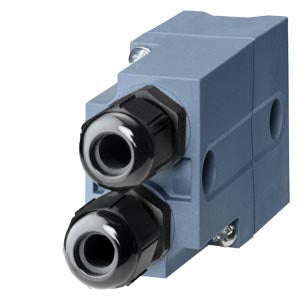

Siemens Profinet terminal block for ET 200ECO PN, 10A Part number 6ES7194-6CA00-0AA0

Product Overview

SIMATIC DP, PROFINET terminal block for ET 200ECO PN, 10 A

Key Features & Specifications

The SIMATIC DP PROFINET terminal block is specifically designed for use with the ET 200ECO PN distributed I/O system. This terminal block provides reliable connection and termination for field devices in demanding industrial environments with IP 65/67 protection rating.

Technical Specifications:

• Current Rating: 10 A maximum
• Power Loss: 1 W

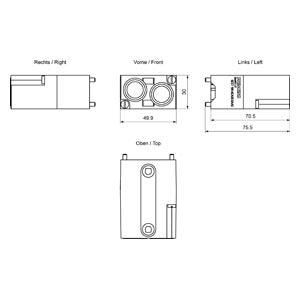

• Dimensions: 50 mm H x 30 mm W x 98 mm D
• Voltage Rating: 20.4V DC (input/output)
• Termination Type: Insulation displacement terminations (cutter clamps)
• Connection Interface: PROFINET
• Protection Rating: IP 65/67 suitable for harsh environments
• Net Weight: 0.096 kg
• Operating Temperature: -40°C to +60°C

System Integration & Compatibility

This terminal block is an integral component of the SIMATIC ET 200ECO PN system, a compact block I/O solution designed for cabinet-free installation directly at the machine. The ET 200ECO PN system features:

• Rugged Construction: Fully-sealed zinc die-cast housing for mechanical durability
• Environmental Resistance: Resistant to vibrations, dust, oil, and humidity
• Flexible Mounting: Can be installed vertically on 30mm width housing or horizontally on 60mm width housing
• M12 Connection System: Robust M12 connectors for sensors, actuators, power, and bus connections

Applications & Benefits

The terminal block is particularly suitable for:

• Machine building and automotive industry applications
• Tool changing machines and automated systems
• Distributed control systems requiring high protection ratings
• Applications in challenging environmental conditions

The compact design allows for space-efficient installation while maintaining the robustness required for industrial automation applications. The insulation displacement termination system ensures reliable connections without the need for special tools.

Product Status

Important Note: This product is currently in phase-out status as of October 1, 2024. Please contact Siemens for information regarding successor products or alternative solutions.

Compliance & Standards

• Country of Origin: Germany
• RoHS Compliant: Since November 25, 2009
• EAN: 4025515077244
• UPC: 662643401202
• Export Control: AL : N / ECCN : N
• WEEE Compliance: Yes

REACH Regulation Information

This product contains 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one in concentrations higher than 0.1% weight by weight. Based on current information, this substance does not pose any risk when the product is used as intended.

Download existing graphical data for this product:

Data Sheet

Product Support Page

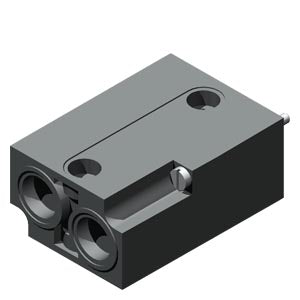

CAD/3D Models

ET 200ECO PN System Information

Additional Information

The ET 200ECO PN system represents a robust solution for distributed I/O applications where traditional cabinet-based systems are impractical. The system's ability to operate in extreme temperature ranges and harsh environmental conditions makes it ideal for outdoor installations and demanding industrial applications where reliability is paramount.
