Product Overview

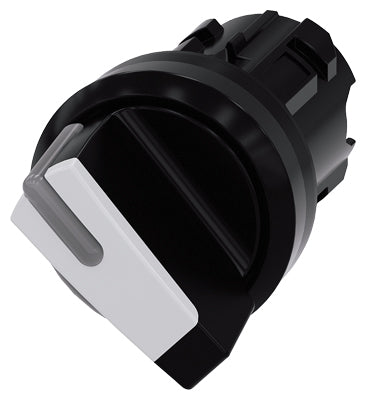

The SIRIUS ACT 3SU1002-2BF60-0AA0 is a premium 22 mm round illuminable selector switch designed for industrial control applications requiring reliable switching and visual status indication. This white, plastic selector switch with short actuator combines robust construction with dual functionality for demanding industrial environments requiring both control switching and illumination indication.

Key Features Design & Construction:

• 22 mm round mounting diameter with selector switch design
• High-grade plastic front ring and collar construction
• White plastic actuator with short profile design
• Illuminable function with switching capability
• Snap-on mounting system without tools required
• Durable construction for industrial switching applications

Switching Function:

• 2 Switch Positions: O-I (Off-On) latching operation
• 90° Actuating Angle: Precise switching with defined positions
• Position Markings: 10:30h/13:30h clock positions for clear identification
• Latching Operation: Maintains selected position until manually changed
• Illuminable Design: Integrated illumination capability for status indication
• Short Actuator: Compact profile suitable for panel applications

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Actuator Type: Short white plastic selector
• Switch Positions: 2 positions (O-I)
• Actuating Angle: 90°
• Position Indication: 10:30h/13:30h
• Operation Type: Latching
• Illumination: Compatible with LED modules
• Mechanical Life: Extended switching cycle life
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications Ideal for use in:

• Manual control and switching applications
• Equipment on/off control with visual indication
• Process control systems requiring operator selection
• Control panels with illuminated switching functions
• Manufacturing equipment manual override controls
• Safety systems requiring positive switching action
• Machine control stations with status indication
• Industrial control applications requiring dual functionality

Switching Features

• Dual Functionality: Combines switching control with illumination capability
• Positive Action: Latching operation ensures definitive position selection
• Visual Feedback: Illuminable design provides clear status indication
• Ergonomic Design: Short actuator profile for comfortable operation
• Precise Positioning: 90° angle with clear position markings
• Reliable Switching: Industrial-grade contacts for dependable operation

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Blocks: Compatible with 3SU14 series contact blocks
• LED Modules: Compatible with 3SU14 series LED modules for illumination
• Modular Design: Supports integration with control system architectures
• Easy Maintenance: Accessible components for service and replacement

Series Compatibility Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.023 kg
• Country of Origin: Czech Republic
• EAN: 4011209956148
• Package Dimensions: 78 x 100 x 32 mm

Download existing graphical data for this product: Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats

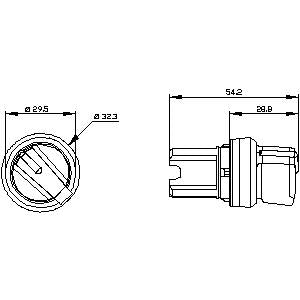

• 2D Dimension Drawings
