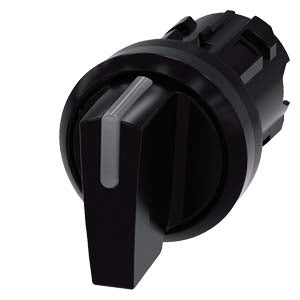

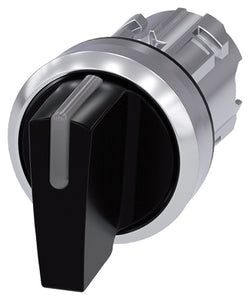

Siemens Illuminable selector switch, 3 position, black, 22mm
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
The SIRIUS ACT 3SU1002-2BL10-0AA0 is a premium 22 mm round illuminable selector switch designed for industrial control applications requiring multi-position switching and visual status indication. This black, plastic selector switch with short actuator combines robust construction with triple functionality for demanding industrial environments requiring both precise control switching and illumination indication.
Key Features Design & Construction:
- 22 mm round mounting diameter with selector switch design
- High-grade plastic front ring and collar construction
- Black plastic actuator with short profile design
- Illuminable function with switching capability
- Snap-on mounting system without tools required
- Durable construction for industrial switching applications
Switching Function:
- 3 Switch Positions: I-O-II (On-Off-On) latching operation
- 2x45° Actuating Angle: Precise switching with defined incremental positions
- Position Markings: 10:30h/12h/13:30h clock positions for clear identification
- Latching Operation: Maintains selected position until manually changed
- Illuminable Design: Integrated illumination capability for status indication
- Short Actuator: Compact profile suitable for panel applications
Technical Specifications:
- Protection Rating: IP66, IP67, IP69K (front face)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +80°C
- Mounting Hole Diameter: 22.3 mm
- Actuator Type: Short black plastic selector
- Switch Positions: 3 positions (I-O-II)
- Actuating Angle: 2x45° (total 90°)
- Position Indication: 10:30h/12h/13:30h
- Operation Type: Latching
- Illumination: Compatible with LED modules
- Mechanical Life: Extended switching cycle life
- Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)
Certifications & Standards:
- UL, CSA, CE marked
- IEC 60947-5-1 compliant
- RoHS compliant since 01.03.2017
- REACH regulation compliant
Applications Ideal for use in:
- Multi-state control and switching applications
- Equipment forward/off/reverse control with visual indication
- Process control systems requiring three-position selection
- Control panels with illuminated multi-position switching functions
- Manufacturing equipment directional control systems
- Motor control applications requiring forward-off-reverse operation
- Machine control stations with status indication
- Industrial control applications requiring triple functionality
Switching Features
- Triple Functionality: Combines three-position switching control with illumination capability
- Positive Action: Latching operation ensures definitive position selection
- Visual Feedback: Illuminable design provides clear status indication
- Ergonomic Design: Short actuator profile for comfortable operation
- Precise Positioning: 2x45° incremental angles with clear position markings
- Reliable Switching: Industrial-grade contacts for dependable operation
- Center-Off Operation: Central off position for safe isolation between active states
Mounting & Installation
- Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
- Tool-Free Installation: Snap-on holder system
- Contact Blocks: Compatible with 3SU14 series contact blocks
- LED Modules: Compatible with 3SU14 series LED modules for illumination
- Modular Design: Supports integration with control system architectures
- Easy Maintenance: Accessible components for service and replacement
Series Compatibility Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:
- Consistent design language across installations
- Interchangeable components and modules
- Extensive accessory ecosystem
- Global availability and support
Technical Documentation:
- Net Weight: 0.021 kg
- Country of Origin: Czech Republic
- EAN: 4047621016542
- Package Dimensions: 30 x 100 x 30 mm
Download existing graphical data for this product: Technical Documentation:
CAD Data & Drawings:
Configuration Tools:
Additional Resources:
Additional Information
| IP Rating | IP66 |
| IP Rating Detailed | IP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068 |
| Compliance/Standards | EN 61373, IEC 61508, IEC 60721, IEC 60068-2, IEC 81346-2 |
| Diameter (mm) | 323.0mm |
| Part Width (mm) | 30,00mm |
| Part Height (mm) | 100,00mm |
| Part Depth (mm) | 30,00mm |
| Weight (g) | 0,021 Kg |
| Max Frequency | 18001 /h |
| description | Illuminable selector switch, 22 mm, round, plastic, black, Selector switch short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h |
| country_of_origin | Czech Republic |
Technical Documentation & Downloads
Additional Datasheet

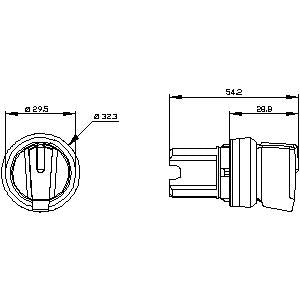

Dimensional Drawing
