Description

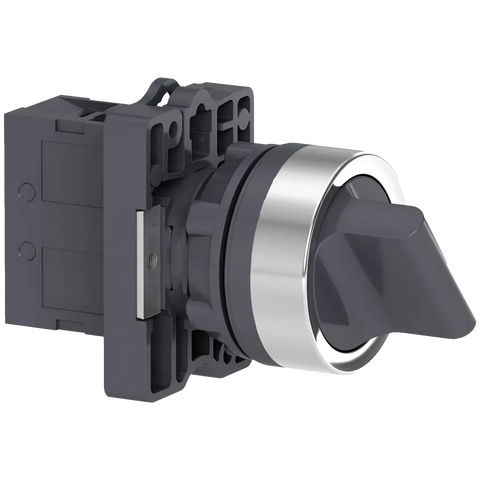

xThis two-position selector switch from the Easy Harmony XA2 range features a stay-put operator with 1 NO contact. It is built with a plastic bezel and designed for 22.5 mm mounting, providing a mechanical durability of up to 300,000 cycles.
Specifications
x| IP Rating | IP65 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CCC / CE / GB 14048.1 / GB 14048.5 / IEC 60947-1 / IEC 60947-5-1 |
| Temperature: Operating | -25°C to 55°C |
| Part Depth (mm) | 68.2mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Diameter (mm) | 22.5mm |
| Weight (g) | 40g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 0.8 Nm |
| Material: Product | Plastic |
| Connection Style | 1 NO |
| Connection Type | Clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Current Rating / Rated Current | 3 A at 240 V / 0.27 A at 250 V |
| Operating Period | 300000 cycles (Mechanical) / 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 / conforming to IEC 60947-5-4 /\n500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5\nconforming to IEC 60947-5-4 (Electrical) |
| Colour | Black |
