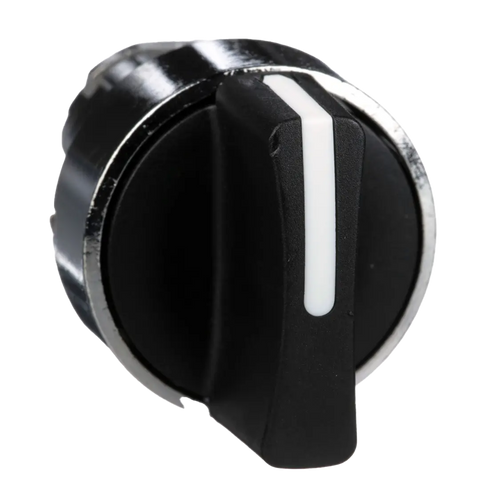

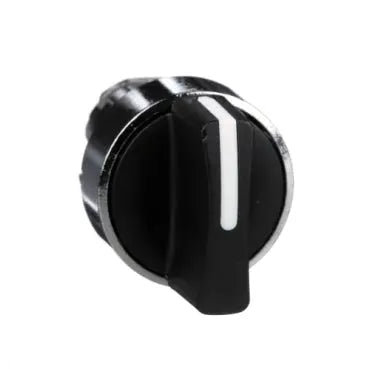

Schneider Selector switch head, metal, black, 3-position Part number ZB4BD3

This selector switch head from the Harmony XB4 series is designed with a stay-put operator and provides three positions. Its metal construction and durable design make it suitable for industrial applications, supporting up to 1 million mechanical cycles.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This selector switch head from the Harmony XB4 series is designed with a stay-put operator and provides three positions. Its metal construction and durable design make it suitable for industrial applications, supporting up to 1 million mechanical cycles.
Specifications
Specifications
x
IP RatingIP67 conforming to IEC 60529 IP69 IP69K
Country of OriginGermany
Compliance/CertificationsCSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed BV
Temperature: Operating-40°C to 70°C
Part Depth (mm)44mm
Part Width (mm)29mm
Part Height (mm)29mm
Diameter (mm)22mm
Weight (g)40g
Packaging size / unit1 pc(s)
Material: ProductChromium-plated metal
Operating Period1000000 cycles (Mechanical)
Warranty18 Months
ColourBlack
Documents
Documents
x
Download Datasheet
