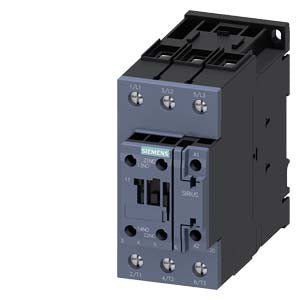

Siemens Power contactor, 3-pole, size S2, 1NO + 1NC, 80A

Product Overview

Power contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 24 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2. Article Number: 3RT2038-1AB00.

Key Specifications

Electrical Ratings:

• Current rating: 80 A (AC-3e/AC-3)
• Power rating: 37 kW / 400 V
• Control voltage: 24 V AC, 50 Hz
• Poles: 3-pole
• Auxiliary contacts: 1 NO + 1 NC

Construction Features:

• Screw terminal connections
• Frame size: S2
• Suitable for industrial applications

Physical Specifications

• Net weight: 0.993 kg
• Packaging dimensions: 62 × 122.5 × 142 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4011209940642
• UPC: 887621917869

Compliance Information

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

CAD Drawings & Technical Documentation

Certificates
