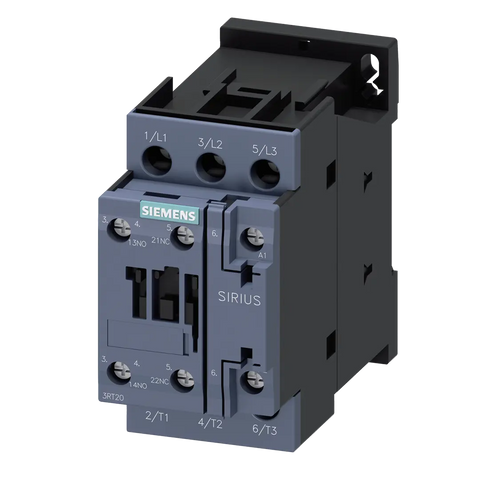

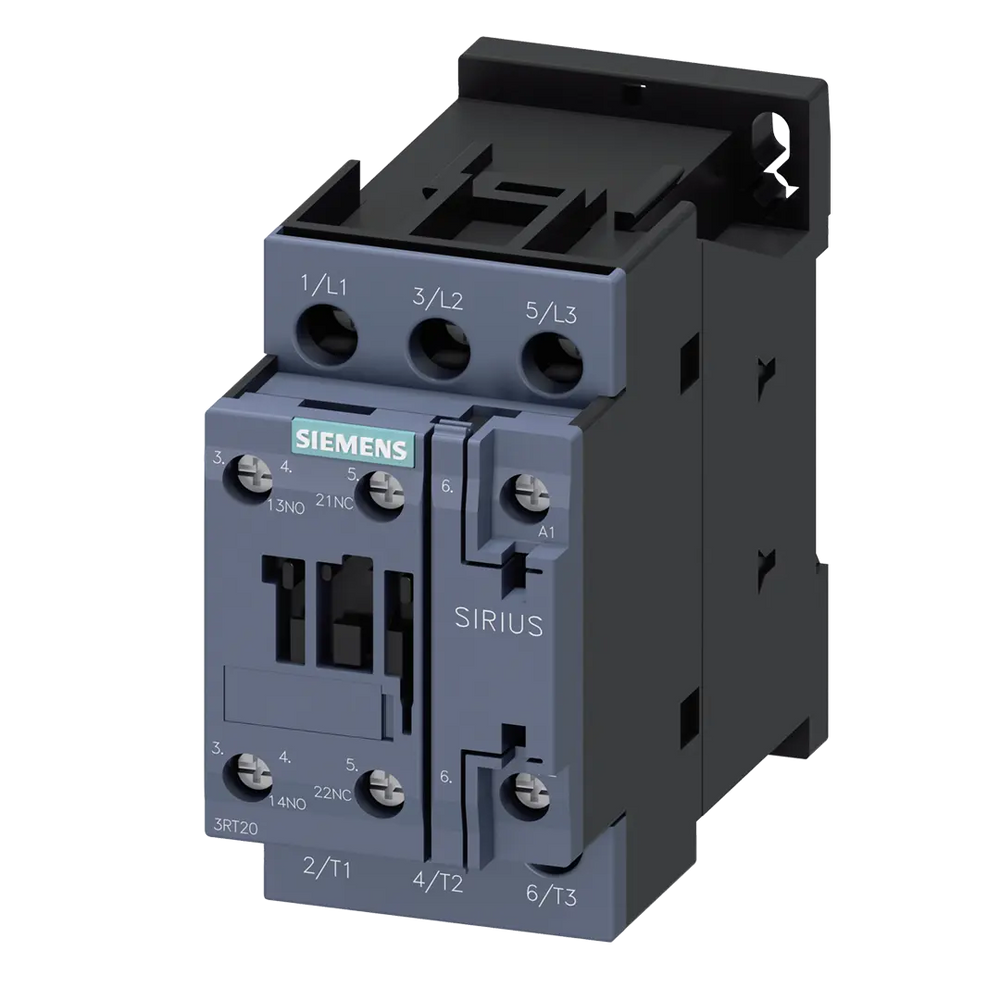

Siemens power contactor, 3-pole, size S0, 24VDC Part number 3RT2025-1BB40

EAN / Barcode 4011209832459
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

This SIRIUS power contactor is designed for motor loads up to 7.5 kW at 400 V AC and is rated for 17 A. It features 1 NO + 1 NC auxiliary contacts and operates with a 24 V DC coil, providing reliable control for industrial motors.

Technical Specifications

Connection Style1 NO + 1 NC / 3 Poles
Connection TypeScrew type terminals
Current Rating / Rated Current0.06 - 40 A
Depth107 mm
Height85 mm
IP RatingIP20
Max Frequency300 1/h - 1000 1/h
Modular versionYes
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating Period10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical)
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Packaging size / unitpc(s)
Part Depth (mm)107mm
Part Height (mm)85mm
Part Width (mm)45mm
Rated control supply voltage DC24 V
Rated Operating Voltage690 VAC
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V17 A
Rated operation current Ie at AC-4, 400 V15.5 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power NEMA7.354988 kW
Supply Voltage24 V
Temperature: Operating-25°C to 60°C
Type of electrical connection of main circuitScrew connection
Type of VoltageDC
Voltage type for actuatingDC
Width45 mm
Country of OriginGermany
