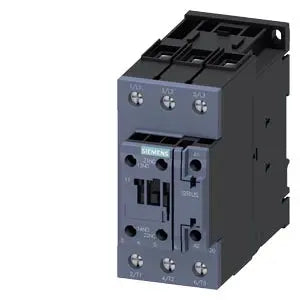

Siemens Power contactor, 3-pole, 24VDC, size S2, 37kW

Product Overview

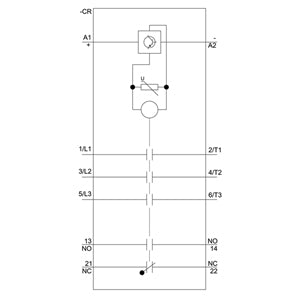

Power contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S2, suitable for PLC outputs. Article Number: 3RT2038-1KB40.

Key Specifications

Electrical Ratings:

• Current rating: 80 A (AC-3e/AC-3)
• Power rating: 37 kW / 400 V
• Control voltage: 24 V DC, 0.8-1.2* Uc
• Poles: 3-pole
• Auxiliary contacts: 1 NO + 1 NC

Construction Features:

• Integrated varistor for coil protection
• Screw terminal connections
• Frame size: S2
• Suitable for PLC outputs

Physical Specifications

• Net weight: 1.126 kg
• Packaging dimensions: 123 × 145 × 65 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4047621010106
• UPC: 804766161032

Compliance Information

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information This product contains the following substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead
• Lead monoxide (lead oxide)
• Melamine

Based on currently available information, these substances do not pose any risk if the articles are used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

CAD Drawings & Technical Documentation

Certificates
