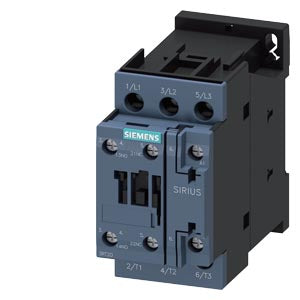

Siemens Power contactor, 3-pole, 1NO + 1NC, size S0, 15kA
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, 1NO + 1NC, size S0, 15kA Part number 3RT2027-1AV00

EAN / Barcode 4011209839809
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 400 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0 Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability.

They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design.

The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation.

In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.

Simple, efficient and always up to date - SIRIUS modular system.

Technical Specifications

Compliance/StandardsIEC 61508-2, EN 60947-1, IEC 60947-4, IEC 61508, IEC 60529, IEC 60947-5, EN 60715, IEC 60068-2, IEC 81346-2
country_of_originGermany
Depth97 mm
descriptionpower contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 400 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0
Height85 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Part Depth (mm)105,50mm
Part Height (mm)92,00mm
Part Width (mm)54,00mm
Rated control supply voltage AC 50 Hz400 V
Rated operation current Ie at AC-1, 400 V50 A
Rated operation current Ie at AC-3, 400 V32 A
Rated operation current Ie at AC-4, 400 V22 A
Rated operation power at AC-3, 400 V15 kW
Rated operation power NEMA14.709976 kW
Type of electrical connection of main circuitScrew connection
Type of VoltageAC
Voltage type for actuatingAC
Weight (g)0,420 Kg
Width45 mm
View complete specifications on Siemens
