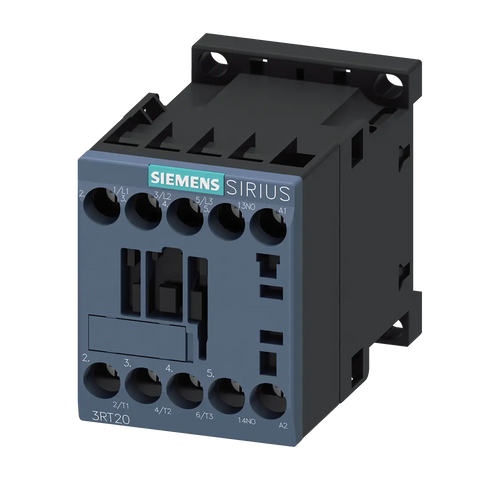

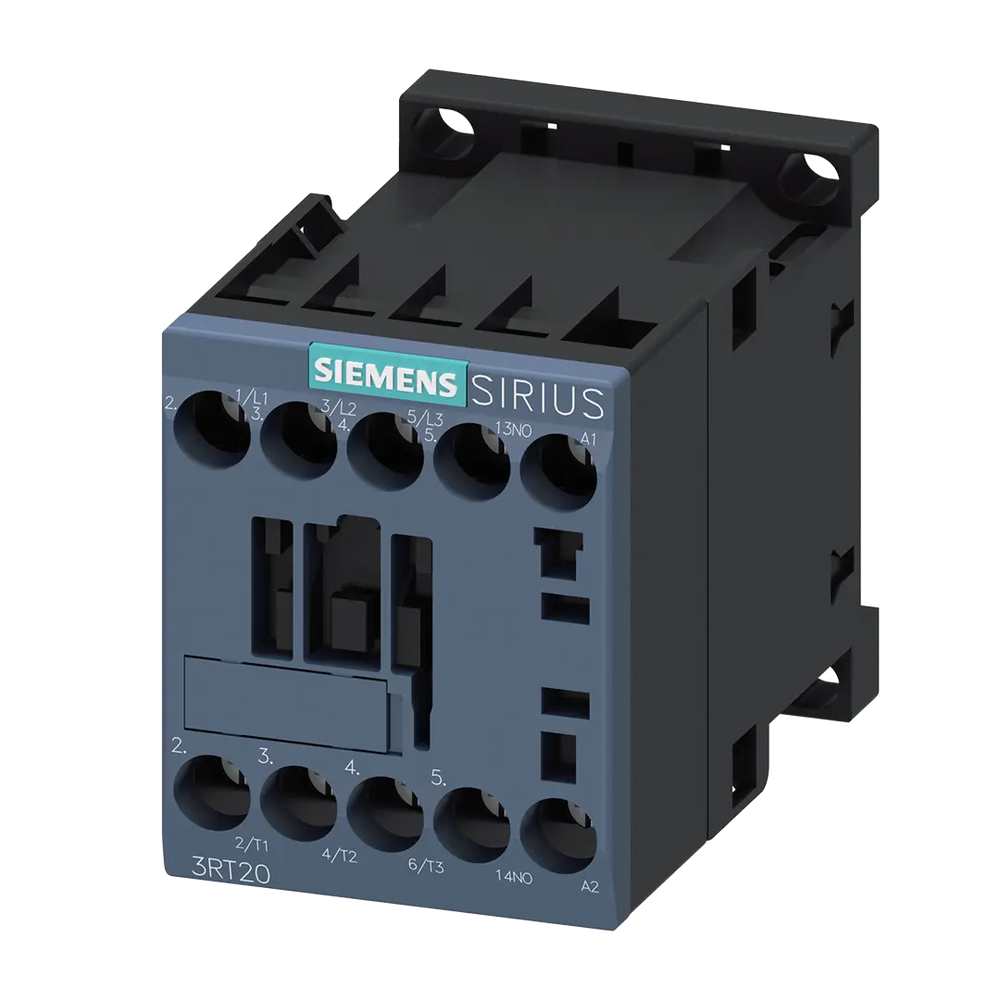

Siemens Power contactor, 3-pole, 24VDC, size S00, 7.5kW Part number 3RT2018-1BB41

EAN / Barcode 4011209784093
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors, offering high performance in a compact design.

Technical details:

  • Type: 3RT2 power contactor
  • Usage: AC-3e/AC-3
  • Rated current: 16 A
  • Motor power: 7.5 kW / 400 V
  • Poles: 3-pole
  • Control voltage: 24 V DC
  • Auxiliary contacts: 1 NO
  • Terminal type: Screw terminal
  • Size: S00
  • Climatic resistance: Climate-resistant
  • Certifications: Approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready: Yes
  • Available with spring-type terminals: Yes

Customer benefits:

  • High contact reliability with compact design
  • Easy combination with other components in the load feeder
  • Factory-tested device combinations for assured performance
  • Integrated auxiliary switches reduce design complexity
  • Front-panel terminals simplify wiring
  • Comprehensive range of standardized accessories
  • Available link modules and function modules reduce wiring expense
  • Efficient and up-to-date modular system

Technical Specifications

Depth73 mm
Height58 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V16 A
Rated operation current Ie at AC-4, 400 V11.5 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power NEMA7.354988 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Width45 mm
Part Width50 mm
Part Height61 mm
Part Depth77 mm
Weight290 g
Country of OriginGermany
