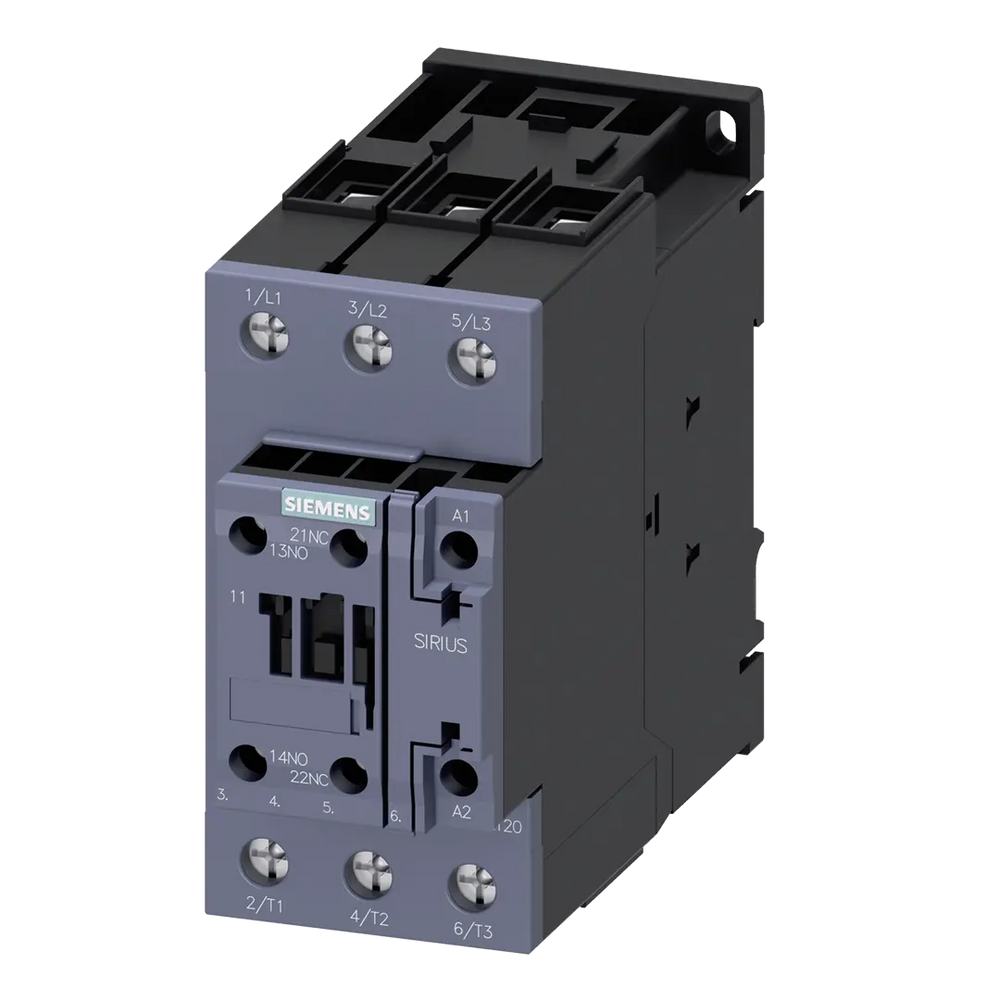

Siemens Power contactor, 3-pole, 230VAC, size S2, 22kW Part number 3RT2036-1AP00

EAN / Barcode 4011209939820
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high performance in a compact design.

Technical details:

  • Type: AC-3e/AC-3
  • Rated current: 51 A
  • Power: 22 kW / 400 V
  • Pole configuration: 3-pole
  • Control voltage: 230 V AC
  • Frequency: 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Connection type: Screw terminal
  • Size: S2
  • Climate-resistant: Yes
  • Approved for worldwide use: Yes (e.g. IEC and UL/CSA)
  • IE3/IE4-ready: Yes

Customer benefits:

  • Optimally coordinated products within the modular SIRIUS system.
  • High contact reliability in a compact design.
  • Variety of combinations with other components in the load feeder.
  • Factory tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
  • Standardized accessories across all sizes.
  • Link modules, function modules, and SIRIUS 3RV29 infeed system reduce wiring expense.
  • Simple, efficient, and always up to date with the SIRIUS modular system.

Technical Specifications

Depth130 mm
Height114 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V70 A
Rated operation current Ie at AC-3, 400 V51 A
Rated operation current Ie at AC-4, 400 V41 A
Rated operation power at AC-3, 400 V22 kW
Rated operation power NEMA29.419952 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width55 mm
View complete specifications on Siemens
