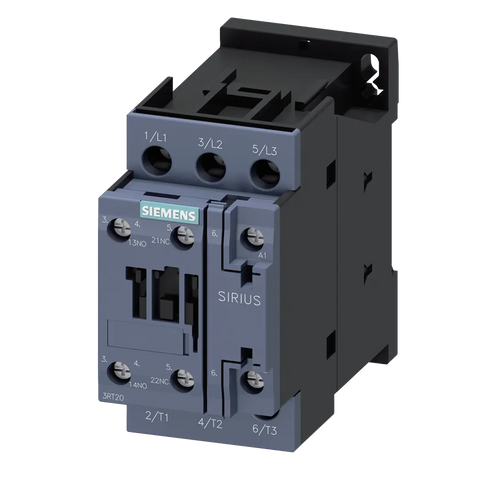

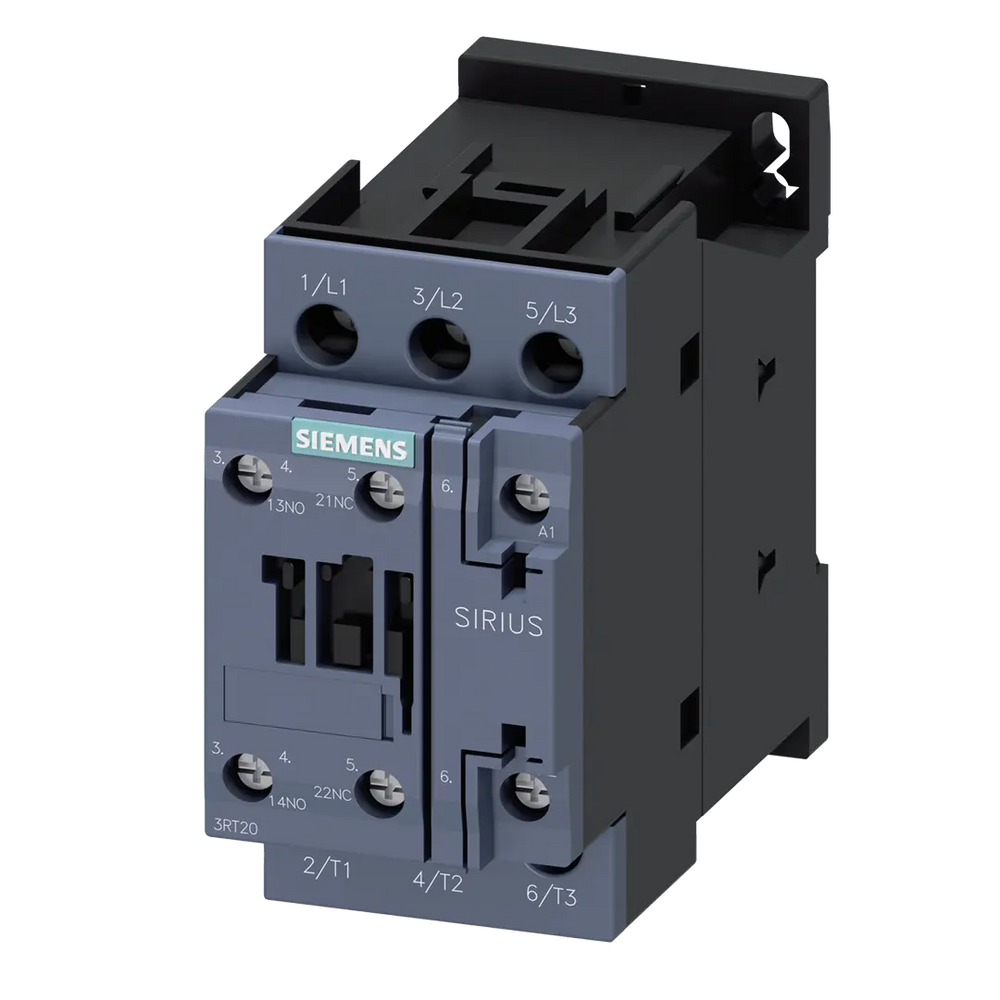

Siemens Power contactor, 3-pole, 230VAC, size S0, 15kW Part number 3RT2027-1AP00

EAN / Barcode 4011209789647
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor, AC-3e/AC-3

The SIRIUS 3RT2 power contactor is designed for switching motors, combining compact design with high contact reliability.

Technical details:

  • Rated current: 32 A
  • Power: 15 kW / 400 V
  • Number of poles: 3-pole
  • Control voltage: 230 V AC
  • Frequency: 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Connection type: screw terminal
  • Size: S0
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready

Customer benefits:

  • Optimal performance with a compact design and high contact reliability
  • Compatibility with a variety of other components in the load feeder
  • Integrated auxiliary switches reduce design complexity
  • Front-panel terminals simplify wiring
  • Available with spring-type terminals for fast and maintenance-free connection
  • Standardized comprehensive range of accessories for all sizes
  • Link and function modules to considerably reduce wiring expense
  • Part of the simple, efficient, and up-to-date SIRIUS modular system

Technical Specifications

Connection Style3 NO / 3 Poles
Connection TypeScrew type terminals
Current Rating / Rated Current0.1 - 50 A

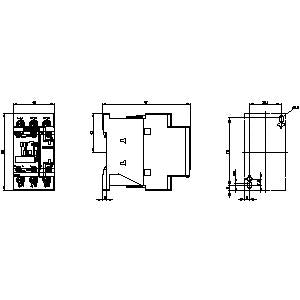

Depth97 mm
Height85 mm
IP RatingIP20
Max Frequency250 1/h - 1000 1/h
Modular versionYes
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating Period10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical)
Operating Voltage690 VAC
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Packaging size / unitpc(s)
Part Depth (mm)97mm
Part Height (mm)85mm
Part Width (mm)45mm
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V50 A
Rated operation current Ie at AC-3, 400 V32 A
Rated operation current Ie at AC-4, 400 V22 A
Rated operation power at AC-3, 400 V15 kW
Rated operation power NEMA14.709976 kW
Supply Voltage230 V at 50 Hz
Temperature: Operating-25°C to 60°C
Type of electrical connection of main circuitScrew connection
Type of VoltageAC
Voltage type for actuatingAC
Width45 mm
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
