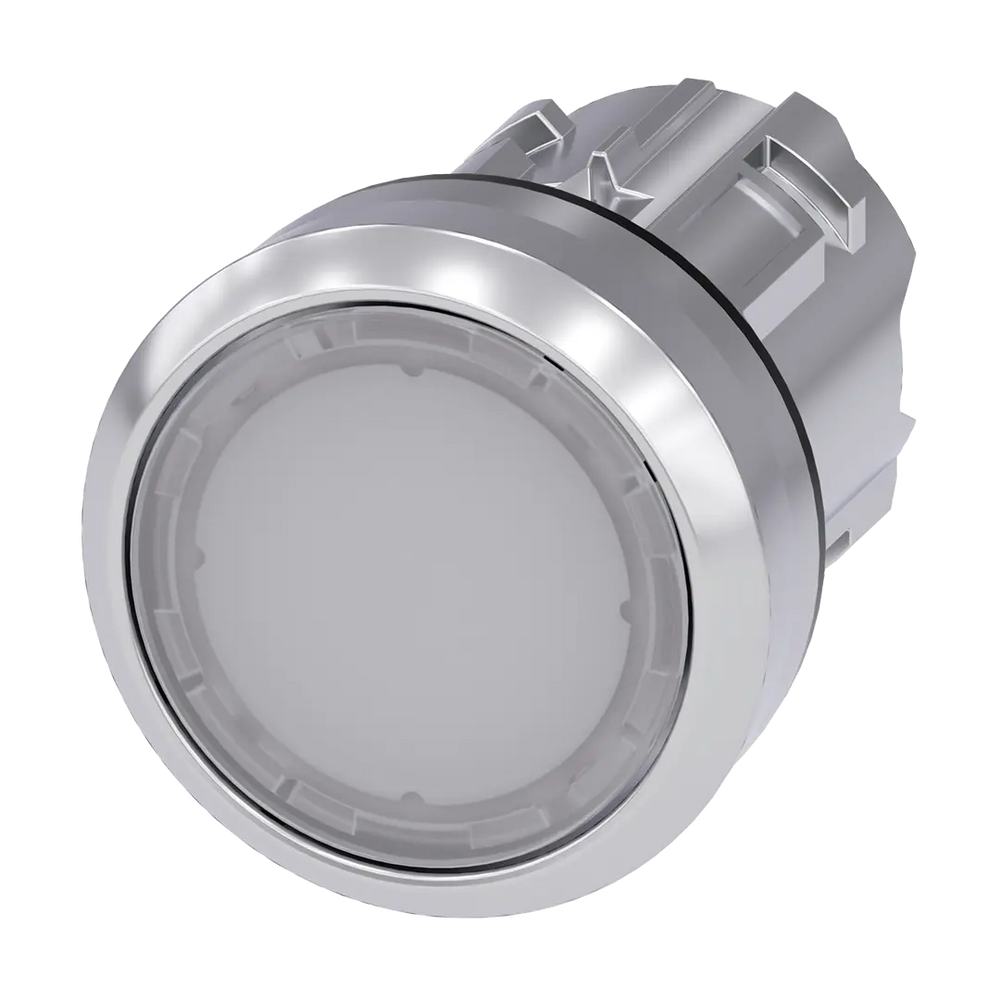

Siemens Illuminated pushbutton, white, round, 22mm

Product Overview

Illuminated pushbutton, 22 mm, round, metal, shiny, white, pushbutton, flat, momentary contact type. Part of the SIRIUS ACT series, this illuminated pushbutton combines switching functionality with visual indication capabilities in distinctive white color. Constructed with genuine metal and engineered with smart functions, these pushbuttons have been extensively tested to ensure reliability for mission-critical operations. The innovative snap-on concept enables effortless one-handed installation without special tools.

Article Number: 3SU1051-0AB60-0AA0

Technical Specifications:

• Button Type: Illuminated pushbutton with flat design
• Design: Round, flush mount
• Material: Metal, shiny high-gloss finish
• Button Color: White (neutral/general purpose indication)
• Front Ring: Chrome metal finish
• Contact Type: Momentary contact with spring return
• Mounting Diameter: 22.3 mm
• Installation Dimensions: 29.5 mm W x 24.3 mm D
• Mounting Height: 11 mm
• Command Positions: 1
• Illumination: Suitable for LED lighting
• User Replaceable: Button can be replaced from front

Protection & Ratings:

• Protection Rating: IP66/IP67/IP69/IP69K
• NEMA Rating: 1/2/3/3R/4/4X/12/13
• Operating Temperature: -25 to 70°C
• Environmental Conditions: Extensively element-tested for reliability
• High-Pressure Cleaning: Suitable for high-pressure jet cleaning
• Chemical Resistance: Resistant to dust, oils, and caustic solutions

Physical Properties:

• Net Weight: 0.035 kg
• Packaging Dimensions: 28.00 x 35.00 x 28.00 mm
• EAN: 4011209965720
• UPC: 804766068577
• Country of Origin: China
• Packaging Quantity: 1 piece

Design Features:

• SIRIUS ACT Series: Modern design combining style, intelligence, and physical toughness
• Dual Functionality: Functions as both switch actuator and display device via LED module
• Snap-On Installation: Innovative one-handed installation concept without special tools
• Grove-Free Mounting: Can be mounted into grove-free holes (notching not required)
• Twist Prevention: Full twist prevention already integrated
• Self-Holding Function: Actuator self-holds during mounting process
• Front Access: User-replaceable components accessible from front panel
• Metal Construction: Durable shiny metal finish with chrome front ring

Applications:

• General Purpose Operations: White color ideal for neutral and general-purpose applications
• Status Indication: Clear visibility for status and operational displays
• Industrial Control Systems: Switching and controlling electrical loads
• Machine Operation: Momentary control functions with visual feedback
• Multi-Purpose Control: Versatile applications requiring neutral color coding
• Control Panels: Professional-grade control interfaces
• Manufacturing Equipment: Reliable operation in demanding environments

Color Significance:

• White Indication: Neutral color suitable for general-purpose and multi-function applications
• High Visibility: Excellent visibility and clarity, even in dimly lit environments
• Universal Application: Suitable for applications where specific color coding is not required
• Clean Appearance: Professional white finish complements modern control panel designs
• Versatile Integration: Adapts to various industrial and commercial environments

Illumination Features:

• LED Integration: Compatible with LED modules for visual indication
• Dual Purpose: Can function as indicator light when used with fixed button variant
• Status Display: Visual feedback for operational states
• Smart Functions: Engineered with communication capabilities
• Lighting Ready: Designed for illumination applications
• Clear Indication: White color provides excellent contrast for illuminated states

Installation Benefits:

• One-Handed Installation: Snap-on concept for effortless mounting
• No Special Tools: Installation possible without additional equipment
• No Notching Required: Grove-free hole mounting capability
• Front Maintenance: User-serviceable components from front panel
• Secure Mounting: Self-holding actuator prevents dropping during installation
• Industrial Grade: Suitable for use in industry and outdoors

Environmental Resistance:

• Dust Protection: Complete protection against dust ingress
• Oil Resistance: Reliable operation in presence of industrial oils
• Chemical Resistance: Withstands exposure to caustic solutions
• High-Pressure Cleaning: Can be cleaned with high-pressure jets
• Outdoor Suitability: Designed for both indoor and outdoor installations
• Temperature Stability: Maintains performance across wide temperature range

System Integration:

• Modular Design: Individual device, holder and modules ordered separately
• Multiple Versions: Available in various colors, illuminated/non-illuminated options
• Flexible Configuration: With/without labeling, latching/momentary actuation
• Professional Installation: Various push button and front ring heights available
• SIRIUS ACT Performance: Simply assembled, simply strong, simply perfect

Professional Features:

• Quick Response: Flat momentary contact type ensures responsive operation
• Heavy-Duty Construction: Metal construction stands up to intensive use
• Modern Design: Round shape adds contemporary touch to control panels
• Professional Appearance: Sleek design seamlessly blends into any control panel
• Global Approvals: Worldwide product approvals for international applications

Compliance & Environmental:

• Product Lifecycle: PM300: Active Product
• RoHS Compliance: Since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back Obligation: Yes
• REACH Article 33: Compliant - No SVHC substances currently identified

Classification:

• eClass: 27-37-12-10 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC000221 (versions 7, 8, 9)
• UNSPSC: 39-12-22-21
