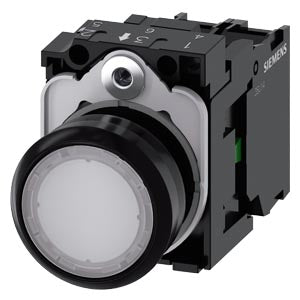

Siemens Illuminated pushbutton, momentary contact, white, 1NO

Product Overview

Illuminated pushbutton, 22 mm, round, plastic, white, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 24 V AC/DC, screw terminal.

Technical Specifications

Article Number: 3SU1102-0AB60-1BA0

Product Description: Illuminated pushbutton, 22 mm round plastic white pushbutton with flat design and momentary contact type configuration. Features integrated holder with 1 normally open (NO) contact and LED module with integrated LED for 24 V AC/DC operation using screw terminal connections.

Key Features:

• 22 mm round plastic construction
• White illuminated pushbutton with flat design
• Momentary contact operation
• Single normally open (NO) contact
• Integrated LED module for 24 V AC/DC
• Screw terminal connection type
• Complete with holder assembly

Technical Data:

• Net Weight: 0.054 kg
• Packaging Dimensions: 50.00 x 100.00 x 30.00 mm
• EAN: 4011209957190
• Country of Origin: Germany
• Product Lifecycle: PM300: Active Product

Compliance Information:

• Export Control Regulations: AL: N / ECCN: N
• RoHS Compliance: Since 01.10.2014
• WEEE Take-Back Obligation: Yes
• IP Rating: IP67/IP69K

REACH Article 33 Information: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current available information, these substances do not pose risk when articles are used as intended (including disposal). Please refer to product documentation for additional information.

Classification Standards:

• eClass: 27-37-12-28 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC001028 (versions 7, 8, 9)
• UNSPSC: 39-12-22-16

Download existing graphical data for this product:

Product Datasheet

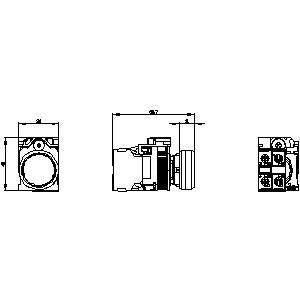

CAD Drawing Files
