Description

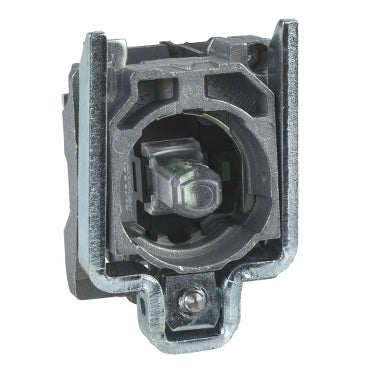

xThis Harmony XB4 light block features a metal body and an integral red LED. It operates on 24 V AC/DC and includes a 1 NO slow-break contact, making it suitable for standard industrial signaling applications.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / GL / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL listed / UL 508 |
| Temperature: Operating | -40°C to 70°C |
| Weight (g) | 64g |
| Tightening Torque | 0.8 - 1.2Nm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Rated Operating Voltage | 24 V (AC/DC) |
| Current Rating / Rated Current | 3 A at 240 V / 6 A at 120 V / 0.1 A at 600 V / 0.27 A at 250 V /0.55 A at 125 V /1.2 A at 600 V |
| Current Consumption | 18 mA |
| Warranty | 18 Months |
