Description

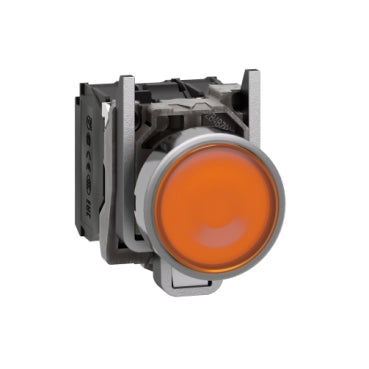

xThis illuminated orange push button from Harmony XB4 features 1 NO and 1 NC contacts, and is compatible with 24V AC/DC systems. It offers IP66/IP67/IP69 protection and a durable spring return mechanism.
Specifications
x| IP Rating / Detailed | IP66 IEC 60529 IP67 IP69 IP69K |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL Listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 101mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 97g |
| Tightening Torque | 0.8 - 1.2 Nm |
| Material: Product | Chromium-plated metal |
| Connection Style | Standard contacts |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Supply Voltage | 19.2 to 30 VDC / 21.6 yo 26.4 VAC |
| Current Rating / Rated Current | 3 A at 240 V / 6 A at 120 V, / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V |
| Current Consumption | 18 mA |
| Operating Period | Mechanical Durability 10000000 cycles / Service Life 100000 h at rated voltage and 25 °C |
| Warranty | 18 Months |
| Colour | Orange |
