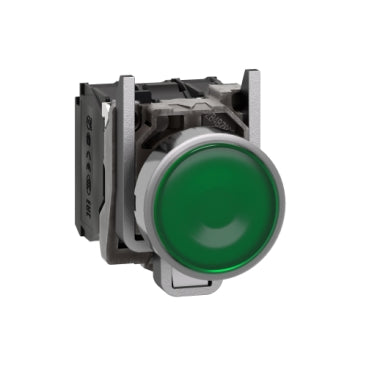

Schneider Illuminated pushbutton, green, 24V Part number XB4BW33B5

This green flush illuminated push button from Harmony XB4 is designed with 1 NO and 1 NC contacts, suitable for 24V AC/DC applications. It includes a spring return operator and provides IP66/IP67/IP69 protection.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 5 left in stock
Description
Description
x
This green flush illuminated push button from Harmony XB4 is designed with 1 NO and 1 NC contacts, suitable for 24V AC/DC applications. It includes a spring return operator and provides IP66/IP67/IP69 protection.
Specifications
Specifications
x
IP RatingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Country of OriginGermany
Compliance/CertificationsBV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed
Temperature: Operating-40°C to 70°C
Part Depth (mm)57mm
Part Width (mm)30mm
Part Height (mm)47mm
Weight (g)97g
Tightening Torque0.8 - 1.2 Nm
Material: ProductChromium-plated metal
Screw TypeCross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Supply Voltage19.2 to 30 VDC / 21.6 yo 26.4 VAC
Current Rating / Rated Current3 A at 240 V / 6 A at 120 V, / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V
Current Consumption18 mA
Operating PeriodMechanical Durability 10000000 cycles / Service Life 100000 h at rated voltage and 25 °C
Warranty18 Months
ColourGreen
