Description

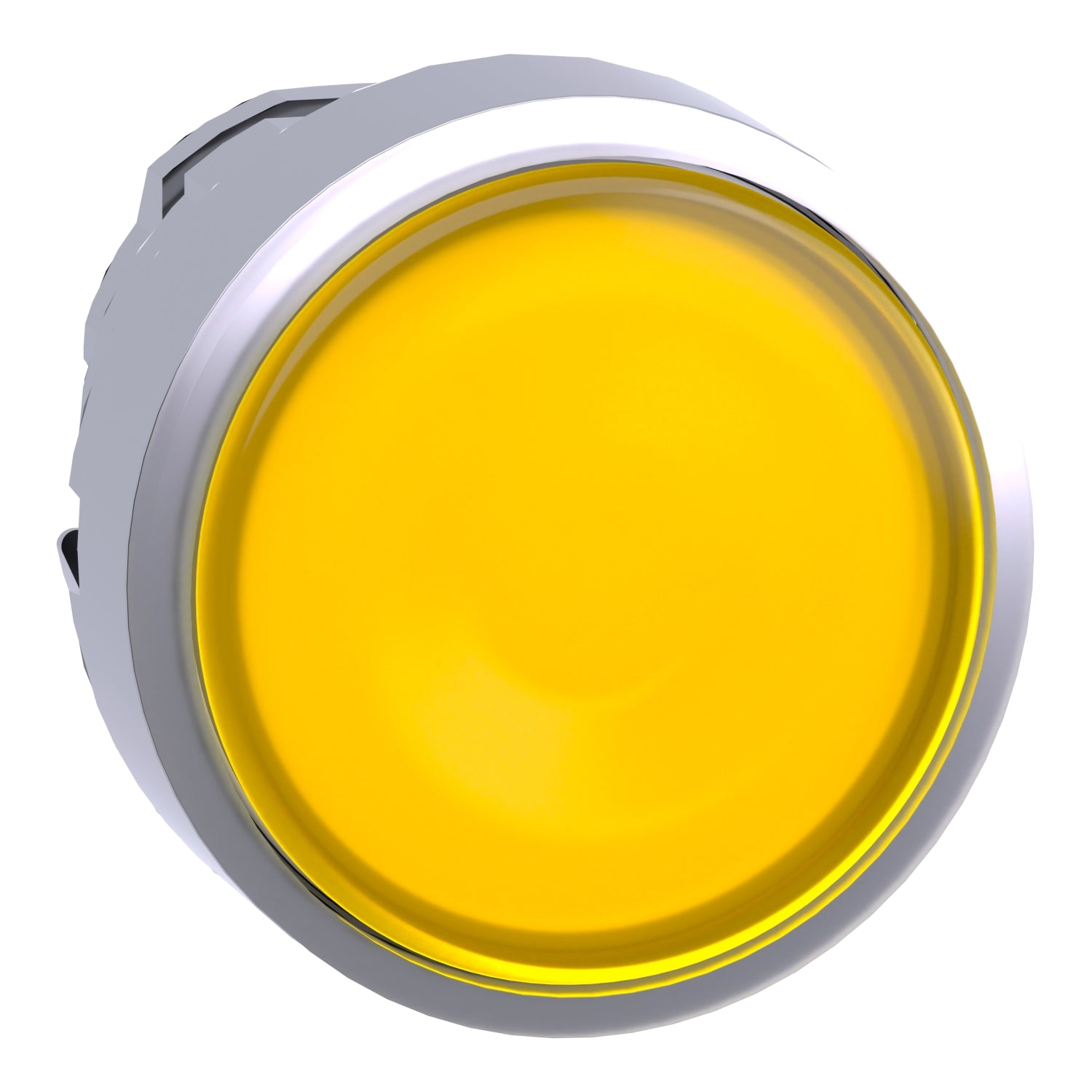

xThis illuminated push button head is a metal, yellow-coloured component with a 22mm mounting diameter, designed for integration into control panel push button assemblies. It carries an IP66 rating and operates across a temperature range of -40 to 70°C, making it suitable for use in demanding industrial environments. The unit measures 29mm in width and height, with a depth of 30mm, and is intended for panel-mounted operator control stations requiring illuminated actuation.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Operating temperature: -40…70 °C
- Colour: Yellow
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | JIS C8201-5-1,CSA C22.2 No 14,IEC 60947-5-4,IEC 60947-5-5,IEC 60947-1,IEC 60947-5-1,UL 508,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 30mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Operating Period(Mech) | 10000000 cycles |
| Colour | Yellow |
Documents
