Schneider Illuminated push button head, orange, Ø 22
Schneider Illuminated push button head, orange, Ø 22

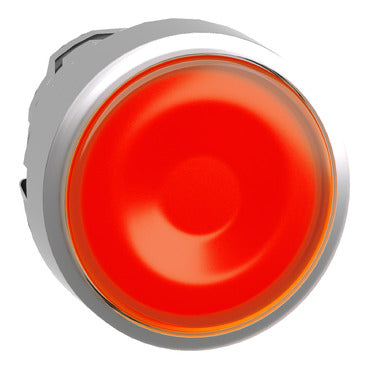

Schneider Illuminated push button head, orange, Ø 22 Part number ZB4BW353

This Harmony XB4 push button head is designed for illuminated applications with an orange flush lens and a universal LED. It offers IP66/IP67/IP69 protection and is built for industrial settings with a spring return mechanism.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 10 left in stock
Description
Description
x
This Harmony XB4 push button head is designed for illuminated applications with an orange flush lens and a universal LED. It offers IP66/IP67/IP69 protection and is built for industrial settings with a spring return mechanism.
Specifications
Specifications
x
IP Rating / DetailedIP66 IEC 60529 IP67 IP69 IP69K
Compliance/CertificationsBV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed
Temperature: Operating-40°C to 70°C
Part Depth (mm)30mm
Part Width (mm)29mm
Part Height (mm)29mm
Weight (g)26g
Material: ProductChromium-plated metal
Operating Period10000000 cycles
Warranty18 Months
ColourOrange
Documents
Documents
x
Download Datasheet
