Description

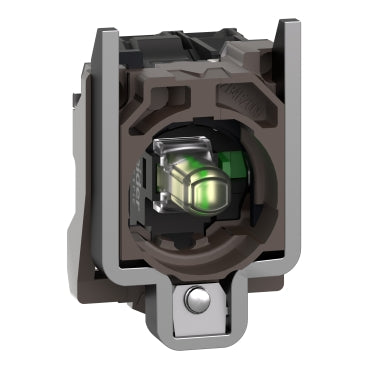

xThis Schneider Electric Harmony XB4 assembly features a 24V AC/DC illuminated push button with 1 NO contact and includes a fixing collar made from Zamak for durability. It supports slow-break operation and offers a mechanical durability of up to 5 million cycles.
Specifications
x| IP Rating | IP66 conforming to IEC 60529\n IP67\n IP69\nIP69K NEMA 13 NEMA 4X |
| Country of Origin | France |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL / UL 508 / UL Listed |
| Temperature: Operating | -40°C to 70°C |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 64g |
| Tightening Torque | 0.8 - 1.2 Nm |
| Screw Type | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Type of Voltage | 19-30 VDC / 21-26.4 VAC |
| Supply Voltage | 24 V |
| Current Rating / Rated Current | 3 A 240 V / 6 A 120 V/ 0.1 A 600 V / 0.27 A 250 V / 0.55 A 125 V / 1.2 A 600 V |
| Current Consumption | 18 mA |
| Operating Period | Electrical Durability 1 000 000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Warranty | 18 Months |
| Colour | White |
