Product Overview

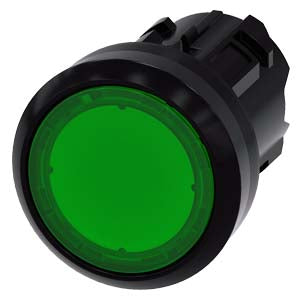

The SIRIUS ACT 3SU1001-0AB40-0AA0 is a premium 22 mm round illuminated pushbutton designed for industrial control applications requiring visual feedback and go/start signaling. This green, plastic flat momentary contact pushbutton with integrated illumination capability combines robust construction with clear visual confirmation signals for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with flat button design
• High-grade plastic front ring and collar construction
• Green actuator button with black plastic front ring
• Integrated illumination for clear visual status feedback
• Snap-on mounting system without tools required
• Translucent button cap for optimal light transmission

Operating Mechanism:

• Momentary Contact Operation: Returns to normal state when released
• Illuminated Design: Built-in LED compatibility for status indication
• Visual Feedback: Clear illumination through green translucent actuator
• Status Indication: Ideal for start/run signals and positive operational feedback
• Green Color Coding: Universal indication for go, start, run, or safe operational functions

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Front Opening: 29.5 mm width x 11 mm height
• Contact Configuration: 1 NO (Normally Open) - momentary
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)
• Illumination: LED compatible for status indication

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Start and run signaling systems
• Manufacturing equipment with positive operational status indication
• Safety systems with illuminated confirmation functions
• Control panels requiring start/go indication
• Process control systems with operational visualization
• Equipment requiring illuminated operational feedback
• Green-coded start and operational identification systems
• Applications requiring momentary control with visual confirmation

Illumination Features

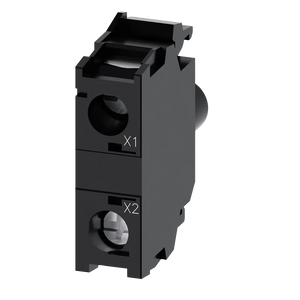

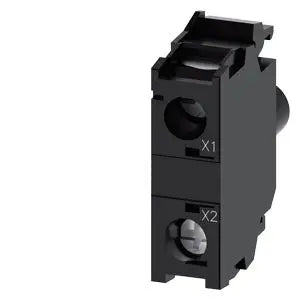

• LED Integration: Compatible with 3SU14 series LED modules
• Visual Status: Clear indication of operational or ready state
• Green Color Coding: Excellent light transmission through green actuator for go/start signals
• Energy Efficient: LED technology for low power consumption
• Long Life: Extended operational life with LED illumination
• High Visibility: Optimal recognition for positive operational feedback

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Illumination Integration: Easy LED module integration for status indication

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.015 kg
• Country of Origin: China
• EAN: 4011209955721
• Package Dimensions: 30 x 100 x 30 mm
