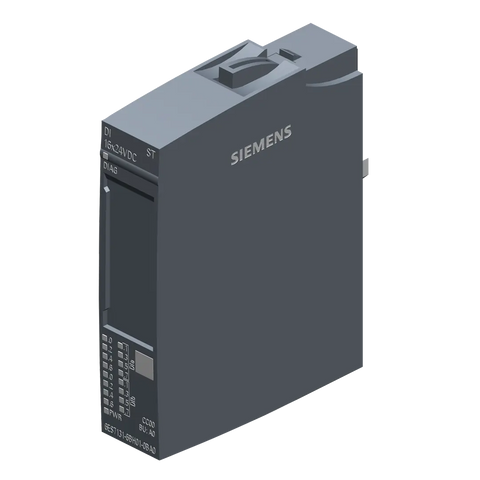

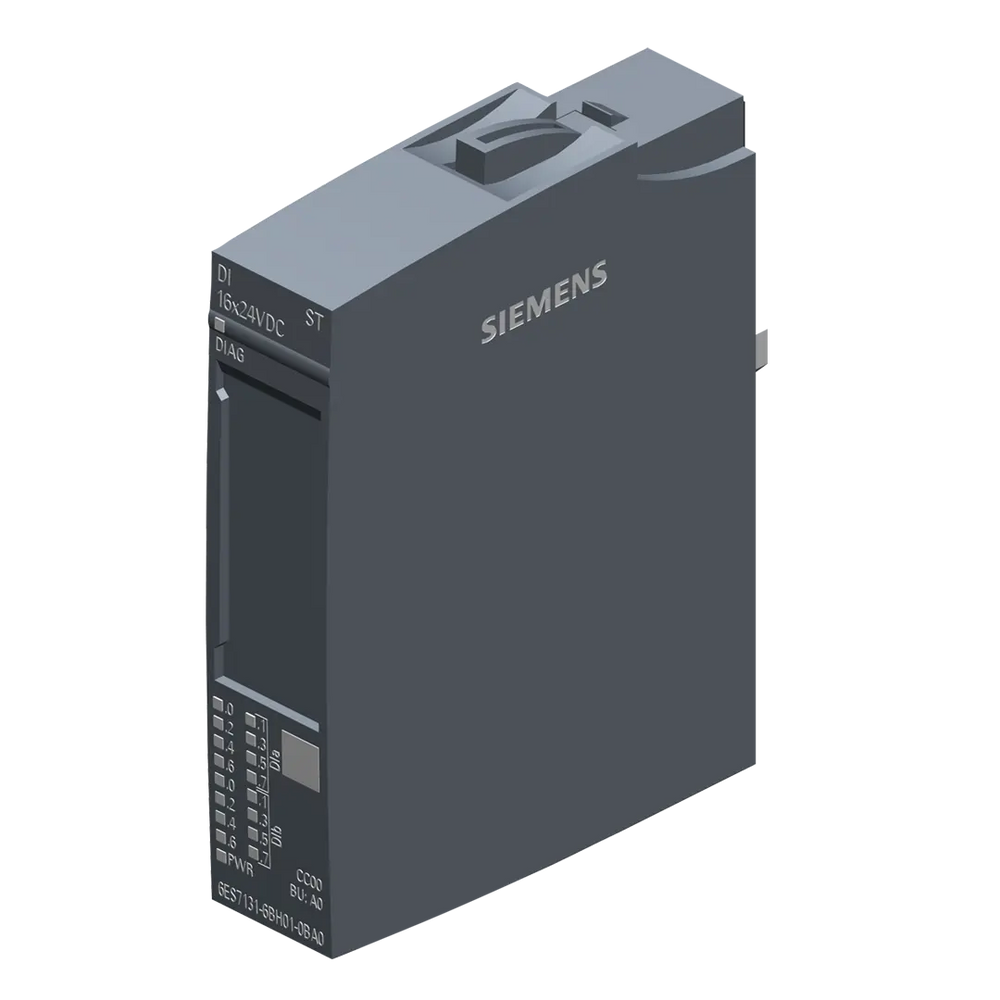

Siemens Digital input module, standard, DI 16x 24VDC

Product Overview

The SIMATIC ET 200SP Digital Input Module DI 16x 24V DC Standard delivers high-density digital signal acquisition with 16 channels of 24V DC input capability for comprehensive industrial automation applications. Featuring Type 3 (IEC 61131) sink input configuration with PNP P-reading functionality, this module provides reliable digital signal processing for sensors, switches, and field devices within the ET 200SP distributed I/O system. Enhanced with advanced diagnostics including wire break and supply voltage monitoring for superior system reliability.

Key Features

• 16-Channel Digital Input: High-density 24V DC sink inputs with Type 3 (IEC 61131) specification for comprehensive signal acquisition
• PNP P-Reading Configuration: Sink input design optimized for PNP sensors and switching devices with positive logic reading
• Adjustable Input Delay: Configurable input delay time from 0.05ms to 20ms for noise filtering and signal conditioning
• Advanced Diagnostics: Comprehensive diagnostics including wire break detection and supply voltage monitoring
• BU Type A0 Compatibility: Designed for use with SIMATIC ET 200SP BaseUnit type A0 configurations
• Color Code CC00: Standardized color coding for simplified identification and maintenance procedures
• Hot-Swappable Design: Module replacement during operation without affecting system functionality or wiring

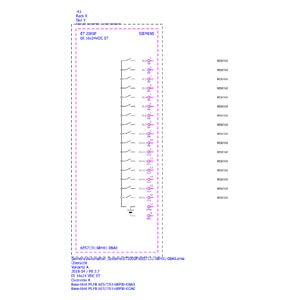

Technical Specifications

• Input Configuration: 16 digital inputs | Input Voltage: 24V DC
• Input Type: Type 3 (IEC 61131) sink input (PNP) | Weight: 0.035 kg
• Input Delay Time: 0.05-20ms (configurable) | Protection Rating: IP20
• BaseUnit Compatibility: BU type A0 | Color Code: CC00
• Connection Type: Plug-in connection | Signal Processing: P-reading (positive logic)

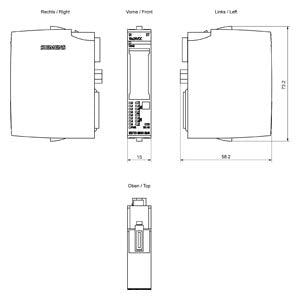

• Package Dimensions: 6.90 x 7.50 x 2.40 cm | Operating Temperature: Standard industrial range
• ATEX Rating: Cat. 3G (gas explosion protection) | Dust Protection: None

Applications & Integration

Primary Applications:

• Industrial automation systems requiring high-density digital input processing
• Sensor interface for proximity sensors, limit switches, and photoelectric devices
• Process control systems with PNP sensor configurations
• Manufacturing automation requiring reliable digital signal acquisition

System Compatibility:

• Compatible with SIMATIC ET 200SP BaseUnit type A0
• Integration with SIMATIC S7-1500 and S7-1200 controllers
• PROFINET communication protocol support
• TIA Portal engineering environment compatibility
• Hot-swappable operation with multi-hot swapping capability

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4047623408550 | UPC: 804766529009
• RoHS Compliant: Since 15.09.2017 | WEEE: Take-back obligation applicable
• REACH: Contains lead and lead monoxide (lead oxide) above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N

Package Contents

• 1 × ET 200SP Digital Input Module DI 16x 24V DC Standard, technical documentation, installation accessories
