Siemens Contactor, 4-pole, screw, size S00, 400V, 22A
View on Siemens 📄 Datasheet
Siemens

Siemens Contactor, 4-pole, screw, size S00, 400V, 22A Part number 3RT2317-1BB40

EAN / Barcode 4011209785175
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Product Overview

Contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 24 V DC, screw terminal, size: S00. Article Number: 3RT2317-1BB40.

Key Specifications

Electrical Ratings:

  • Current rating: 22 A (AC-1)
  • Voltage rating: 400 V / 40 °C
  • Control voltage: 24 V DC
  • Poles: 4-pole
  • Utilization category: AC-1

Construction Features:

  • Screw terminal connections
  • Frame size: S00
  • Compact design for space-efficient installation

Physical Specifications

  • Net weight: 0.294 kg
  • Packaging dimensions: 50 × 61.5 × 77.5 mm
  • Country of origin: Germany

Product Identifiers

  • EAN: 4011209785175
  • UPC: 662643917390

Compliance Information

  • RoHS compliant since 01.10.2009
  • WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

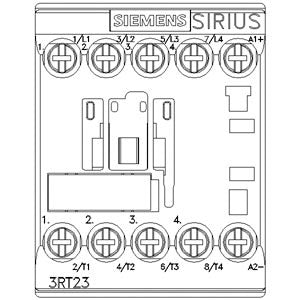

CAD Drawings & Technical Documentation

Certificates

Technical Specifications

Depth73 mm
Height58 mm
Modular versionYes
Number of normally open contacts as main contact4
Operating voltage AC 50 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power at AC-4, 400 V4 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Width45 mm
Part Width50 mm
Part Height61 mm
Part Depth77 mm
Weight294 g
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
