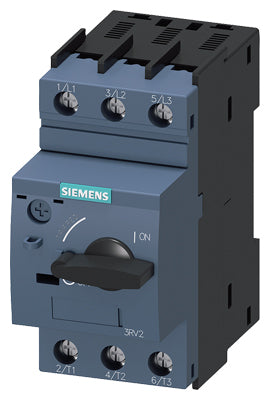

Siemens Circuit breaker for transformer protection, screw, size S00 Part number 3RV2411-0JA10

Product Overview

The Siemens 3RV2411-0JA10 is a 3-pole motor-protection circuit breaker (MPCB) from the SIRIUS 3RV2 series, designed for transformer and motor protection. Sized S00, it provides adjustable thermal overload protection (0.7 … 1 A) and magnetic short-circuit protection (instantaneous release at 21 A). The device is suitable for supply voltages up to 690 V AC and supports standard industrial switching capacity, with a short-circuit breaking capacity up to 100 kA. Compact and DIN-rail mountable, 3RV2411-0JA10 is ideal for protecting small motors, transformers, or control-circuit feeders in industrial installations.

Key Features

• SIRIUS 3RV2 series 3-pole motor/transformer protection circuit breaker
• Circuit breaker size S00 — suited for compact panels and starter combinations
• Adjustable thermal overload release: 0.7 … 1 A
• Magnetic instantaneous short-circuit release: 21 A
• Suitable for AC voltages up to 690 V
• Short-circuit breaking capacity (Icu / Ics): 100 kA at rated voltages
• Standard switching capacity, screw-terminal connections for main circuit
• DIN-rail mountable — easy installation in standard control cabinets
• Protection class: IP20 (front), touch-safe terminals
• Overload protection, phase-failure detection (phase loss sensitivity)
• Mechanical service life: approx. 100,000 switching cycles

Technical Specifications

• Article Number: 3RV2411-0JA10
• Product Type: Motor/Transformer Protection Circuit Breaker (MPCB)
• Poles (Main Contacts): 3-pole
• Overload Release Range: 0.7 … 1 A (thermal) — adjustable
• Short-Circuit (Magnetic) Trip Setting: 21 A
• Rated Operational Voltage: up to 690 V AC, 50/60 Hz
• Short-Circuit Breaking Capacity (Icu/Ics): 100 kA at 240–690 V AC
• Mounting: 35 mm DIN rail or control cabinet mounting
• Terminal Type: Screw terminals (top and bottom)
• Terminal Conductor Size: 2× (0.75 – 2.5 mm²) or 2× 4 mm² solid/stranded / 2× (AWG 18–14 or 12) depending on conductor type
• Dimensions (H × W × D): 97 × 45 × 97 mm
• Ambient Operating Temperature: –20 °C … +60 °C
• Protection Class: IP20 (front & terminals)

Compliance & Standards

• Part of Siemens SIRIUS 3RV2 protection device family
• Conforms to IEC/EN standards for motor protection and circuit breakers
• Phase-failure sensitive — provides protection in case of phase loss
• Insulation and surge-voltage resistance: 690 V rating, 6 kV surge withstand
• Mechanical and electrical endurance tested for 100,000 switching cycles — reliable for industrial duty

Applications

The 3RV2411-0JA10 is well suited for protecting small motors, transformers, and feeder circuits in industrial plants, control cabinets, pump systems, HVAC units or small machinery. It enables overload and short-circuit protection, phase-loss detection and provides a compact, DIN-rail-mountable solution where space is limited. Ideal for motor-starter assemblies, control-panel feeders, and transformer protection applications.
