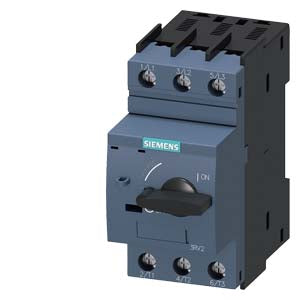

Siemens Circuit breaker for starter combination, size S00, 12.5A Part number 3RV2311-1KC10

Product Overview

Circuit breaker size S00 for starter combination Rated current 12.5 A N-release 163 A screw terminal Standard switching capacity

Key Features

• Size: S00 (45 mm width)
• Rated Current: 12.5 A (fixed)
• Short-circuit Release: 163 A (N-release)
• Connection System: Screw-type terminal
• Number of Poles: 3-pole
• Rated Operational Voltage: Up to 690 V AC
• Rated Frequency: 50/60 Hz
• Application: Starter combination circuit breaker

Technical Specifications

Standards Compliance:

• IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• UL 508, CSA C22.2 No. 14
• UL 489 / CSA rating compliant
• Type E protection certified (Self Protected Combination Motor Controller)

Operating Conditions:

• Ambient Temperature: -20°C to +60°C
• Storage Temperature: -50°C to +80°C
• Degree of Protection: IP20
• Installation Altitude: Maximum 2,000 m above sea level
• Relative Humidity: 10-95% during operation
• Ambient compensated up to 140°F (applies to side by side mounting)
• Net Weight: 0.345 kg

Performance Features:

• Magnetic short-circuit protection
• Integrated locking device
• ON/OFF rotary handle with lockout
• Adjustment dial for setting to motor FLA
• Test trip function for operational verification
• Suitable for starter combinations

Screw Terminal Connection System

• Tool Required: Standard screwdriver
• Tightening Torque: 0.8-1.2 N·m for main contacts
• Vibration Resistant: Secure connection in industrial environments
• Temperature Independent: Consistent connection across temperature ranges
• Reliable Connection: Proven screw terminal technology

Conductor Cross-sections:

• Solid and stranded: 2 x (1.0 to 6.0) mm²
• Finely stranded with end sleeve: 2 x (1.0 to 6.0) mm²
• AWG cables: 2 x (18 to 10)
• Maximum conductor compatibility for higher current S00 applications

Applications

• Starter combination protection
• Motor control group installation
• Motor disconnect and overload protection
• Tap conductor protection in Group Installation according NEC
• Medium-high motor protection (up to 7.5 kW)
• Control circuit switching
• Type E motor controller applications
• Industrial automation and control systems

Motor Power Ratings

• 230V AC: 3 kW (4 HP)
• 400V AC: 5.5 kW (7.5 HP)
• 500V AC: 7.5 kW (10 HP)
• 690V AC: 7.5 kW (10 HP)

UL/CSA Motor Ratings

• 115V: 0.5 HP (single-phase)
• 230V: 2 HP (single-phase)
• 200/208V: 3 HP (3-phase)
• 230V: 3 HP (3-phase)
• 460V: 7.5 HP (3-phase)
• 575V: 10 HP (3-phase)

Short-Circuit Breaking Capacity (Icu)

• 100 kA at 240V AC
• 100 kA at 400V AC
• 50 kA at 440V AC
• 42 kA at 500V AC
• 6 kA at 690V AC

Service Short-Circuit Breaking Capacity (Ics)

• 100 kA at 240V AC
• 100 kA at 400V AC
• 50 kA at 440V AC
• 42 kA at 500V AC
• 4 kA at 690V AC

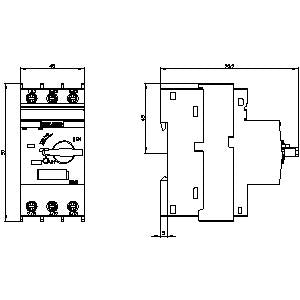

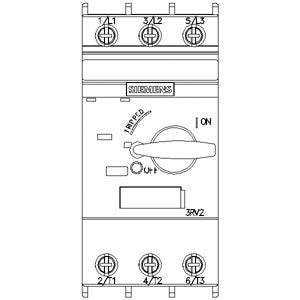

Physical Dimensions

• Height: 97 mm
• Width: 45 mm
• Depth: 97 mm
• Package Dimensions: 49.00 x 102.00 x 102.00 mm

Installation

• Mounting: 35 mm DIN rail according to DIN EN 60715
• Side-by-side mounting capability
• Snap-on mounting for easy installation and removal
• Top and bottom terminal arrangement
• Any mounting position acceptable

Compliance & Environmental

• Country of Origin: Germany
• RoHS Compliance: Since 01.10.2009
• UL/CSA Approvals: Available for North American applications
• REACH Regulation: No SVHC substances reported above threshold
• Product Class: A - Standard product, stock item
• WEEE Compliance: Take-back obligation applies

Motor Protection Benefits

• Prevents equipment damage from short-circuit conditions
• Protects against overcurrent in starter combinations
• Extends equipment life through precise protection
• Type E protection for complete motor control solution
• Magnetic trip elements for fast response to fault conditions
• Higher current rating (12.5A) for medium-power applications

Advanced Protection Features

• Magnetic Short-Circuit Protection: Fast response to fault conditions
• Starter Combination Design: Optimized for motor starter applications
• Type E Certification: Self-protected combination motor controller
• Higher Current Rating: 12.5A for medium-power motor applications
• Enhanced Breaking Capacity: Up to 100kA at 240V/400V
• Screw Terminal Technology: Proven connection reliability
• Standard Switching Capacity: Reliable operation across applications
