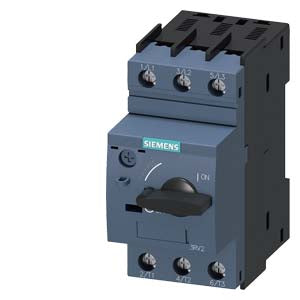

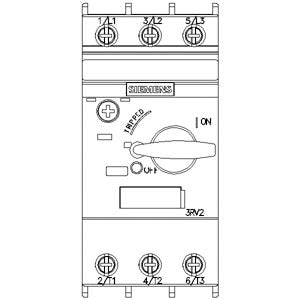

Siemens Circuit breaker for motor protection, screw, size S00 Part number 3RV2011-0EA10

Product Overview

The 3RV2011-0EA10 circuit breaker is designed for motor protection in size S00 applications, featuring CLASS 10 A-release protection with an adjustable current range of 0.28 to 0.4 A and N-release rated at 5.2 A. This SIRIUS 3RV2 motor starter protector provides comprehensive overload and short-circuit protection for low-current three-phase motors and electrical loads, incorporating screw terminal connections and standard switching capacity for reliable industrial motor control applications.

Key Features

• Current Range: 0.28 to 0.4 A adjustable overload release
• Protection Class: CLASS 10 tripping characteristic according to IEC 60947-4-1

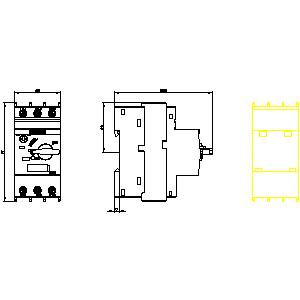

• Size: S00 (45mm width) for compact installations
• Short-Circuit Release: 5.2 A (N-release) factory-set
• Terminal Type: Screw terminals with M3 combination screws
• Switching Capacity: Standard switching capacity rating
• Phase Loss Protection: Built-in phase loss sensitivity
• Manual Operation: Rotary operating mechanism with integrated locking device
• Test Function: Built-in test slide for overload release verification
• Breaking Capacity: Up to 100 kA at 400 V AC
• Operating Temperature: -20°C to +60°C with temperature compensation
• Mounting: DIN rail or screw mounting options
• Weight: 0.617 lb (0.280 kg)
• Series: Advanced SIRIUS 3RV2 generation

Technical Specifications

• Frequency Rating: 50/60 Hz
• Rated Operational Voltage: Up to 690 V AC
• Poles: 3-pole configuration
• Tightening Torque: 0.8-1.2 Nm for screw terminals
• Conductor Cross-Section: 2 x (0.75...2.5) mm² maximum
• Breaking Capacity: Up to 100 kA short-circuit breaking capacity at 400 V AC
• Installation Altitude: Up to 2,000 m above sea level
• Degree of Protection: IP20 front face
• Connection System: Screw-type with up to two different conductor cross-sections
• Standards Compliance: IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• Lockout Capability: Padlock shackle diameter 3.5-4.5 mm
• Auxiliary Switch Compatible: Supports lateral and transverse auxiliary switches

Applications

The 3RV2011-0EA10 is suitable for protecting small three-phase motors and electrical loads in industrial automation applications where reliable overload and short-circuit protection is required for low motor currents between 0.28-0.4 A. It provides inverse time-delayed protection against overload conditions and instantaneous protection against short-circuits, making it ideal for small motor drives, instrumentation systems, automation equipment, precision machinery, conveyor systems, and SIRIUS modular system integration requiring size S00 protection for low-power motor applications.

Operation

When an overload occurs, the motor current rises above the set rated current, heating the integrated bimetal element and causing the device to trip through thermal-magnetic operation. For short-circuit conditions, the electromagnetic release provides instantaneous protection at 5.2 A. The rotary operating mechanism allows manual on/off operation with clear position indication and trip status display. The built-in test function enables verification of overload release operation without electrical load. After tripping, the device must be manually reset by moving the rotary switch to OFF position before reclosing.

Product Information

• Net Weight: 0.617 lb (0.280 kg)
• Packaging Dimensions: 1.929 x 4.016 x 4.016 inches
• EAN: 4011209712355
• UPC: 662643921489
• Country of Origin: Germany
• Product Class: Standard product, returnable

Compliance & Environmental

• RoHS Compliance: Yes (since 10/01/2009)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, EN 60947-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, EN 60947-4-1
