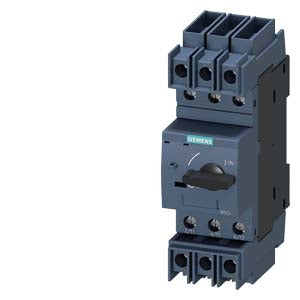

Siemens Circuit breaker for system protection, size S00, 130A Part number 3RV2711-1JD10

Product Overview

The SIRIUS 3RV2 circuit breaker is a compact, thermal-magnetic motor protection circuit breaker designed for system protection with full UL 489 and CSA C22.2 No. 5-02 approval. This frame size S00 circuit breaker features thermal overload release at 10A and short-circuit release at 130A with screw terminal connections and standard switching capacity.

Key Features

This circuit breaker is optimized for system protection according to UL 489/CSA C22.2 No. 5 standards for short-circuit protection of systems and loads in UL-configured plants. Features Class 10 thermal overload protection with rotary handle operation and high breaking capacity for reliable motor and system protection.

Technical Specifications

• Frame Size: S00
• Thermal Overload Release: 10A (fixed)
• Short-Circuit Release: 130A
• Number of Poles: 3-pole (3P3d)
• Rated Permanent Current: 10A
• Rated Voltage Range: 20-690V AC
• Operating Frequency: 50-60Hz
• Rated Insulation Voltage: 690V
• Rated Impulse Voltage: 6kV
• Connection Type: Screw-clamp terminals
• Control Element: Rotary knob/handle with ON/OFF operation
• Degree of Protection: IP20
• Weight: 0.522kg

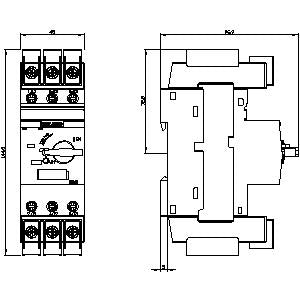

• Dimensions: 55 x 191 x 110mm

Breaking Capacity

• Ultimate Short-Circuit Breaking Capacity (Icu):
  • 100kA at 240V AC
  • 100kA at 400V AC
  • 42kA at 500V AC
  • 6kA at 690V AC
• Service Short-Circuit Breaking Capacity (Ics):
  • 100kA at 240V AC
  • 100kA at 400V AC
  • 42kA at 500V AC
  • 4kA at 690V AC
• UL/CSA Breaking Rating:
  • 65kA at 240V AC
  • 65kA at 480Y/277V AC
  • 10kA at 600V AC

Power Ratings

• 2.2kW at 230V AC
• 4kW at 400V AC
• 5.5kW at 500V AC
• 7.5kW at 690V AC

Approvals & Standards

• UL 489: Circuit breaker approval for system protection
• CSA C22.2 No. 5-02: Canadian standards approval
• IEC Standards: International electrotechnical compliance
• ATEX/IEC Ex: Suitable for hazardous area applications

Design & Construction

Features compact design with thermal-magnetic protection combining thermal overload and magnetic short-circuit protection. The device includes screw-clamp terminals for secure connections and rotary handle operation with lockout capability for safety.

Applications

This circuit breaker is designed for comprehensive system protection in industrial applications, including:

• Motor protection for IE3/IE4 motors up to 10A
• System protection in UL-configured plants
• Load feeder protection with high current requirements
• Short-circuit protection of starter combinations
• Plant and equipment protection systems
• Manual motor starter protector applications

Mounting & Installation

• Mounting: DIN rail mounting (45mm width)
• Installation: Fixed installation technology with snap-on capability
• Terminal Configuration: Screw-clamp connections for main circuit
• Wire Range: Standard industrial wire connections
• Auxiliary Contacts: No auxiliary contacts included

Compliance & Certifications

• Country of Origin: Germany
• EAN: 4011209767645
• RoHS Compliance: Since 01.10.2009
• WEEE Compliance: Yes
• REACH Regulation: Compliant with current substance restrictions
• Product Class: A: Standard stock item

Operating Characteristics

• Thermal Overload Class: Class 10
• Trip Characteristic: Thermal-magnetic protection
• Operating Temperature: -20°C to +60°C
• Humidity Tolerance: 10-95% relative humidity
• Vibration Resistance: Industrial grade construction
• Electrical Life: Extended operational cycles for reliable performance

Download existing graphical data for this product:

• Technical Datasheet (PDF)

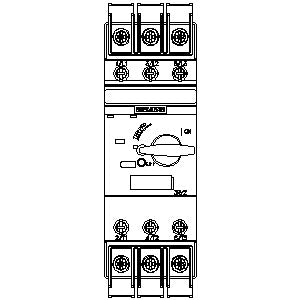

• CAD Models and Technical Drawings
