Description

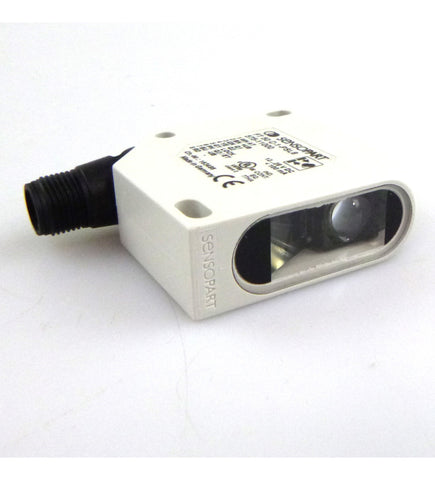

xThe FT 50 C-1-PSL8 is a colour sensor with three PNP switching outputs, used to detect and differentiate colours on target objects in automation and packaging applications. It connects via an M12, 8-pin plug and operates from a 12-28 VDC supply, with a switching frequency of 500 Hz. Housed in an ABS body with a PMMA front screen, it carries an IP67 rating and is suited to operation across -10°C to 55°C, making it appropriate for compact installation in industrial panel and machine environments.
Key specifications
- IP rating: IP67
- Operating voltage: 12 - 28 VDC
- Connection: Plug / M12 / 8-pin
- Output: 3 x PNP
Specifications
x| IP Rating | IP67 |
| Temperature: Operating / Dynamic | -10°C to 55°C |
| Material: Housing / Grip | ABS |
| Material: Front screen | PMMA |
| Part Depth (mm) | 50mm |
| Part Width (mm) | 17mm |
| Part Height (mm) | 50mm |
| Connection Type | Plug / M12 / 8-pin |
| Switching Output | 3 x PNP |
| Switching Frequency (Hz) | 500 Hz |
| Operating Voltage | 12 - 28 VDC |
