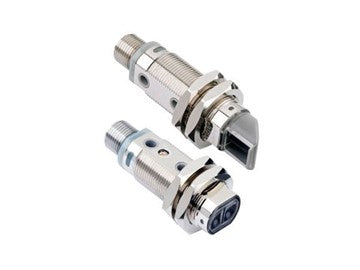

Sensopart FR 18-2 RM-PS-L4 Photoelectric retro-reflective sensor
View on Sensopart
Sensopart

Sensopart FR 18-2 RM-PS-L4 Photoelectric retro-reflective sensor Part number 741-11014

Rubicon Industrial Technology is the exclusive South African distributor for Sensopart.
Product Type Field Sensing & Connectivity
Category Sensors
Sub-category Photo Electric
Back Order
View Full Product Details on Sensopart 💬 Ask an Expert - Technical Support Available

Product Description

The FR 18-2 RM-PS-L4 is a retro-reflective photoelectric sensor with a brass, nickel-plated housing and a PMMA front screen, rated IP67 for use in demanding industrial environments. It detects objects at operating distances of up to 3000mm and provides a PNP switching output with a switching frequency of up to 1000Hz, operating from a 10-30 VDC supply. Connection is made via an M12, 4-pin metal plug, and the sensor includes a red LED interface for status indication. Its compact housing suits mounting in automation panels and machinery where reliable object detection is required.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 30 VDC
  • Connection: Metal plug / M12 / 4-pin
  • Output: PNP

Technical Specifications

IP RatingIP67
Temperature: Operating / Dynamic-25°C to 50°C
Material: Housing / GripBrass / Nickel-plated
Material: Front screenPMMA
Part Width (mm)16.7mm
Part Length (mm)54mm
Weight (g)34g - 36g (plug device) / 74g - 76g (cable device)
Connection TypeMetal plug / M12 / 4-pin
Tightening Torque3 Nm
Rated Operating Distance (mm)0 - 3000mm
Switching OutputPNP
Switching Frequency (Hz)≤ 1000Hz
Operating Voltage 10 - 30 VDC
InterfaceLED, red
View complete specifications on Sensopart
