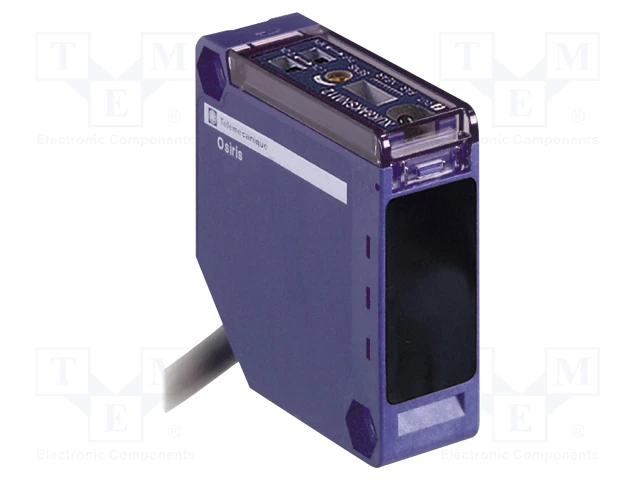

Schneider Photo-electric sensor, PNP/NPN, 1NO + 1NC Part number XUK8AKSNM12

This photo-electric sensor detects the presence or absence of objects using a light beam, providing a PNP/NPN output configuration with 1NO + 1NC contacts for flexible integration into control circuits. It is used in automation systems for object detection tasks such as part counting, position sensing and presence verification on...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This photo-electric sensor detects the presence or absence of objects using a light beam, providing a PNP/NPN output configuration with 1NO + 1NC contacts for flexible integration into control circuits. It is used in automation systems for object detection tasks such as part counting, position sensing and presence verification on machinery and conveyor lines. The dual output arrangement allows the sensor to interface with different controller logic types within the same panel design.

Specifications
Specifications
x
Product data sheetXUK8AKSNM12
Enclosure materialPC
Lens materialPMMA
Maximum sensing distance1 m diffuse with background suppression
Minimum object diameter fordetection 2 mm
Output typeSolid state
Wire insulation materialPVC
Status LED1 LED (yellow) for output state 1 LED (green) for supply
[Us] rated supply voltage12...24 V DC with reverse polarity protection
Supply voltage limits10…36 V DC
Switching capacity in mA<= 100 mA (overload and short-circuit protection)
Switching frequency<= 250 Hz
Maximum voltage drop<1.5 V (closed state)
Current consumption<= 30 mA no-load
Maximum delay first up300 ms
Maximum delay response2 ms
Maximum delay recovery2 ms
Setting-upSensitivity adjustment by potentiometer
Depth50 mm
Height50 mm
Width18 mm
Net weight0.035 kg
Kit compositionWith XUZA51 bracket fixing
Dec 19, 20241
Product certificationsCE[RETURN]Ecolab
Ambient air temperature for operation-20…60 °C
Ambient air temperature for storage-30…70 °C
Vibration resistance7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protectionIP65 double insulation conforming to IEC 60529
Packaging without single use plasticNo
Packaging made with recycledcardboard No
SCIP NumberC7e9a64a-7547-4475-a4ad-f104e30caf79
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height4.0 cm
Package 1 Width6.0 cm
Package 1 Length10.0 cm
Package 1 Weight126.0 g
Unit Type of Package 2S02
Number of Units in Package 230
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.265 kg
